Creating 3D Scenes: The Bowling Alley

Topics Covered in This Cinema 4D Tutorial:

Creating Models, Texturing, Lighting

Exercise Preview

Exercise Overview

In this comprehensive exercise, you'll master the fundamentals of 3D scene creation by building a photorealistic bowling alley environment. This project combines essential Cinema 4D techniques including parametric modeling, advanced texturing workflows, and professional lighting setups that mirror real-world production standards.

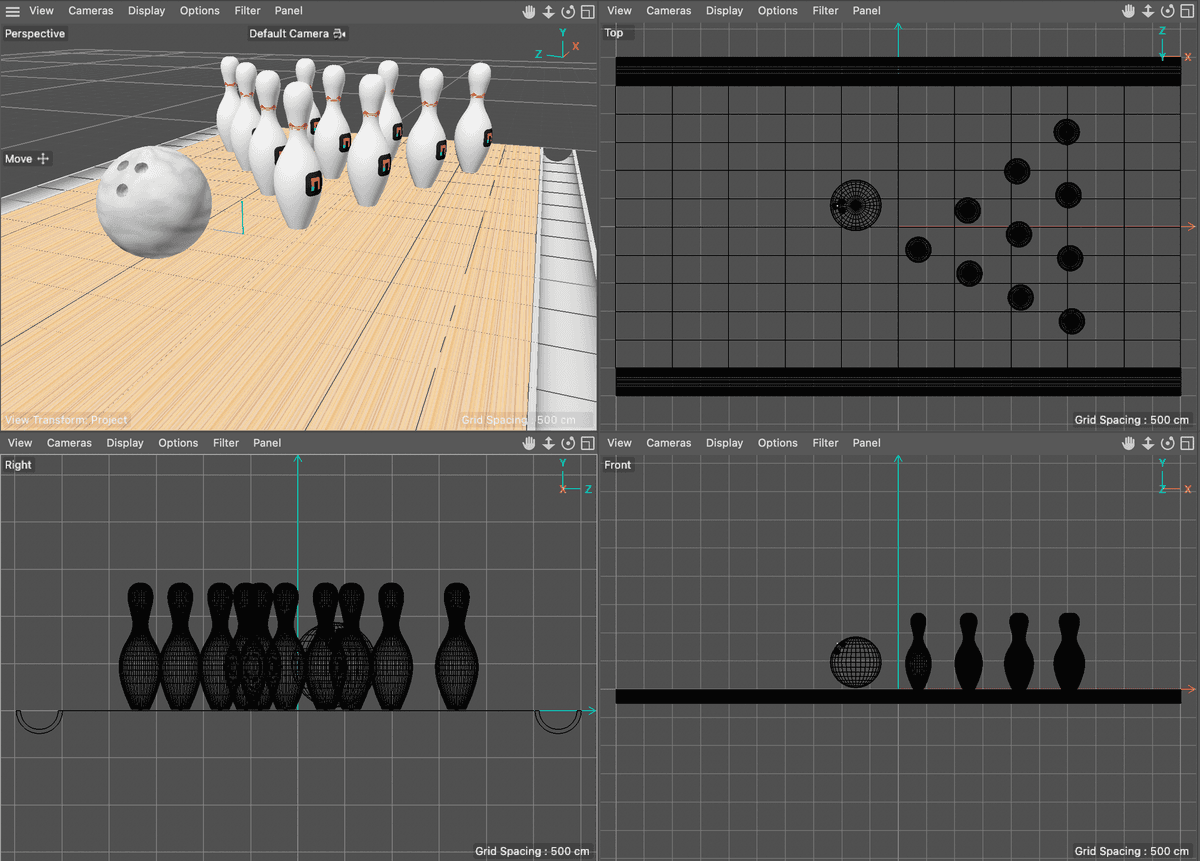

Previewing the Final Image

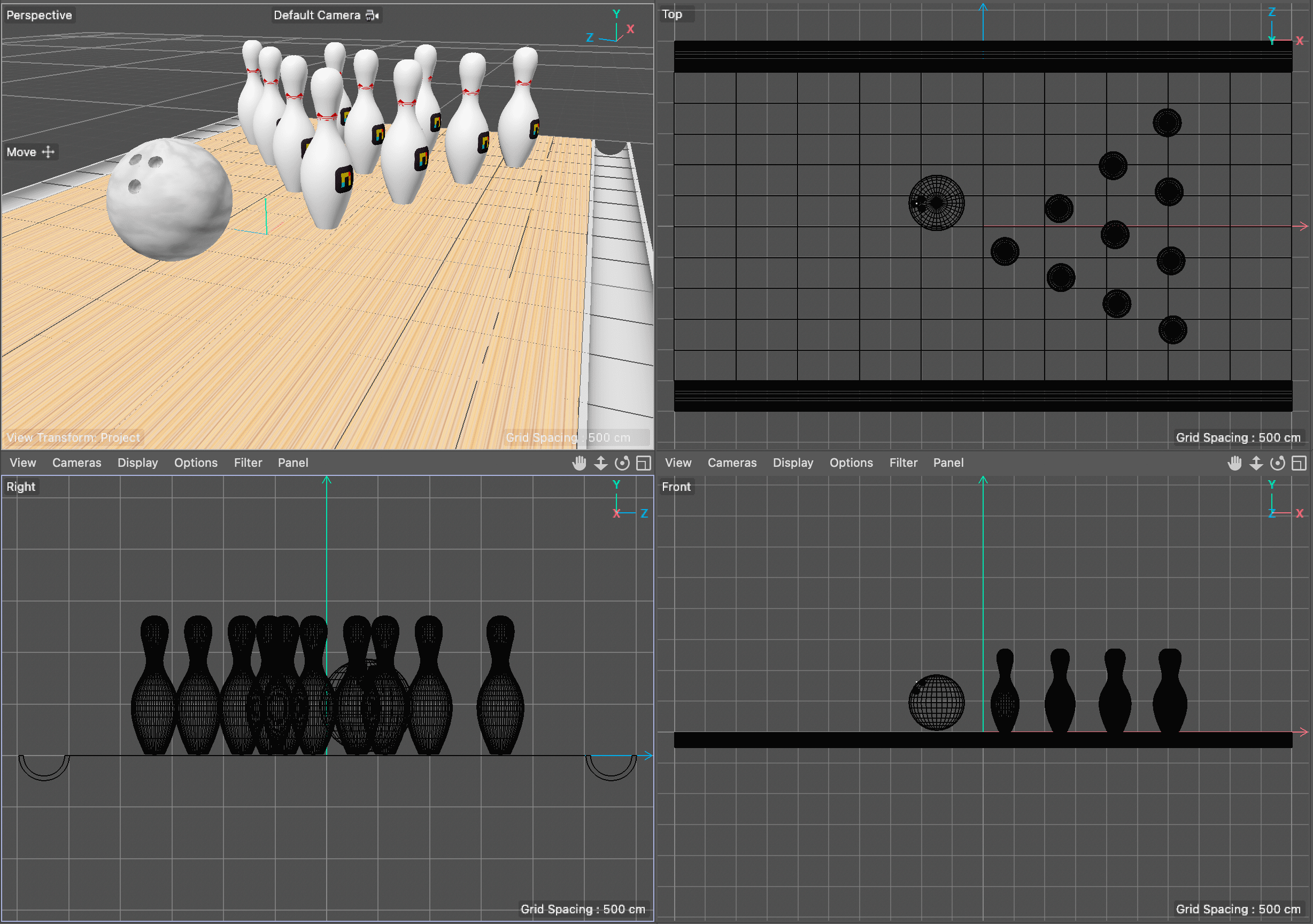

1. Let's examine the final result you'll be creating. If you're currently working in Cinema 4D Lite, keep the application open but switch to your Desktop to access the preview files.

2. Navigate to Class Files > C4D in AE Class > Bowling Alley > Preview Movie and double-click Bowling Alley—with Shadows.png to open the reference image.

3. Study the composition carefully and note the following key elements:

   • The scene features multiple bowling pins, each displaying the Noble Desktop logo with realistic surface materials and proper UV mapping.
   • A single bowling ball provides visual contrast and helps establish scale within the scene.
   • Professional lighting creates realistic shadows and depth, demonstrating industry-standard rendering techniques.

4. Close the preview image once you've familiarized yourself with the target result.

Getting Started

Before diving into modeling, we'll establish a proper project structure and workspace configuration—essential practices for any professional 3D workflow.

1. Launch Cinema 4D Lite if it's not already running on your system.

2. If the Quick Start Dialog appears upon opening, close it to access the main interface.

3. Save any existing work by choosing File > Save before proceeding.

4. Clear your workspace by selecting File > Close All Projects.

5. Create a new project file by choosing File > Save Project As

6. Navigate to the designated project folder: C4D in AE Class > Bowling Alley

7. Name your file Your Name—Bowling Alley.c4d following professional naming conventions.

8. Click Save to establish your project foundation.

Setting Output Size

Professional 3D work requires precise render specifications from the project's inception. Cinema 4D's render settings control output resolution, frame rates, and quality parameters that directly impact your final deliverables.

1. Access the render configuration by clicking the Edit Render Settings button, or navigate through Render > Edit Render Settings.

2. In the Output section, change the preset to HDTV 1080 29.97 to match broadcast television standards.

3. Close the Render Settings dialog to apply your changes.

4. Configure the timeline duration in the time controls:

   • Click in the end timecode field and enter 15 frames.
   • Press Return (Mac) or Enter (Windows) to confirm the timeline length.

5. Save your progress using Cmd–S (Mac) or Ctrl–S (Windows), or select File > Save Project.

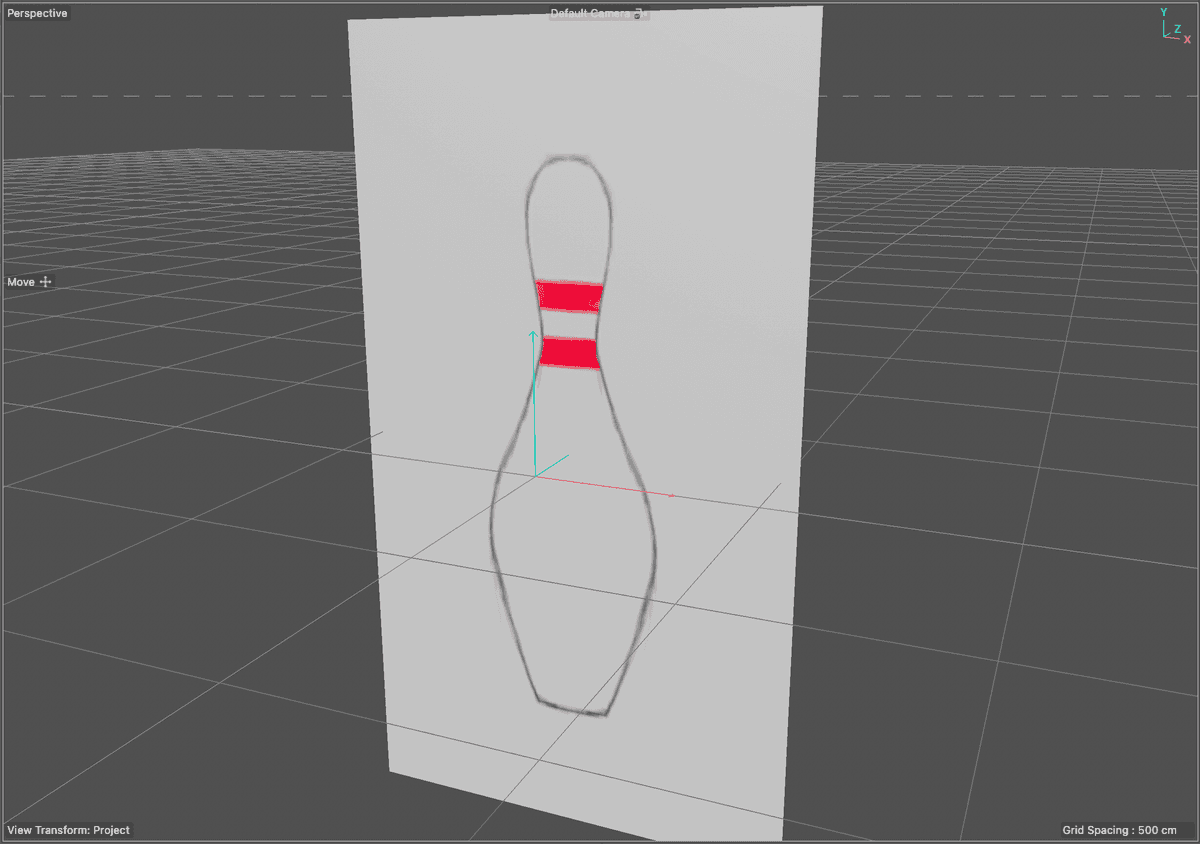

Creating a Reference for Modeling

Professional 3D artists rely on reference materials to achieve accurate proportions and realistic details. By importing reference images directly into your 3D workspace, you can model with precision while maintaining visual accuracy throughout the creation process.

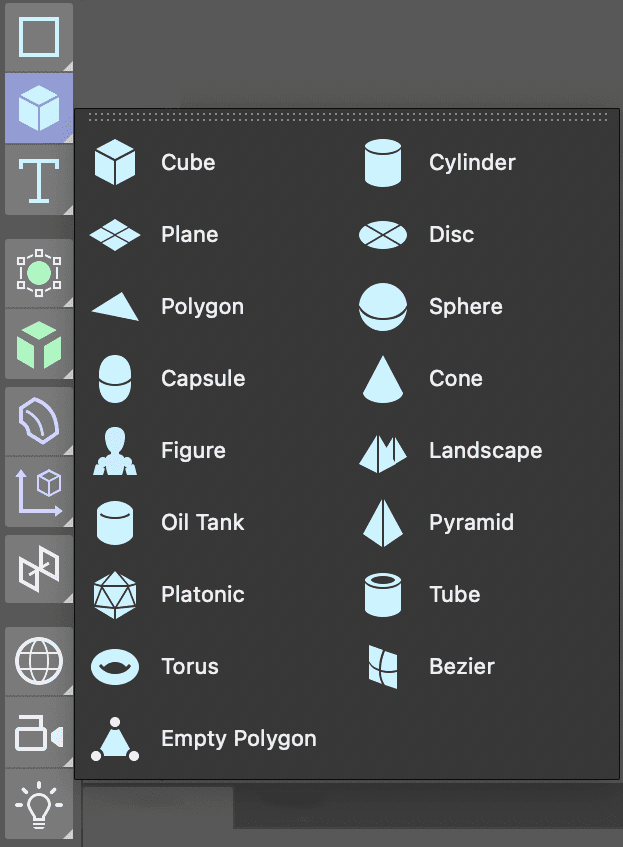

1. Access Cinema 4D's primitive objects by pressing and holding the Cube button in the Create Menu to reveal additional geometric shapes.



2. Select the Plane object, which will serve as your reference image carrier.

3. In the Perspective viewport, click the Toggle Active View button to display all four viewport configurations simultaneously.

4. Double-click the Plane object in the Object Manager and rename it Model Reference for clear project organization.

5. With the Model Reference selected, click the Coord. tab in the Attribute Manager to access transformation controls.

6. Rotate the plane to face forward in the front viewport, positioning it optimally for front-view modeling workflows.

7. Switch to the Object tab in the Attribute Manager and configure the plane dimensions:

   • Width: 1080 pixels
   • Height: 1920 pixels

   Note: These dimensions (1080 × 1920) match our reference image's native resolution, ensuring accurate scale representation without distortion.

8. Frame the geometry properly in each viewport:

   • Click in the Front view and press H or choose View > Frame Geometry.
   • Repeat this process for all remaining viewports to maintain consistent visibility.

9. Enable texture preview in the Front viewport by selecting Display > Gouraud Shading. This viewport mode will display applied textures in real-time.

10. Open the Material Manager to begin texture workflow setup.

11. Create a new material by clicking the New Default Material button.

12. Rename the material by double-clicking its name and typing Model Reference.

    • Press Return (Mac) or Enter (Windows) to confirm the name change.

13. Double-click the material's icon to launch the Material Editor.

14. Disable the Reflectance channel to prevent unwanted surface reflections on your reference plane.

15. Activate the Color channel and prepare to load your reference image.

16. Click the texture dropdown arrow and select Load Image to import external graphics.

17. Navigate to C4D in AE Class > Bowling Alley > Media > references in your project directory.

18. Double-click Bowling Pin.png to import the reference image.

    When prompted about copying the file, click No. Cinema 4D offers to copy external assets to your project folder, helping maintain organized file structures and preventing missing texture issues during collaboration or project archiving.

19. Close the Material Editor to return to the main interface.

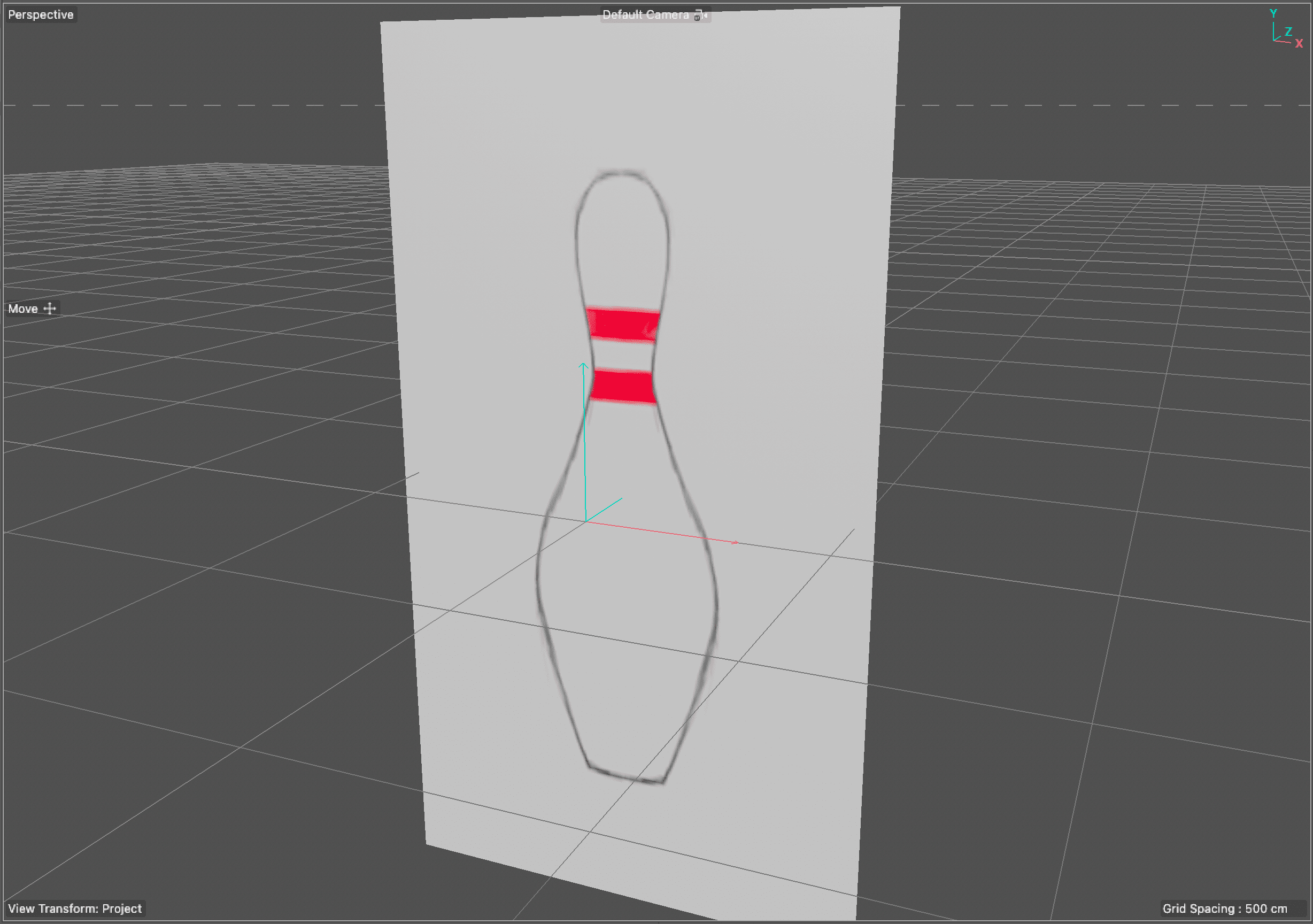

20. Apply the material by dragging it from the Material Manager onto the Model Reference plane in the Object Manager.

21. Close the Material Manager to maximize viewport space.

22. Select the Model Reference object and access the Coord. tab in the Attribute Manager.

23. Set the P.Z attribute to 100 to position the reference plane behind the default object creation point, facilitating easier tracing workflows.

24. Maximize the Front viewport by clicking the Toggle Active View button. Front-view modeling provides the most accurate control for symmetrical objects.

25. Organize your reference using Cinema 4D's layer system:

    • Ctrl-click (Mac) or Right-click (Windows) on the Model Reference object.
    • Select Add to New Layer. Notice the layer indicator appears next to the object name.

26. Configure the new layer in the Layer Manager:

    • Double-click the layer and rename it Reference.
    • Click the lock icon under the L column to prevent accidental modifications.

    Note: Layer controls include Solo (S), Visibility (V), and Lock (L) functions. Access the View menu in the Layer Manager for complete control descriptions.

27. Return to the Attribute Manager to access layer properties when needed.

28. Save your project progress using Cmd–S (Mac) or Ctrl–S (Windows).

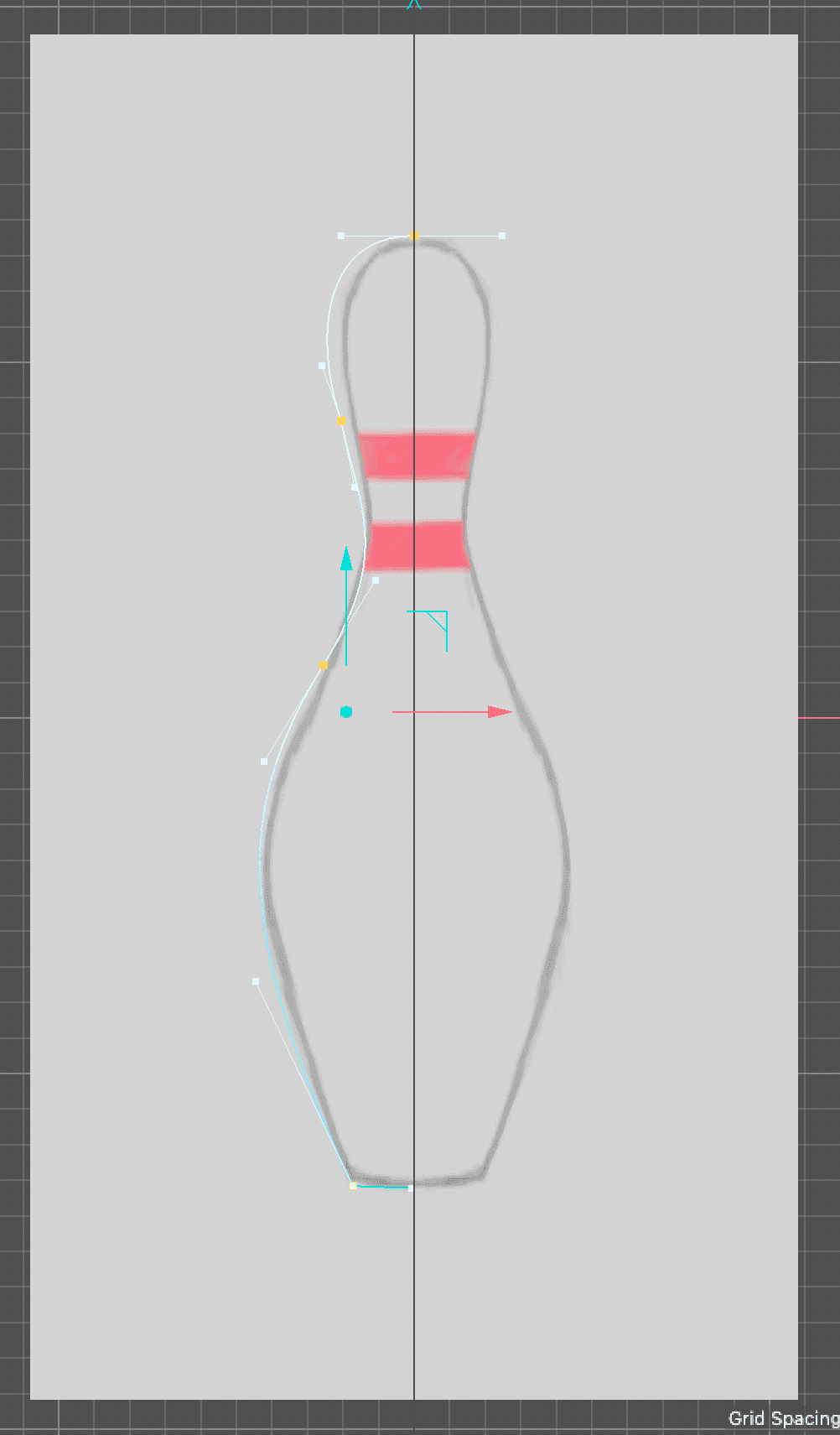

Creating a Bowling Pin with a Lathe

The Lathe tool represents one of 3D modeling's most powerful techniques for creating rotationally symmetrical objects. This parametric modeling approach—used extensively in product design, architectural visualization, and character modeling—generates complex 3D geometry from simple 2D profiles. Professional artists leverage lathe operations for everything from industrial components to organic forms like vases, bottles, and architectural elements.

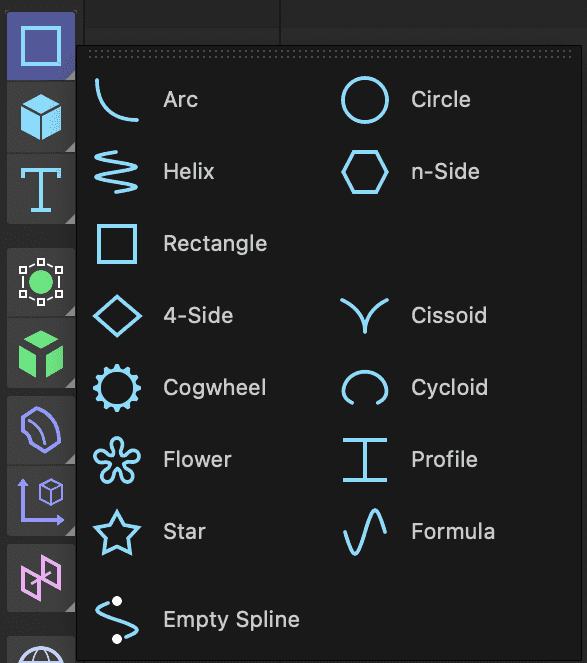

1. Activate the Spline Pen tool from the left toolbar to begin profile creation.

2. Adjust your Front viewport navigation to clearly see the bowling pin reference image at a comfortable working scale.

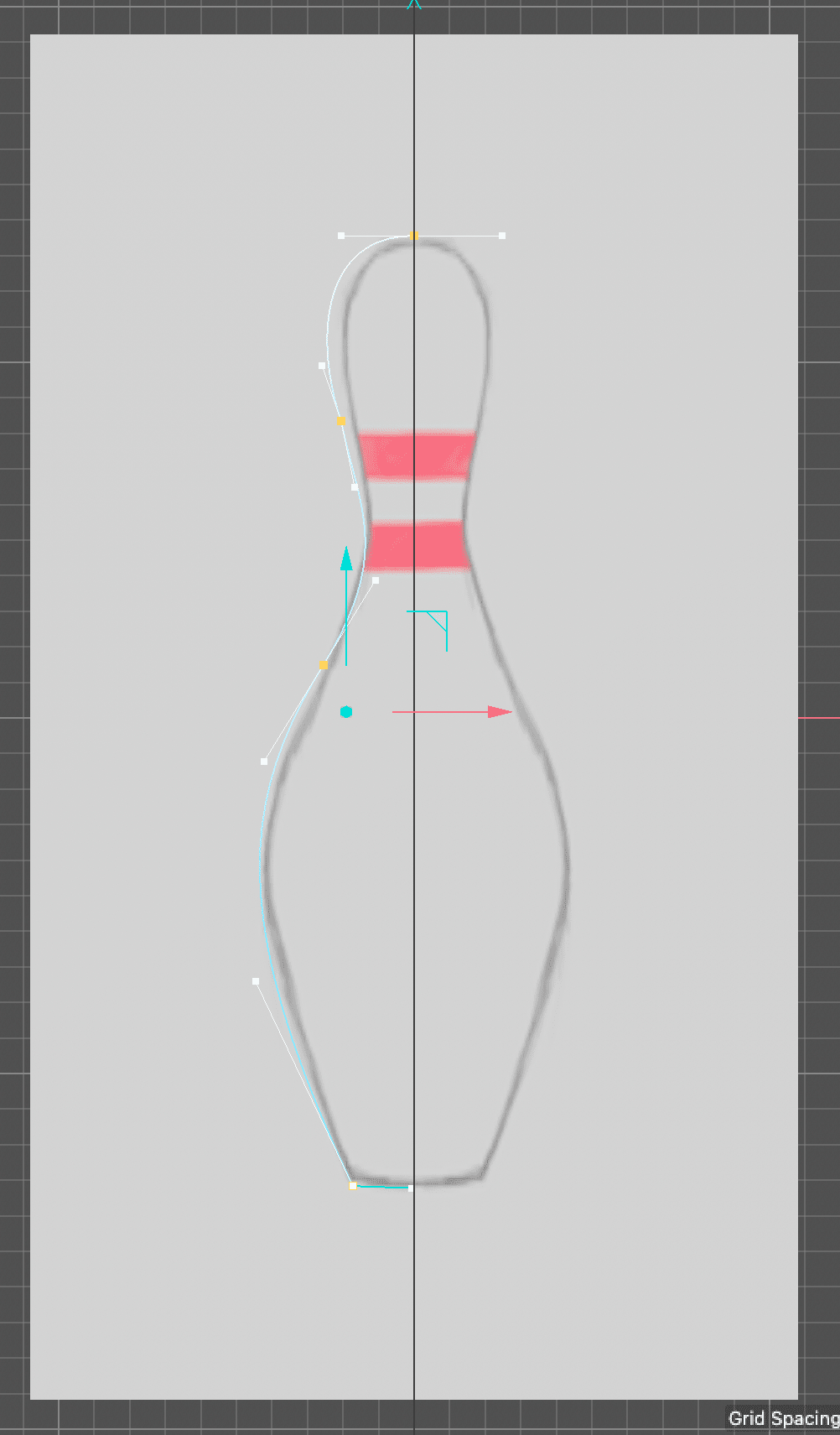

3. Create the bowling pin's profile by clicking to place points along the reference contour. Focus on capturing the major shape transitions—the base, body taper, neck constriction, and crown expansion.

4. Press Esc to complete the spline path and finalize your profile shape.

5. Press the Spacebar to return to the Live Selection tool for point editing.

6. Select vertices that require smooth transitions from angular corners to curved surfaces—typically at the neck and crown areas.

7. Ctrl-click (Mac) or Right-click (Windows) on selected vertices and choose Soft Interpolation to convert hard corners to smooth curves.

8. Press E to activate the Move tool for precise adjustments.

9. Fine-tune the profile by adjusting vertex positions and manipulating tangent handles until your spline closely matches the reference contour.

   Pro Tip: Hold Shift while dragging tangent handles to break tangent symmetry for more complex curve control. Delete unwanted vertices using Delete (Mac) or Backspace (Windows).

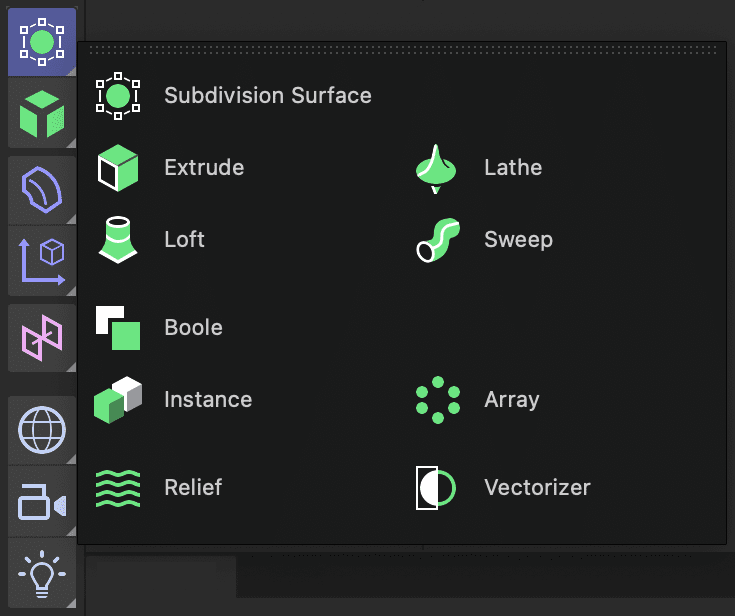

10. Access the Lathe generator by long-pressing the Subdivision Surface button in the Create menu and selecting Lathe.

11. Create the 3D bowling pin by dragging your profile spline into the Lathe object as a child in the Object Manager.

12. Rename the lathe object to Bowling Pin for clear project organization.

13. Save your modeling progress with Cmd–S (Mac) or Ctrl–S (Windows).

Adding Images As Textures

Cinema 4D's material system provides industry-standard texturing capabilities that rival dedicated compositing applications. The Material Manager serves as your texture library, while the Material Editor offers advanced shader controls, procedural textures, and realistic surface properties essential for professional visualization work. Cinema 4D's material workflow integrates seamlessly with modern production pipelines, supporting industry-standard formats and color management systems.

1. Open the Material Manager to access your project's texture library.

2. Create three new materials by clicking the New Default Material button three times.

3. Rename the materials using professional naming conventions:

   • Pin Base (for the main bowling pin body)
   • Pin Crown (for the neck area decoration)
   • Noble Logo (for the branded element)

4. Double-click the Pin Crown material icon to launch the Material Editor.

5. Ensure the Color channel is active to load your base texture.

6. Click the texture dropdown arrow and select Load Image to import external graphics.

7. Navigate to C4D in AE Class > Bowling Alley > Media > mats in your project directory.

8. Double-click Bowling Pin Skin.psd to import the surface texture.

   Click No when prompted about file copying. This maintains your existing file organization while ensuring texture accessibility.

9. Select the Noble Logo material in the Material Manager to configure the branding element.

10. With the Color channel active, load the logo texture using the same process.

11. Navigate to the materials folder and double-click Noble Icon.psd.

12. Again, click No when prompted about file location to maintain project structure.

13. Close the Material Editor to return to the main workspace.

14. Save your material configuration progress using Cmd–S (Mac) or Ctrl–S (Windows).

Controlling Textures on 3D Objects

Professional 3D workflows often require multiple materials on single objects to achieve realistic surface details. Cinema 4D's material tag system provides precise control over texture placement, projection methods, and surface blending—techniques essential for product visualization, architectural rendering, and character texturing.

1. Apply materials to your bowling pin by dragging both the Pin Base and Pin Crown textures onto the Bowling Pin lathe object in the specified order. This creates individual material tags for precise control.

2. Select the Pin Crown material tag in the Object Manager to access its projection settings.

3. In the Attribute Manager, change the Projection type to Cylindrical to properly wrap the texture around the pin's cylindrical form.

4. Disable the Tile option to prevent texture repetition across the surface.

5. Adjust the Offset V attribute to position the crown texture precisely on the bowling pin's neck area (the narrowest section).

6. Save your texture positioning work using Cmd–S (Mac) or Ctrl–S (Windows).

Making a Material Transparent with an Alpha Channel

Alpha channels represent a fundamental concept in digital imaging and 3D rendering, controlling pixel-level transparency for sophisticated compositing effects. In professional 3D production, alpha channels enable complex material layering, decal application, and realistic surface details like weathering, labels, and worn areas. This technique is extensively used in product visualization, where brand elements must appear naturally integrated with underlying surfaces.

1. Double-click the Pin Crown material in the Material Manager to access the Material Editor.

2. Enable transparency by clicking the Alpha channel checkbox, then clicking the channel name to access its properties.

3. Ensure the Image Alpha option is enabled to use the texture's embedded transparency information.

4. Load the alpha texture by clicking the texture dropdown and selecting Bitmaps > Bowling Pin Skin.psd from the available textures.

5. Configure the Noble Logo material's transparency using the same process:

   • Click the Noble Logo material to make it active.
   • Enable and configure the Alpha channel with Image Alpha active.
   • Load Bitmaps > Noble Icon.psd for the alpha texture.

6. Set up the base pin material by selecting Pin Base and configuring its Color channel to display pure white, providing a clean foundation for the overlaying textures.

7. Close the Material Editor to return to the main workspace.

8. Save your alpha channel configuration using Cmd–S (Mac) or Ctrl–S (Windows).

Adding Another Material to an Object

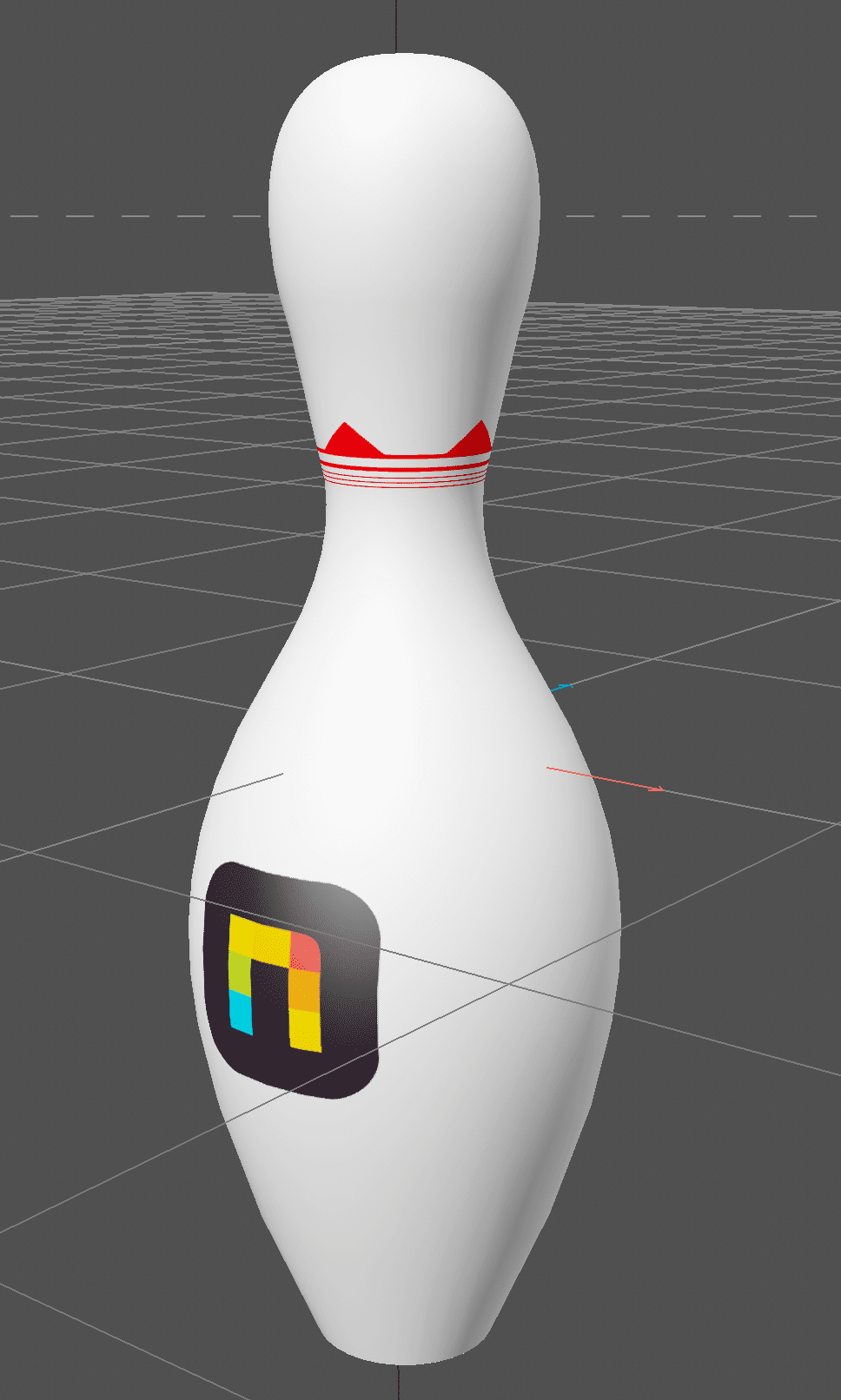

1. Apply the logo element by dragging the Noble Logo material onto the Bowling Pin lathe object, creating an additional material tag for precise branding control.

2. Close the Material Manager to maximize your viewport working area.

3. Select the Noble Logo material tag in the Object Manager to access its positioning controls.

4. Disable the Tile option to ensure single-instance logo placement.

5. Experiment with different Projection methods to achieve optimal logo appearance. Both Flat and Cylindrical projections offer distinct visual results depending on surface curvature.

6. Fine-tune the logo size using the Length U and Length V parameters to achieve professional proportions.

7. Position the logo precisely using Offset U and Offset V controls for optimal visual impact.

   Pro Tip: Switch to Texture mode for interactive logo positioning using Cinema 4D's standard Move, Rotate, and Scale transformation tools.



8. Save your logo positioning work using Cmd–S (Mac) or Ctrl–S (Windows).

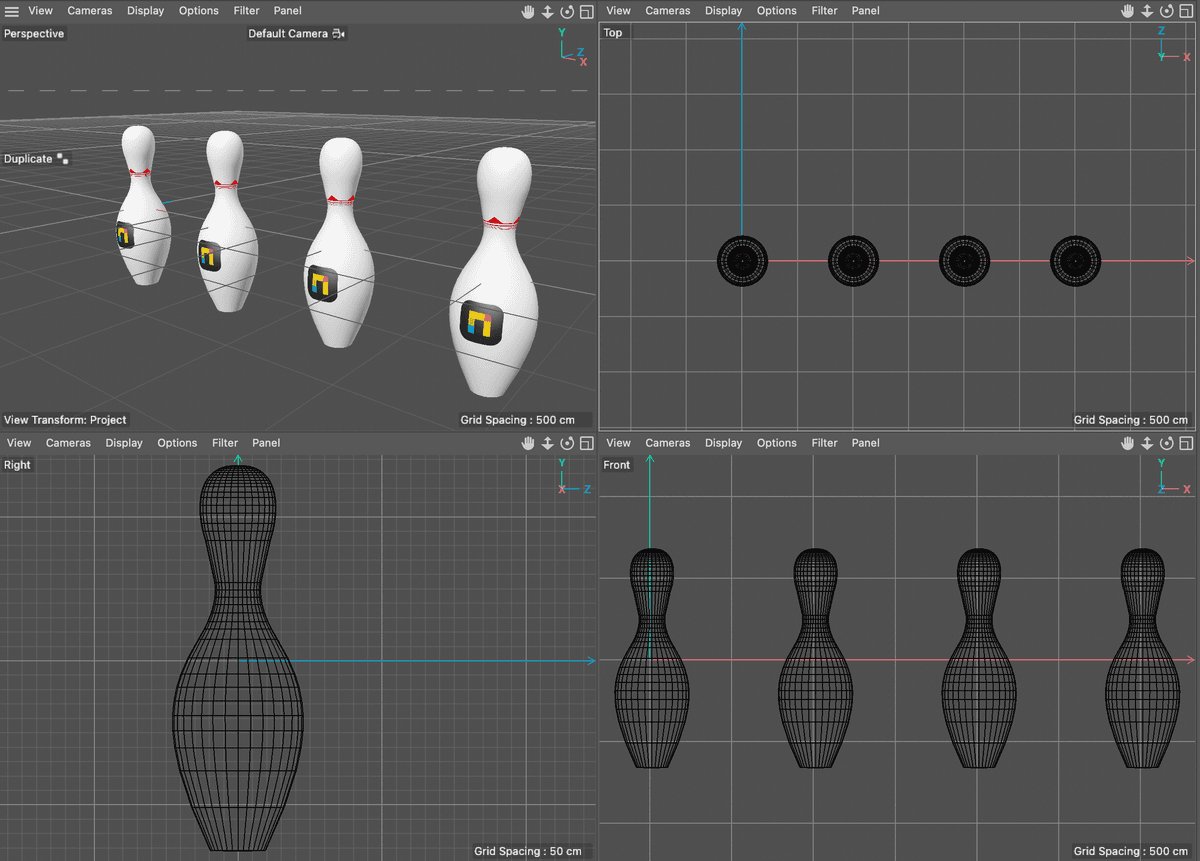

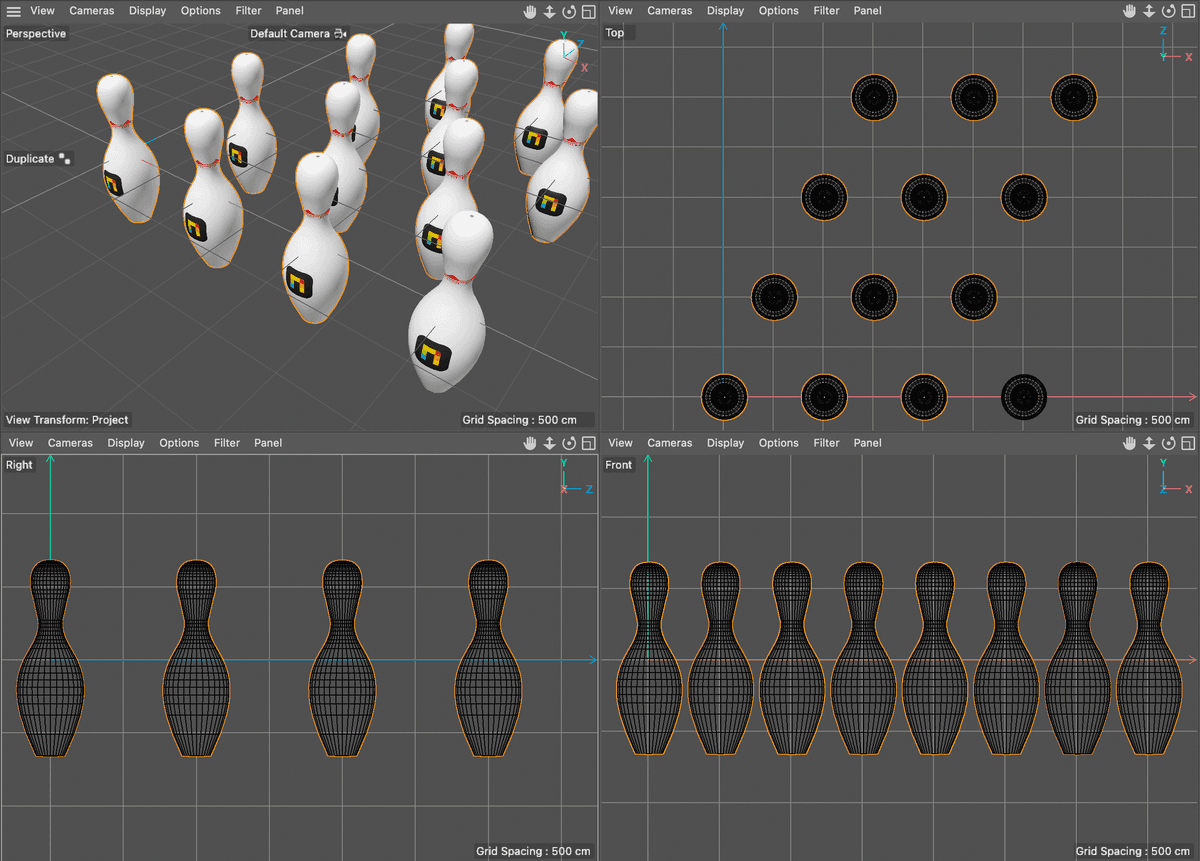

Duplicating Objects

Object duplication and instancing represent core techniques in professional 3D production workflows. Cinema 4D's duplication tools enable rapid scene population while maintaining parametric relationships between source objects and their copies. This approach proves essential for architectural visualization, product arrays, and any scenario requiring multiple identical elements with consistent material properties and geometric accuracy.

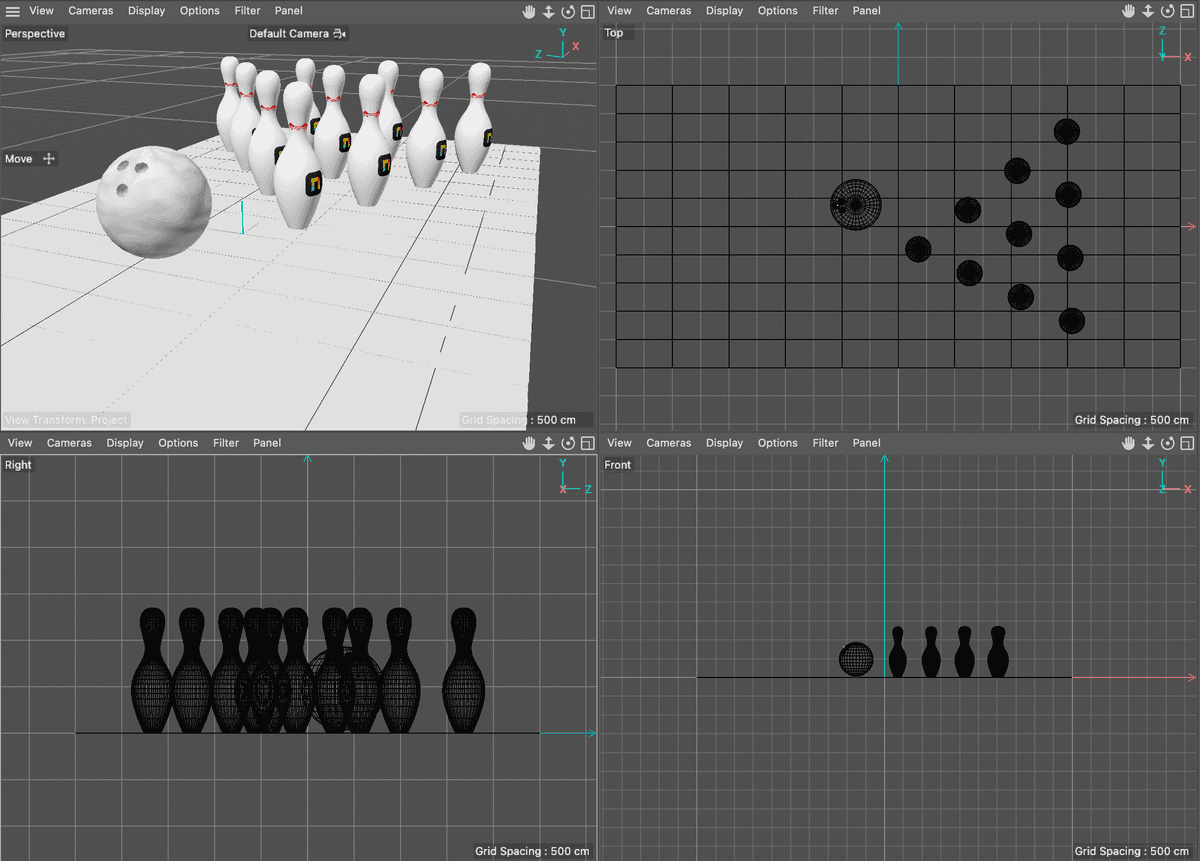

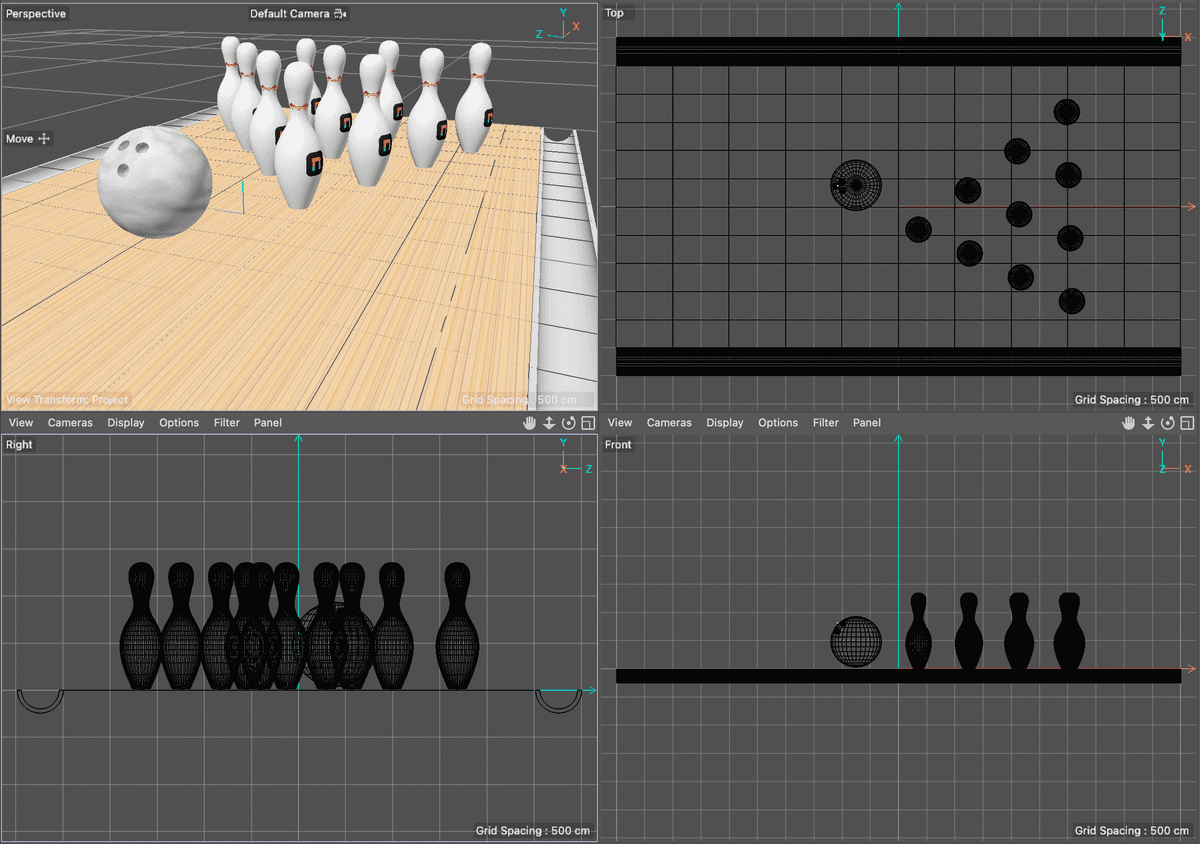

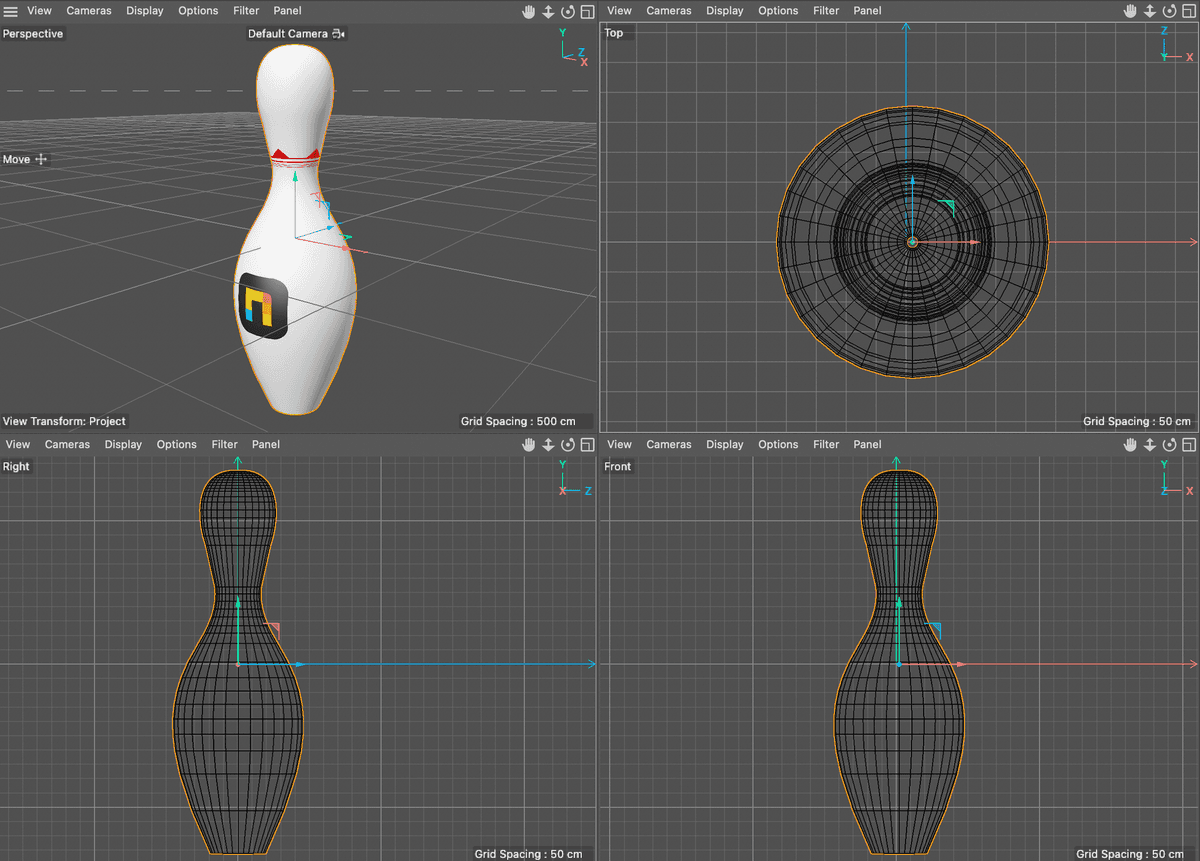

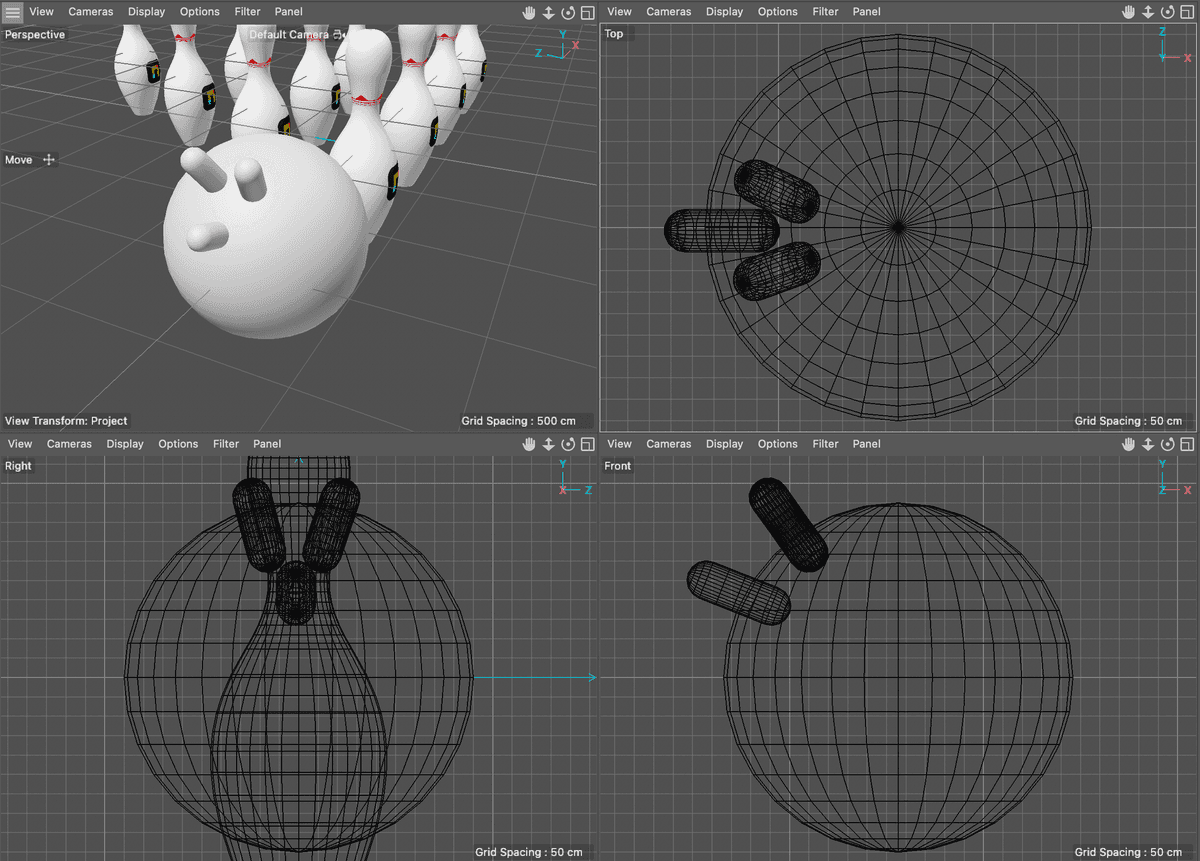

1. Switch to the comprehensive four-viewport layout by selecting Panel > Arrangement > 4 Views if not already active.

   Verify that your viewports display the standard configuration: Perspective, Top, Right, and Front views for optimal spatial awareness.
