Zooming, Panning, & Navigation Part 2

Master AutoCAD navigation tools and drawing techniques

Core AutoCAD Navigation Methods

Mouse Wheel Controls

Essential for zooming and panning operations. Provides quick navigation without accessing menu commands.

Navigation Bar Tools

Comprehensive set of view controls including zoom options and pan tools for precise drawing work.

View Cube Interface

3D navigation control that allows switching between different viewing angles and perspectives easily.

Topics Covered in This AutoCAD Tutorial:

Master essential navigation techniques using the Mouse Wheel and Navigation Bar to enhance your drafting efficiency and precision.

Mouse Wheel Navigation Sequence

1

Zoom with Wheel Turn

Turn the mouse wheel to zoom in on specific objects like trees in the drawing for detailed work

2

Pan by Wheel Press

Press down and hold the mouse wheel to activate pan mode and move between different areas

3

Zoom Extents Quick Access

Double-click the mouse wheel to instantly fit all drawing objects within the screen view

Navigation During Active Commands

You can use mouse wheel navigation while drawing commands like Line are still active, allowing seamless workflow without interrupting your current operation.

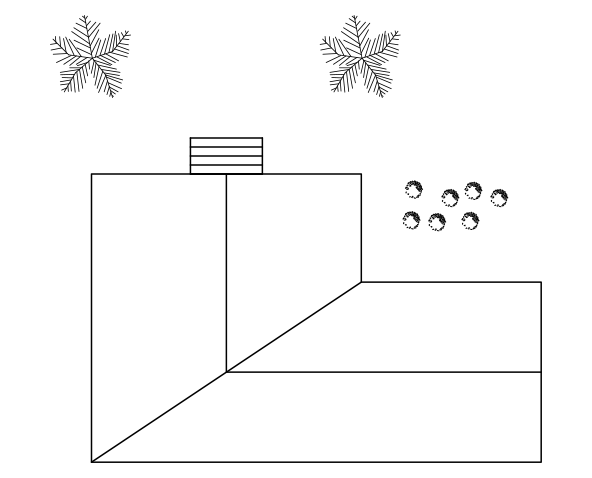

Exercise Preview

ex preview clubhouse zoom

This hands-on exercise will build your foundational navigation skills while introducing you to AutoCAD's intelligent snapping system. You'll work with a clubhouse drawing to practice zoom, pan, and basic line drawing techniques that form the backbone of professional CAD work.

  1. Open the file Clubhouse Zoom.dwg to begin this navigation exercise.

  2. Practice dynamic zoom and pan operations by turning the mouse wheel to zoom in on one of the two trees positioned in front of the clubhouse. Next, press and hold the mouse wheel button to activate the pan function, then drag to navigate smoothly to the other tree. This click-and-drag panning technique is essential for efficient drawing navigation. Complete this sequence by double-clicking the mouse wheel to execute Zoom Extents, which automatically scales and centers all drawing objects to fill your viewport—a crucial command for maintaining drawing overview.

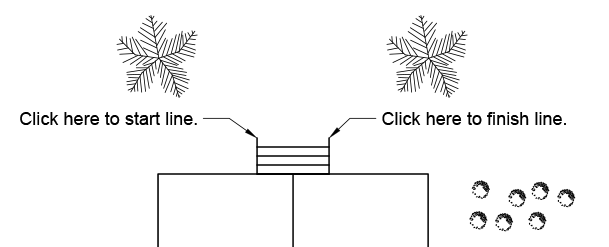

  3. Now you'll combine navigation with precise drafting techniques. Initiate the Line command using the keyboard shortcut L, then press Enter to confirm. Use the mouse wheel to zoom in on the upper-right corner of the incomplete steps, maintaining the active Line command state. Click on the point specified in the diagram below to establish your line's start point. Notice how AutoCAD's intelligent endpoint snap symbol appears automatically—this object snap system ensures precision without manual input and represents one of AutoCAD's most powerful accuracy features. While the Line command remains active, press and hold the mouse wheel to pan right to locate the designated endpoint shown in the diagram. Upon releasing the mouse wheel, observe how the cursor transitions from the hand pan icon back to crosshairs, indicating you're ready to continue drawing. The Line tool line tool button remains active throughout this process. Click the second point specified in the diagram to complete the step geometry, again noting the endpoint snap icon's appearance for precision confirmation. Press Enter to terminate the Line command.

    clubhouse zoom draw lines

  4. Explore AutoCAD's command history functionality by undoing the line you just created using Ctrl+Z or the Undo command. Double-click the mouse wheel again to activate Zoom Extents. Here's an important behavior to understand: because Zoom Extents recalculates the display based on existing geometry, the undone line will not reappear even if you use the Redo function. This is normal AutoCAD behavior—you would need to redraw the line completely. This demonstrates why understanding your drawing's current state is crucial for efficient workflow management.

  5. Transition into 3D navigation by clicking and dragging the View Cube to rotate away from the standard top-down (plan) view. This dynamic 3D navigation tool allows intuitive view manipulation even in predominantly 2D workflows. To return to your working view, click the Top face of the View Cube, or alternatively use the Undo command to revert to the plan view that's standard for 2D drafting work.

  6. Delve into coordinate system management by clicking directly on the UCS Icon UCS icon to select it, then dragging it to a different location. This action relocates the User Coordinate System, effectively shifting your XY reference plane—a powerful feature for complex geometric construction. To restore the default coordinate system, access the UCS menu located below the View Cube and select WCS (World Coordinate System) to return to the standard origin point. For workflow efficiency, execute the UCSICON command, then type S and press Enter to access the Selectable option. Type N and press Enter to disable selection, preventing accidental UCS manipulation during routine drafting operations.

  7. Customize your interface for optimal productivity by navigating to the View tab on the Ribbon interface. Here you can toggle the View Cube and Navigation Bar visibility using their respective buttons. Many experienced 2D drafters prefer disabling these elements when working exclusively with mouse navigation, as this maximizes drawing space and reduces visual clutter. Important note: View Cube visibility settings are drawing-specific, meaning your preference in one file won't automatically apply to others. Most exercise files in this tutorial series were saved with the View Cube disabled to provide you with maximum workspace from the moment you open each file.

Essential Navigation Tasks

0/5

View Cube Usage in 2D vs 3D

Pros
Provides quick angle adjustments for better perspective
Easy return to standard views like Top view
Visual reference for current viewing orientation
Cons
May clutter interface during 2D drafting work
Not essential when working primarily with mouse navigation
Settings only apply to current drawing file
UCS Icon Movement Precaution

Moving the UCS Icon shifts the XY Plane coordinate system. Always reset to WCS (World Coordinate System) when working on standard 2D drawings to avoid coordinate confusion.

UCS Icon Control Process

1

Select and Move Icon

Click on UCS Icon to select it and move to different location to shift XY Plane

2

Reset to Default WCS

Use UCS menu below View Cube and select WCS to revert to default coordinate system

3

Disable Icon Selection

Run UCSICON command with Selectable option set to No to prevent accidental movement

Zoom Extents and Undo Behavior

When you use Zoom Extents after undoing a line, the undone line will not reappear when you Redo because the view has been recalculated. You will need to redraw the line instead.

Key Takeaways

1Mouse wheel provides three essential navigation functions: turn to zoom, press-hold to pan, and double-click for Zoom Extents
2Navigation tools remain active during drawing commands, allowing seamless movement while maintaining command state
3View Cube enables 3D perspective changes but can be turned off for dedicated 2D work to reduce interface clutter
4UCS Icon movement changes the coordinate system origin point and should be reset to WCS for standard 2D drafting
5UCSICON command with Selectable option set to No prevents accidental coordinate system changes during normal drafting
6Navigation Bar and View Cube visibility settings are drawing-specific and must be configured for each file
7Zoom Extents after Undo operations may prevent Redo functionality from restoring previously drawn elements
8Endpoint snap symbols provide precision placement assistance when drawing lines between specific points
