Title Animation: Multiple Text Animators

Topics Covered in This After Effects Tutorial:

Master advanced text animation techniques including the Linear Wipe Effect, implementing multiple Text Animators for complex motion graphics, and creating reusable Text Animation Presets for efficient workflow optimization.

Exercise Preview

Exercise Overview

In this comprehensive exercise, you'll unlock the advanced capabilities of text animators in After Effects. Professional motion designers rarely rely on a single text animator—instead, they layer multiple animators to create sophisticated, multi-dimensional text animations that captivate audiences. This technique is fundamental to creating the polished motion graphics you see in broadcast television, streaming platforms, and high-end commercial work. By the end of this tutorial, you'll understand how to orchestrate multiple animators to achieve complex timing effects, overshoot animations, and seamless text reveals that elevate your motion design portfolio.

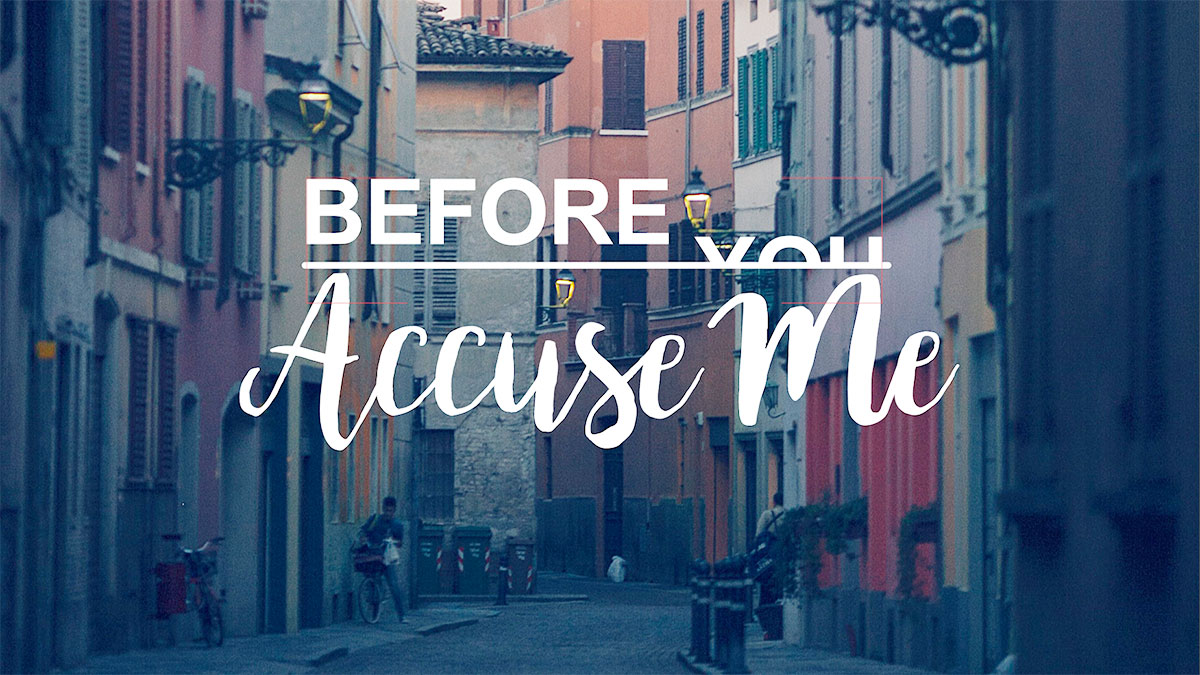

Previewing the Final Video

Before diving into the technical implementation, let's examine the professional-quality animation you'll be creating:

1. If you're currently in After Effects, keep it open but switch to your Desktop to preview the final result.

2. On the Desktop, navigate to Class Files > After Effects Class > Title Animation > Preview Movie and double–click Title Animation.mp4.

3. Study these key animation elements that demonstrate industry-standard motion design principles:

   • The line animates in first with a clean linear reveal, establishing the foundation for the text elements.
   • The top line of text flies in dynamically, appearing to emerge from behind the line with natural motion blur.
   • The bottom line of text uses a sophisticated write-on effect, revealing each letter sequentially with professional timing.

4. Replay the video multiple times to analyze the timing relationships between elements, then close it when you're ready to proceed.

Setting up the Workspace

Proper workspace organization is crucial for efficient animation workflows. Let's configure After Effects for optimal performance:

1. In After Effects, go to Window > Workspace > Standard.

2. Choose Window > Workspace > Reset "Standard" to Saved Layout to ensure consistent panel positioning.

3. Maximize your After Effects window for optimal screen real estate:

   Mac:	At the top left of the window, click the green button (the third button).
   Windows:	At the top right of the window, click the Maximize button (the middle button).

Getting Started

Now let's open the project file and establish proper file management practices that professional studios rely on:

1. In After Effects, if you have a project open, choose File > Save to preserve your current work.

2. Choose File > Open Project and:

   • Navigate to Desktop > Class Files > After Effects Class > Title Animation.
   • Double–click on Title Animation—Started.aep to open the prepared project file.

3. Immediately create your working copy by choosing File > Save As > Save As and:

   • Name the file Your Name—Title Animation.aep to maintain version control
   • Save it into Desktop > Class Files > After Effects Class > Title Animation.

Animating with the Linear Wipe Effect

The Linear Wipe effect is a fundamental transition tool that creates clean, directional reveals. This technique is extensively used in broadcast graphics and corporate presentations for its professional appearance and reliable performance across different playback systems.

1. In the Timeline panel, click the eye for the bg image layer to hide it.

   Working against a black background provides better contrast for animating white text elements, making it easier to fine-tune your animation timing.

2. Select the Line layer to target it for effect application.

3. If the Effects & Presets panel isn't visible on the right side of your workspace, choose Window > Effects & Presets.
4. In the Effects & Presets panel's search field, type linear to quickly locate the effect.
5. Double–click on the Linear Wipe effect (located in the Transition category) to apply it to the selected layer.
6. Move the playhead to frame zero to establish your starting keyframe position.

7. In the Effect Controls panel (at the top left of the workspace), configure the initial wipe parameters:

   • Transition Completion: 100 (fully revealed state)
   • Wipe Angle: 0x-90 (creates a left-to-right reveal direction)

8. In the Effect Controls panel, click the stopwatch for Transition Completion to enable keyframe animation.

9. Press the U key to reveal only the keyframed properties in the Timeline for cleaner workspace management.

10. Move the playhead to 0;10 (10 frames) to set your end keyframe timing.

11. Change Transition Completion to 0 (completely hidden state) in either the Effect Controls panel or directly in the Timeline.

12. Press the Spacebar to preview the animation and verify the smooth left-to-right line reveal.

    The line now wipes on from left to right, creating a clean foundation element for the text animations that will follow.

Animating Text with Multiple Animators

Multiple text animators represent one of After Effects' most powerful features for creating sophisticated motion graphics. Professional animators use this technique to layer different animation properties, create complex timing relationships, and achieve the polished overshoot effects commonly seen in high-end motion design. This approach allows for precise control over different aspects of text movement, enabling you to create animations that feel organic and engaging rather than mechanical.

1. Select the BEFORE YOU text layer to begin creating the multi-animator setup.

2. Click the reveal arrow next to the layer name to access the text properties.

3. Click the Animate button (located to the right of the Text property group) and choose Position to create your first animator.

4. Rename the animator for better project organization by clicking on the Animator 1 name and:

   • Press Return (Mac) or Enter (Windows) to enter edit mode.
   • Rename it Text Enters to clearly identify its function.
   • Press Return (Mac) or Enter (Windows) again to confirm the name change.

5. Set the second Position value to 150, which positions the text starting point below the line, ready for the upward reveal animation.

6. Move the playhead to 0;10 to synchronize this animation with the line reveal timing.

7. Click the reveal arrow next to Range Selector 1 to access the animation controls.

8. Click the stopwatch next to Start to begin keyframe animation.

9. Move the playhead to 1;00 to set the duration of the text entrance effect.

10. Change the Start value to 100 to complete the text reveal sequence.

11. Press the Spacebar to preview the animation and observe how each letter moves upward sequentially.

    The text now animates upward letter by letter, creating a dynamic entrance effect that builds visual interest.

12. Click on the BEFORE YOU layer name to deselect the current animator before adding the second one.

13. Click the Animate button again and choose Position to create the overshoot effect.

    This creates a second text animator that will work in conjunction with the first to create sophisticated motion.

14. Rename this second animator by clicking on Animator 1 and:

    • Press Return (Mac) or Enter (Windows) to enter edit mode.
    • Rename it Overshoot to clearly indicate its purpose.
    • Press Return (Mac) or Enter (Windows) to confirm the name.

15. In the Overshoot animator, set the second Position value to -40, creating the upward overshoot displacement.

16. Move the playhead to 0;13 to create a subtle 3-frame offset from the first animator.

    This timing offset creates the characteristic overshoot behavior where the text slightly overshoots its final position before settling.

17. Click the reveal arrow next to Range Selector 1 in the Overshoot animator.

18. Click the stopwatch next to Start to enable keyframe animation.

19. Move the playhead to 1;03 to set the overshoot completion timing.

20. Change the Start value to 100 to complete the overshoot sequence.

21. Press the Spacebar to preview the combined animation effect.

    The text now demonstrates professional overshoot behavior, flying up past its final position before settling naturally above the line.

22. Fine-tune the initial position by changing the second Position value in the Text Enters animator to 180. This compensates for the positional influence of the second animator, ensuring the text starts at the correct baseline.

23. Press the Spacebar to verify the improved animation flow.

24. Now let's refine the animation to feel more natural by animating word-by-word instead of letter-by-letter, and add professional easing. In the Text Enters animator:

    • Click the arrow next to Advanced (under Range Selector 1) to access advanced controls.

    • Change the Based On menu to Words for more natural text grouping.

    • Set Ease High to -75 to add smooth ease-in motion that feels organic.

25. Apply the same refinements to the Overshoot animator for consistent behavior:

    • Click the arrow next to Advanced (under Range Selector 1).

    • Change the Based On menu to Words to match the primary animator.

    • Set Ease High to 75 to create smooth ease-out motion for the overshoot recovery.

26. Press the Spacebar to preview the polished animation with professional easing and word-based animation.

27. Save your progress by choosing File > Save or using Cmd–S (Mac) or Ctrl–S (Windows).

Saving a Text Animation Preset

Creating reusable animation presets is a hallmark of efficient professional workflows. By saving your multi-animator setup as a preset, you're building a personal library of sophisticated effects that can be instantly applied to future projects, dramatically accelerating your animation process while maintaining consistent quality standards.

1. Select the Text Enters animator by clicking on its name in the timeline.
2. Hold Shift and click on the Overshoot animator to select both animators simultaneously.

3. Choose Animation > Save Animation Preset to create your custom preset:

   • Change the Save As name to Your Name—Fly In with Overshoot.ffx for easy identification.
   • Verify you're saving to the default User Presets folder for easy access.
   • Click Save to finalize the preset creation.

4. In the Effects & Presets panel, clear any search terms by clicking the X at the right of the search field.

5. Expand *Animation Presets to access the presets library.

6. Expand User Presets to locate your newly created preset.

   NOTE: User presets apply exactly like effects—drag them onto layers or double-click when a layer is selected. Remember that the first keyframe of any preset will be positioned at the current playhead location, allowing for precise timing control in future applications.

7. Select the BEFORE YOU layer to prepare for the next phase of animation.

8. Press Cmd ~ (Mac) or Ctrl ~ (Windows) to collapse the layer properties for cleaner workspace management.

Applying a Track Matte

Track mattes are essential for creating sophisticated reveal effects in professional motion graphics. By controlling exactly where and when your text becomes visible, you can create the illusion that text is emerging from behind other elements, adding depth and visual sophistication to your animations.

1. In the Timeline, click in the eye column for the Matte—Text layer to make it visible and see the matte boundaries.

2. If you're currently viewing the layer switches , click the Toggle Switches/Modes button at the bottom of the Timeline to access the track matte controls.

3. In the BEFORE YOU layer's TrkMat dropdown menu, select Alpha Matte "Matte—Text" to establish the masking relationship.

4. Press the Spacebar to preview the refined animation with track matte applied.

   The text now reveals only when it crosses into the matte area, creating a sophisticated emergence effect that appears to come from behind the line element.

5. Select all layers by pressing Cmd–A (Mac) or Ctrl–A (Windows) to prepare for final cleanup.

6. Collapse all visible layer properties by pressing Cmd ~ (Mac) or Ctrl ~ (Windows) for optimal workspace organization.

7. Save your completed project by choosing File > Save or using Cmd–S (Mac) or Ctrl–S (Windows).
