Special Effects with Type & Clipping Masks

Topics Covered in This Photoshop Tutorial:

Masking a Photo with Type, Clipping Masks

Exercise Preview

Exercise Overview

In this exercise, you'll master one of Photoshop's most powerful design techniques: using text as a mask to reveal photographic content. This approach creates striking typographic compositions where images are confined within letterforms, producing results that are both visually compelling and professionally polished. Beyond the basic masking technique, you'll also explore layer effects to add sophisticated finishing touches that elevate your design from functional to exceptional.

Masking a Photo with Type

1. From the Photoshop Class folder, open the file grandCentral.jpg. This architectural photograph provides an ideal subject for text masking due to its rich detail and strong contrast.

2. To create a professional foundation for your design, you'll establish a solid backdrop using a fill layer. Fill layers are purpose-built for color backgrounds and offer superior flexibility compared to painting directly on canvas layers. At the bottom of the Layers panel, click the Create new fill or adjustment layer button , and from the menu, choose Solid Color.

3. In the Color Picker that appears, choose white. This neutral background will provide optimal contrast for your masked typography while maintaining a clean, contemporary aesthetic. (Note: The initial color is based on your current foreground color setting.)

4. Now you'll convert the Background layer into a standard layer to unlock full editing capabilities. In the Layers panel, click the Lock icon to the right of the Background layer's name.

   The layer will automatically rename itself to Layer 0, indicating it's now fully editable and can be repositioned within your layer stack.

5. In the Layers panel, double-click on the Layer 0 name and change it to photo. Descriptive layer names are essential for maintaining organization in complex projects and facilitate collaboration with other designers.

6. Drag the photo layer above the Color Fill layer, positioning the photograph at the top of your layer hierarchy. This stacking order is crucial for the clipping mask technique you'll implement shortly.

7. Select the Horizontal Type tool from the toolbar. This tool will serve as both text input device and masking shape generator.

8. Click in the image and type the following text, formatting it across two lines for optimal visual impact:

   GRAND CENTRAL

9. Select all the text using Select > All to prepare for comprehensive formatting adjustments.

10. In the Character panel (Window > Character), choose a bold, substantial typeface such as Impact or another condensed sans-serif font. Select a font size that allows the text to span most of the photo's width while maintaining readability, and adjust the leading (line spacing) to create comfortable visual breathing room between lines. Pro tip: For precise control, type values directly into fields, use your keyboard's Up and Down arrows for incremental adjustments, or hover over field icons and drag with the hand slider for real-time feedback.

11. Position the type strategically within your composition using the Move tool. If visibility becomes an issue during positioning, temporarily adjust the text color in the Character panel or Options bar. Remember: this color is purely for positioning purposes—it will be invisible once you apply the clipping mask.

12. Once you've achieved optimal text placement, navigate to the Layers panel and drag the type layer directly beneath the photo layer. This specific layer arrangement is critical for creating the clipping relationship.

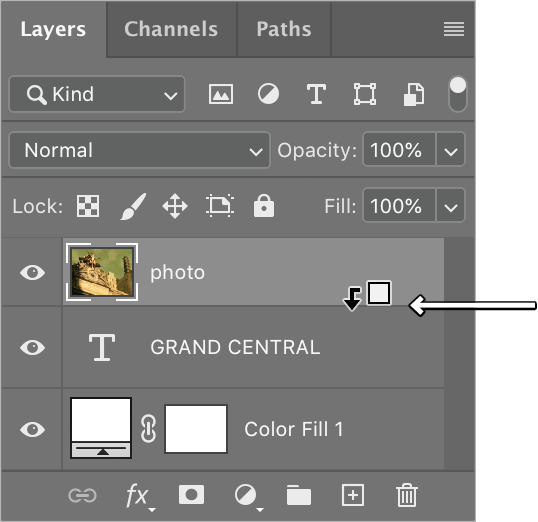

13. Now you'll create the clipping mask that transforms your text into a photo reveal mechanism. Hold the Option (Mac) or ALT (Windows) key and position your cursor precisely on the divider line between the text layer and photo layer. When the cursor transforms into the Clipping Group icon (shown below), click once to establish the mask relationship.



14. The transformation is immediate and dramatic—your photograph now appears exclusively within the letterforms, creating a sophisticated text-based reveal effect. Using the Move tool , experiment with repositioning either the text or photo layer independently until you achieve the most compelling composition. This flexibility allows you to fine-tune which portions of the image appear within each letter.

With your masked typography complete, you're ready to add professional finishing touches that will elevate the design's visual impact and ensure it meets contemporary design standards.

Adding Special Effects

1. Professional text treatments often benefit from subtle dimensional effects that enhance readability and visual presence. Select the type layer and click the Add a layer style button . From the comprehensive menu, choose Outer Glow to create a sophisticated halo effect.

2. The Layer Style dialog offers extensive customization options for achieving precisely the aesthetic you envision. Configure the following settings for optimal results:

   • Change the Blend Mode to Normal for maximum color intensity and control.
   • Click the color box (located under the Noise slider) to access the color picker. Select a hue that complements your image—consider warm tones for inviting effects or cool tones for modern, corporate aesthetics.
   • Experiment with Size, Spread, and Opacity sliders to achieve the perfect balance between subtlety and impact. Remember: effective design enhancement should support, not overpower, your primary content.

3. Click OK to apply your carefully crafted layer style settings.

4. Congratulations! You've successfully created a professional-grade masked typography composition. For further creative exploration, consider experimenting with additional layer styles such as Drop Shadow for depth, Bevel and Emboss for dimensional texture, or Color Overlay for mood enhancement. Each effect can be fine-tuned and combined to achieve your specific design vision.

5. When saving your completed work, choose the Photoshop (.psd) format to preserve complete editability, including layers, effects, and adjustment capabilities. This ensures future modifications remain straightforward and non-destructive.

For projects destined for professional print production or integration with layout applications like InDesign, additional technical considerations will optimize your output quality and maintain design integrity across different media.
