Masking Photos & Visual Effects

Topics Covered in This Photoshop for Web Design Tutorial:

Master essential web design techniques including importing and cropping photos through advanced masking, colorizing vector icons using Smart Objects in Photoshop, applying professional effects like stroke, inner shadow, and gradient overlays, efficiently copying effects across multiple layers, and controlling transparency with fill opacity adjustments.

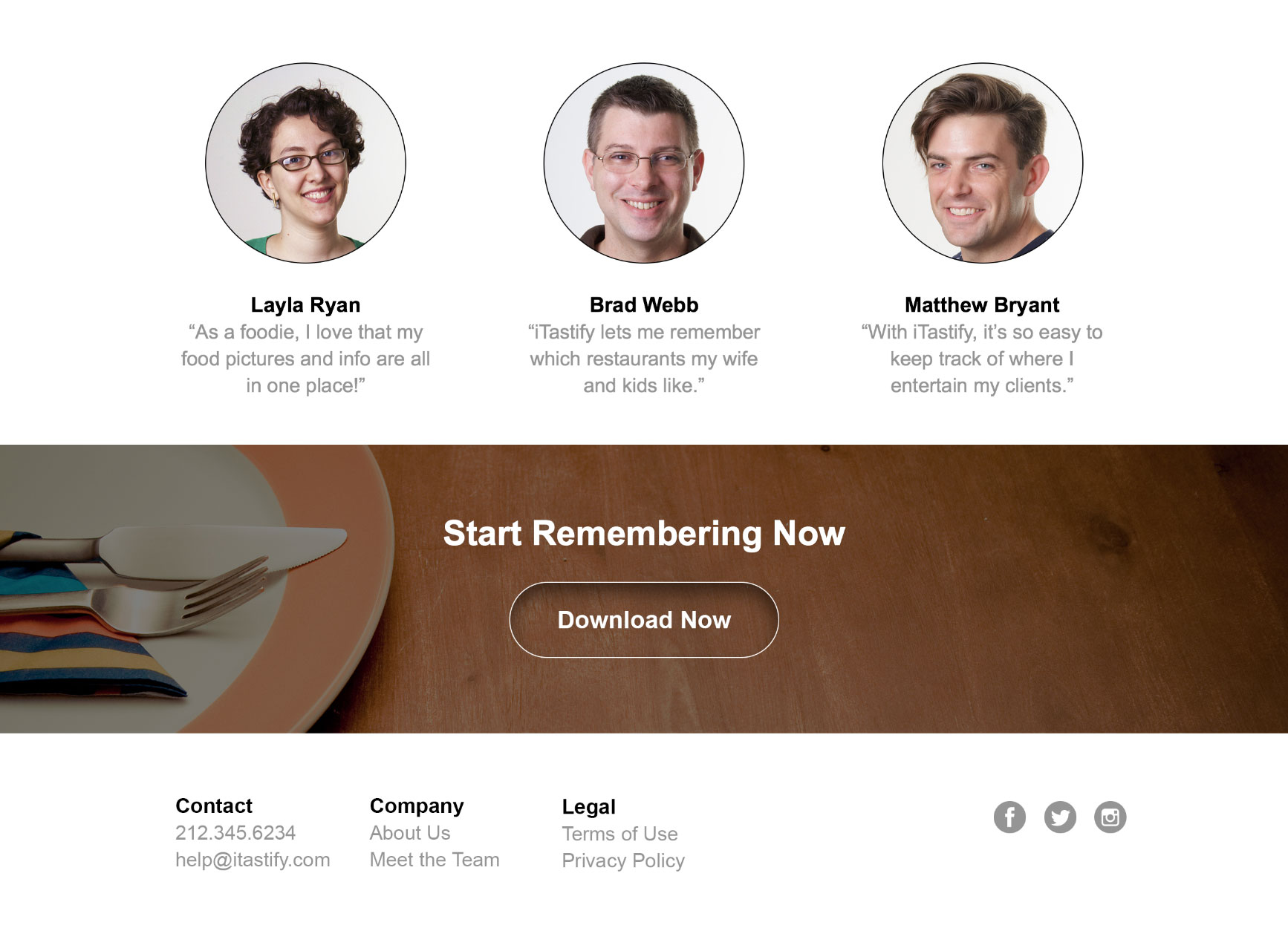

Exercise Preview

Exercise Overview

In this comprehensive exercise, you'll master the art of non-destructive photo cropping using Photoshop's powerful masking capabilities—a fundamental skill that allows you to show only the desired portions of your images while preserving the original data. You'll also explore layer effects to create polished, professional appearances for buttons, icons, and other interface elements that elevate your web designs from amateur to expert level.

Importing the Photo

1. In Photoshop, close any open files to start with a clean workspace.
2. Press Cmd–O (Mac) or Ctrl–O (Windows) to open the file dialog.
3. Navigate to Desktop > Class Files > yourname-Photoshop for Web Class > iTastify and open iTastify Ready for Photos.psd.

4. Zoom in and scroll down to locate the three testimonials below the heading Browse & Search Your Experiences.

   Notice that we've already integrated one photo as a reference. Our goal is to create consistent circular headshots that maintain visual harmony across all testimonials—a crucial aspect of professional web design.

5. Select the Move tool from the toolbar.

6. In the Options bar at the top, verify these critical settings:

   • Auto-Select should remain unchecked to prevent accidental layer selection.

   • The dropdown menu should be set to Layer for precise control.

7. We'll begin with Brad Webb's testimonial photo. Ctrl–click (Mac) or Right–click (Windows) on the gray placeholder box positioned above Brad Webb.
8. From the context menu, select Customer Image (located directly under Quote-Brad).
9. Press Delete to remove the gray placeholder, making room for our actual photo.
10. Now we'll import the professional headshot. Choose File > Place Embedded for optimal quality retention.

11. Navigate to Desktop > Class Files > yourname-Photoshop for Web Class > iTastify > user-photos and double–click brad-webb.jpg to select it.

12. Accept the default size by pressing Return (Mac) or Enter (Windows).

13. Position the image roughly centered above the Brad Webb text, ensuring the subject's eyes align horizontally with Layla's eyes for visual consistency. We'll refine this positioning in subsequent steps.

Creating Circular Photo Masks (Advanced Cropping Technique)

Now we'll implement one of the most versatile techniques in modern web design: non-destructive masking to create perfect circular portraits.

1. Select the Ellipse tool from the Tools panel (typically located near the bottom).

2. In the Options bar, set the mode to Path. This creates a vector path rather than a filled shape, giving us maximum flexibility.

3. For precise consistency with the existing design, we'll match the 406px circle size. Position your cursor between Brad's eyes and click once to establish the center point.

   NOTE: In your own projects, you can simply drag to create a circle of the desired size, holding Shift to maintain perfect proportions.

4. Configure the circle parameters:
   • Set both Width and Height to 406 px for perfect uniformity.
   • Enable From Center to ensure accurate positioning.
   • Click OK to apply.

5. In the Options bar, click the Mask button to convert your path into a vector mask. If this button isn't visible, use the menu alternative: Layer > Vector Mask > Current Path.

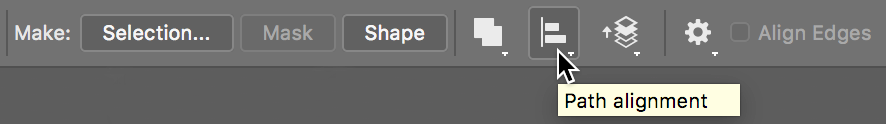

6. Vector mask alignment requires a different approach than standard layer alignment. Click the Path alignment button in the Options bar to access alignment options.



7. In the alignment panel, set Align To to Canvas for document-based alignment.

8. Click the Path alignment button again, then select Align horizontal centers .

   The path achieves perfect horizontal centering, ensuring professional layout precision.

9. Switch to the Move tool .

   For precise vertical alignment with Layla's circle, we'll create a custom guide. While Smart Guides are helpful, complex layouts can create too many snap points, making manual guides more reliable.

10. Select Layla's circular photo by Cmd–clicking (Mac) or Ctrl–clicking (Windows) on it.

11. Confirm in the Layers panel that the layla-ryan layer is selected. This ensures our guide will snap to this layer's boundaries.

12. Ensure Layla's circle is visible in your viewport.

13. If rulers aren't visible, enable them via View > Rulers.

14. Click and drag from the top ruler to create a horizontal guide, positioning it so it snaps to the top edge of Layla's photo.

15. Lock the guide in place by choosing View > Lock Guides to prevent accidental movement.

16. Select Brad's circular photo by Cmd–clicking (Mac) or Ctrl–clicking (Windows) on it.

17. For precise circle-to-guide snapping, we need a vector-aware tool. Select the Path Selection tool , which recognizes vector elements.

18. Click on Brad's circle to select the vector mask.

19. Begin dragging the circle, then hold Shift to constrain movement. Drag vertically until the circle's top edge snaps to your guide. Release the mouse before releasing Shift for accurate positioning.

20. The photo remains in its original position while the mask has moved. Let's adjust the photo positioning within the circular frame. Switch back to the Move tool .

21. In the Layers panel, locate the brad-webb layer.

22. Notice the two thumbnails representing different layer components:

    • Left thumbnail: The photo content (Smart Object)
    • Right thumbnail: The circular mask (vector mask)

23. Click the link icon between thumbnails to unlink them, allowing independent positioning.

24. Drag the photo to optimize the composition, typically positioning the subject's eyes prominently within the frame. Use arrow keys for pixel-perfect adjustments.

    Professional tip: Eye placement is crucial in portrait composition, as viewers naturally gravitate toward eyes first. Consider implementing the rule of thirds for more dynamic positioning.

25. Re-establish the link between photo and mask by clicking in the space between thumbnails. This prevents accidental misalignment during future edits.

26. For the third testimonial photo, we'll use a smart duplication technique. Choose Layer > Smart Objects > New Smart Object via Copy.

    This creates an independent Smart Object copy, preventing unwanted changes to both photos when we swap the image content.

27. The duplicate appears as brad-webb copy in the Layers panel.

28. Double–click the layer name and rename it to matthew for clear organization.

29. Drag the matthew layer into the Quote-Matthew folder below.

30. Position the matthew layer at the top of the Quote-Matthew folder hierarchy.

31. Select the Customer Image placeholder layer within the Quote-Matthew folder.

32. Press Delete (Mac) or Backspace (Windows) to remove the placeholder.

33. Select the matthew layer.

34. Hold Shift and drag the photo from Brad's position to Matthew's location. The Shift key maintains alignment while Smart Guides assist with centering above the text.

35. Replace the photo content while maintaining the circular mask. With the matthew layer selected, choose Layer > Smart Objects > Replace Contents.

36. Navigate to Desktop > Class Files > yourname-Photoshop for Web Class > iTastify > user-photos and select matthew-bryant.jpg.

37. Hide guides by pressing Cmd–; (Mac) or Ctrl–; (Windows) for an unobstructed view.

Adding Professional Stroke Effects

Subtle strokes help define edges and improve readability, especially when photos blend into background colors—a common challenge in modern flat design.

1. Light backgrounds can cause photo edges to disappear, reducing visual impact. A subtle stroke provides necessary definition. Ensure the matthew layer remains selected.

2. Click the Add a layer style button at the bottom of the Layers panel and select Stroke.

3. Position the Layer Style dialog so you can preview changes on the Matthew Bryant photo in real-time.

4. Set Size to 2 px. Since we're working in a 2x resolution file, this ensures a crisp 1px stroke in the final web implementation.

5. Click OK to apply the effect.

6. To maintain consistency across all testimonials, we'll copy this style efficiently. Ctrl–click (Mac) or Right–click (Windows) on the matthew layer name.

7. Select Copy Layer Style from the context menu.

8. Locate the brad-webb layer (a few layers above).

9. Ctrl–click (Mac) or Right–click (Windows) on the brad-webb layer name.

10. Choose Paste Layer Style to apply the identical stroke.

11. For the third photo, we'll demonstrate an alternative copying method. Hold Option (Mac) or Alt (Windows) and drag the fx icon from brad-webb directly to layla-ryan.



12. Collapse the testimonials layer group to maintain an organized Layers panel.

Implementing Background Photography

Strategic background imagery can significantly enhance user engagement and create emotional connections with your content.

1. Scroll to the Start Remembering Now section below the testimonials.

2. We'll replace the placeholder gray background with compelling food photography. Cmd–click (Mac) or Ctrl–click (Windows) on the gray background to select it.

3. Rather than deleting the background shape, we'll use it as a mask foundation. Choose File > Place Embedded for optimal image quality.

4. Navigate to Desktop > Class Files > yourname-Photoshop for Web Class > iTastify and select plate-on-table.jpg.

5. The image requires scaling to balance the composition effectively. In the Options bar:

   • Set W to 75% to reduce the plate's visual dominance
   • Verify the Link icon maintains aspect ratio (H should auto-adjust)
   • Press Return (Mac) or Enter (Windows) to apply

6. Flip the image for better compositional flow: Edit > Transform > Flip Horizontal.

7. Position the photo so the knife creates a visual line pointing toward Start Remembering Now, with the right edge aligning to the document boundary.

8. Select the call to action bg layer to access its vector path.
9. Switch to the Path Selection tool .
10. Click on the blue path outline to select it.
11. Choose Edit > Cut to remove the background layer while preserving the path.

12. With the plate photo selected, choose Edit > Paste.

    This technique automatically applies the rectangular path as a vector mask, creating perfect edge alignment.

13. To ensure optimal text readability over the photographic background, we'll add a subtle overlay. Double–click in the empty space beside the plate-on-table layer.

14. In the Layer Style dialog, click on Color Overlay (click the text, not just the checkbox) to access its options.

15. Click the Color Swatch next to the Blend Mode menu.

16. Set the color to pure black: #000000

17. Click OK to confirm the color selection.

18. Reduce Opacity to 50% for subtle darkening that maintains image detail while improving text contrast.

19. Click OK to apply the overlay effect.

Professional Icon Colorization

Consistent icon styling reinforces brand identity and creates visual cohesion throughout your interface.

1. Navigate to the three social media icons in the bottom-right footer area.
2. Unified icon coloring creates stronger brand cohesion than multi-colored alternatives. In the Layers panel, scroll to the bottom and expand the footer folder.
3. Applying effects to the parent group affects all contained layers simultaneously, streamlining future color modifications. Open the Swatches panel via Window > Swatches for color consistency.
4. Double–click in the empty space beside the social-icons group name.
5. Position the Layer Style dialog to view both icons and the Swatches panel simultaneously.
6. Click on Color Overlay (select the text, not the checkbox) to access full options.
7. Set Opacity to 100% for complete color replacement.
8. Click the Color Swatch to open the color picker. Keep this dialog open for color sampling.

9. If you completed previous exercises, select the iTastify red swatch from the Swatches panel end.

   Without the saved swatch, sample the red from the Download Now button or use #e24637.

10. The bright red proves too visually aggressive for subtle social icons. For better hierarchy, select the text gray swatch or use #959595 for understated elegance.

11. This subdued approach maintains functionality while supporting the primary call-to-action prominence. Click OK twice to apply.

Advanced Layer Effects

Layer effects can transform basic shapes into polished interface elements that enhance user experience and perceived quality.

1. Select the Move tool .

2. Cmd–click (Mac) or Ctrl–click (Windows) on the Download Now button's red background.

3. Double–click in the empty space beside the Download Button bg layer name to open Layer Style options.

4. Position the dialog for optimal preview of your button modifications. Keep this dialog open as we explore multiple effects to create a professional, interactive button appearance.
