Text Animation: Masking Layers & Using Scripts

Topics Covered in This After Effects Tutorial:

Master advanced automation techniques using Scripts to streamline workflows in After Effects, implement sophisticated masking strategies with static alpha mattes for revealing animated layers, harness the Set Matte Effect for precise compositing control, create natural movement with overshoot animation principles, integrate complex Illustrator vector masks seamlessly, and orchestrate scattered masked elements that dynamically recombine into cohesive compositions

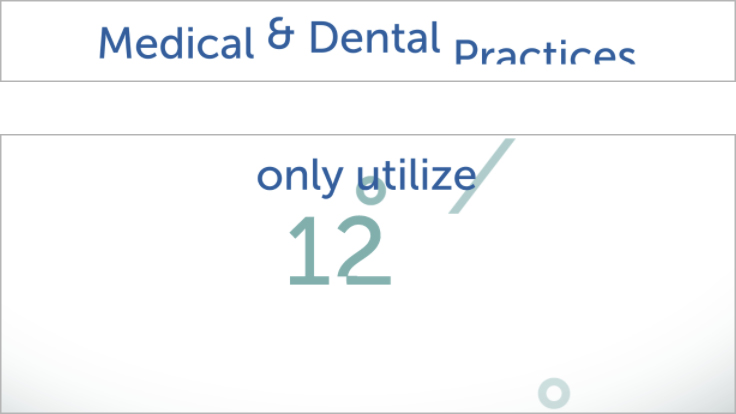

Exercise Preview

Exercise Overview

In this comprehensive four-part exercise series, you'll craft a sophisticated animated text advertisement for WaitingRoom—a cutting-edge platform that revolutionizes medical practice efficiency by connecting established healthcare professionals with practitioners seeking to lease premium space, equipment, and specialized staff.

This advanced tutorial combines multiple professional techniques into a cohesive workflow. You'll master the art of using static shape layers as alpha mattes to create elegant text reveals as content moves through invisible boundaries. Additionally, you'll learn to strategically divide text elements using masks, enabling dramatic scatter-and-recombine animations that add visual impact to your compositions. To maximize efficiency and maintain professional standards, we'll leverage powerful automation scripts that eliminate repetitive tasks and ensure consistent results across complex projects.

Previewing What You'll Make in This Exercise

1. Navigate to your desktop and locate Class Files > After Effects Level 2 Class > Text Animation > Finished Clips, then double-click Text-Animation-12-Percent.mov to open the reference video.

2. Study the animation carefully, noting these sophisticated techniques in action:

   • Watch how the "Medical & Dental Practices" text emerges word-by-word from an invisible boundary below, creating a clean, professional reveal effect. The remaining dark blue text lines employ similar matte-based animations for visual consistency.
   • Observe the natural overshoot behavior as text elements enthusiastically leap slightly beyond their final positions before settling—this mimics real-world physics and adds organic appeal to digital motion.
   • Notice how the fragmented "12%" numerals fly in from multiple directions with apparent randomness, yet converge precisely to form the complete percentage display—a hallmark of professional motion graphics.

3. Review the video multiple times to internalize the timing and visual flow. Keep it accessible for reference as we deconstruct and rebuild these effects step by step.

Using Scripts to Automate Tasks in After Effects

Professional motion graphics workflows demand efficiency at scale. Scripts serve as force multipliers, automating complex After Effects operations that would otherwise consume hours of manual labor. These powerful tools are built using Adobe's ExtendScript language—a robust JavaScript-based framework designed specifically for Creative Suite automation.

The three scripts featured in this tutorial were developed by Charles Bordenave, a respected figure in the After Effects community. These tools exemplify the "pay-what-you-want" philosophy at aescripts.com, one of the industry's premier repositories for professional automation tools. This approach democratizes access to advanced functionality while supporting continued development.

Understanding script installation is crucial for any serious After Effects professional. All scripts reside within the application's dedicated Scripts folder hierarchy. Scripts equipped with user interfaces—like our three featured tools—gain menu accessibility when properly installed in the ScriptUI Panels subfolder. This integration transforms scattered utilities into seamless workflow extensions accessible through After Effects' familiar Window menu.

Noble Desktop students can proceed directly to the main exercise, as we've pre-configured all required scripts. Independent learners should complete the following installation process to ensure full tutorial compatibility.

If You Aren't at Noble Desktop: Downloading & Installing Scripts

1. Launch your preferred web browser and navigate to aescripts.com, the industry standard for After Effects automation tools.

2. Utilize the search functionality in the top-right corner to locate DecomposeText, our first essential script.

3. Select the DecomposeText result from the search listings.

4. Enter your preferred contribution amount in the Name Your Own Price field—remember, free downloads are perfectly acceptable and support continued development.

5. Click ADD TO CART to proceed with your selection.

6. Repeat this acquisition process for our remaining required scripts:

   • MasksToLayers - Essential for our fragmentation workflow
   • RepositionAnchorPoint - Critical for precise animation control

7. Access your shopping cart using the cart icon located in the page header.

8. Select PROCEED TO CHECKOUT to continue with your acquisition.

9. New users should click REGISTER and complete the account creation process—this provides access to future downloads and community features.

10. Complete the checkout process and download your script package.

11. Critical: Ensure After Effects is completely closed before proceeding with installation—active applications can prevent proper script integration.

12. Locate your downloaded script files and select all three for batch processing.

13. Copy the selected scripts to your system clipboard.

14. Navigate to your operating system's specific After Effects script directory:

    Mac:	Applications > Adobe After Effects 2019 > Scripts > ScriptUI Panels
    Windows:	Program Files > Adobe > Adobe After Effects 2019 > Support Files > Scripts > ScriptUI Panels

15. Paste your scripts into the ScriptUI Panels folder to enable menu integration.

16. Your automation tools are now properly integrated and ready for professional use. Launch After Effects to access your new capabilities through the Window menu.

Getting Started

We've streamlined your learning experience by pre-configuring the essential project elements, allowing you to focus entirely on mastering advanced animation techniques rather than basic setup tasks.

1. In After Effects, navigate to File > Open Project. If you currently have another project active, save your work first to access the Open dialog.

2. Browse to Desktop > Class Files > After Effects Level 2 Class > Text Animation and open Text Animation Started.aep by double-clicking.

3. Immediately create your working version by selecting File > Save As > Save As to avoid accidental modifications to the original.

4. Ensure you're in the correct directory: Class Files > After Effects Level 2 Class > Text Animation. Name your project yourname-Text Animation.aep and click Save.

5. Examine the Project panel structure by expanding the organizational folders. Notice the clean separation between Assets (imported elements from Illustrator and Photoshop sources) and Pre-comps (our working compositions).

6. Professional broadcast standards require title-safe consideration. If composition guides are visible, disable them now through View > Show Guides in the Composition panel for cleaner workspace visibility.

   Pro Tip: When creating Photoshop documents intended for After Effects integration, always use the HDTV 1080p preset from the Film & Video category. This automatically generates broadcast-safe guides for both title and action areas, ensuring professional compliance from project inception.

7. Access your primary working environment by double-clicking the [01-12 Percent] pre-composition within the Text Animation-MAIN timeline.

8. Examine the Timeline layer structure and observe how we've separated each text element onto individual layers for maximum animation control. You can verify this organization by temporarily enabling the Solo switches, then disable them when finished. Also note the presence of shape layers that will serve as our masking elements.

Hiding/Showing Moving Layers Using Static Alpha Mattes

Mastering static alpha mattes opens up sophisticated reveal techniques that separate amateur work from professional motion graphics. Unlike animated mattes that change over time, static mattes provide consistent boundaries that moving content can enter and exit, creating clean, controlled reveals that viewers perceive as elegant and intentional.

Our pre-built shape layers are strategically positioned to serve as invisible boundaries. Let's examine how this professional technique transforms simple movement into compelling visual storytelling.

1. We've pre-animated the second and final text lines to demonstrate the completed effect. Press Spacebar to preview and observe these key behaviors:

   • The words only and utilize begin hidden and animate sequentially into view, stopping precisely when fully revealed. These elements are already matted using our target technique.
   • Several seconds later, the of their resources text group drops into the turquoise rectangle area. Currently, this colored shape is visible and distracting—we need to convert it into an invisible matte boundary.

2. Locate the line 4 matte layer in the Timeline and disable its visibility by clicking the icon. This transforms the colored rectangle into an invisible boundary.

3. Select the of layer and access the Effects and Presets panel.

4. Search for Set Matte using the search bar—this effect provides more control than traditional track matte methods.

5. Configure the Set Matte effect by changing Take Matte from Layer to line 4 matte, then disable Stretch Matte to Fit to maintain precise positioning control.

6. Scrub through the Timeline to observe how "of" now appears to jump into the invisible matte boundary—this is the foundation of professional reveal animation.

7. Efficiency demands reusable workflows. In the Effect Controls panel, click the Set Matte effect name and copy it using Edit > Copy.

8. Select both the their and resources layers (the remaining magenta-colored elements) and paste the effect using Edit > Paste. All three text elements now share the same matte boundary, ensuring consistent behavior.

9. The first line requires its own matte boundary for the dramatic entrance we're creating. Select the Rectangle tool from the Tools panel.

10. Critical: Deselect all layers before drawing to ensure you create a new shape layer rather than adding a mask to existing content.

11. Configure the shape appearance by clicking the blue Fill text (not the color swatch) in the Tools panel.

12. Verify that the Solid Color option is selected and Opacity remains at 100%, then click OK.

13. Click the color swatch adjacent to Fill to access color selection.

14. Choose a high-contrast color that clearly differentiates from your text. For consistency with our example, use hex code #FFA01B (professional orange), then confirm with OK.

15. Ensure clean shape creation by verifying the stroke setting. Locate the stroke swatch next to Stroke in the Tools panel. If the no stroke icon isn't visible, hold Option (Mac) or Alt (Windows) while clicking to cycle through options until you reach the no-stroke state.

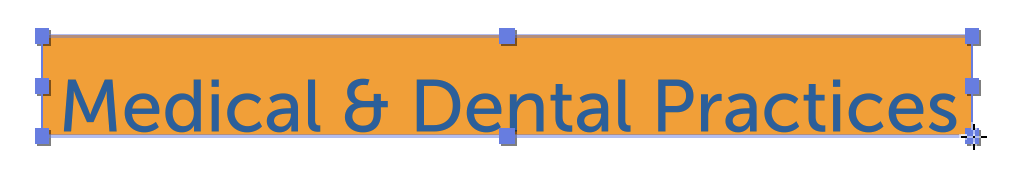

16. Create your matte boundary by drawing a rectangle over the Medical & Dental Practices line. Position it so the bottom edge barely touches the text baseline while extending upward approximately half a line height. Use this reference for precise placement:



17. Organize your Timeline by dragging the new shape layer below all associated text elements, positioning it as Layer 5 for logical hierarchy.

18. Achieve pixel-perfect consistency by refining the dimensions. Press UU to reveal all modified properties from their defaults.

19. Navigate to Contents > Rectangle 1 > Rectangle Path 1 and set Size to 930, 100. If needed, temporarily disable the constraint link to adjust values independently, then re-enable it.

20. Under Contents > Rectangle 1 > Transform: Rectangle 1, set the Position to 15, -175. Note this controls the shape group position, not the layer's main Transform property.

21. Apply professional naming conventions by renaming the layer to line 1 matte for clear identification.

22. Implement visual organization by changing the layer's label color to Red, creating a clear association with the first text line group.

23. Clean up your workspace by using the collapse arrows to close any expanded layer properties in the Timeline.

Creating an Animation That Overshoots Its Final Position

Professional animation principles demand authenticity in movement. Real-world physics teaches us that moving objects rarely stop instantly at their intended destinations—they overshoot due to momentum, then settle back. This subtle behavior separates mechanical, computer-generated motion from organic, believable animation that audiences unconsciously recognize as natural.

We'll implement a sophisticated three-phase animation: rapid upward movement, slight overshoot beyond the target, and gentle settling to the final position. This entire sequence will unfold over just half a second, requiring precise timing to achieve the desired impact.

1. Select the Medical layer in the Timeline—this will serve as our template for the overshoot animation behavior that we'll replicate across all first-line elements.

2. Press P to reveal the layer's Position property for keyframe manipulation.

3. Right-click (Windows) or Ctrl-click (Mac) on the Position property name and select Separate Dimensions. This critical step allows independent control of horizontal and vertical movement, essential for precise animation control.

4. Click elsewhere to deselect the separated properties and prepare for keyframe creation.

5. Navigate to 0;27 in the Timeline—this represents our animation's end point. Working backwards from the final state ensures accurate positioning and prevents common timing errors.

6. Enable animation by clicking the stopwatch next to Y Position. This creates our first keyframe at the text's final resting position.

7. Move backward to 0;22 (five frames earlier) to establish the overshoot position where the text will briefly pause before settling.

8. Adjust Y Position to 387.5—this places the text slightly above its final destination, creating the characteristic overshoot behavior.

9. Jump back exactly 10 frames using the keyboard shortcut: Shift-Cmd-Left Arrow (Mac), Shift-Page Up (Windows), or Shift-Fn-Up Arrow (Mac laptop). You should now be at 0;12, marking the animation's starting point.

10. Set Y Position to 495.5 to position the text completely below our orange matte shape. Once we apply the matte effect, this will render the text completely invisible, setting up the dramatic reveal.

11. Apply professional easing to simulate realistic momentum loss. Select the middle keyframe (at 0;22) and press F9 to apply Easy Ease, which softens the motion as the text reaches its highest point and begins to descend.

12. Prepare for efficient workflow replication by clicking the Y Position property name to select all three keyframes, then copy them to your clipboard.

13. Create staggered animation timing by offsetting each subsequent word's entrance. Since "Medical" begins at 0;12, navigate to 0;15 for the next element's start time.

14. Select the & layer and paste the keyframes to apply identical animation behavior with the three-frame offset.

15. Continue the staggered timing pattern by pasting keyframes at these precise intervals:

    0;18:	Dental
    0;21:	Practices

16. Verify successful keyframe application by pressing U on each layer to confirm the presence of animated properties.

17. Preview your animation work by pressing Spacebar. The sequential word movement should demonstrate natural, physics-based motion—you're now ready to implement the matte reveal effect.

18. Convert the shape layer to an invisible matte by selecting line 1 matte and disabling its visibility .

19. Apply the matte effect to your first animated element by selecting the Medical layer and accessing Effect > Set Matte (it should appear at the top of the menu due to recent usage).

20. Configure the effect in the Effect Controls panel by changing Take Matte from Layer to line 1 matte.

21. Disable Stretch Matte to Fit to maintain precise spatial relationships between your text and matte boundaries.

22. Test the effect by scrubbing through the Timeline—you should see the text revealing progressively as it moves into the matte boundary.

23. Ensure no layers are selected, then click the Set Matte effect name in the Effect Controls panel and copy it using Edit > Copy.

24. Apply consistent matte behavior across all first-line elements by selecting layers 2 through 4 (the &, Dental, and Practices layers) using Shift-click, then paste the effect using Edit > Paste.

More Illustrator Masks in After Effects

The integration between Adobe Illustrator and After Effects represents one of motion graphics' most powerful workflows. Illustrator's precision vector tools excel at creating complex mask shapes that would be tedious to draw directly in After Effects, while After Effects transforms these static paths into dynamic animation elements.

For our 12% fragmentation effect, we need to separate this text element into individual pieces that can scatter and recombine. The precision required for clean separations demands Illustrator's advanced path tools, which we've pre-configured for optimal After Effects integration.

1. Keep After Effects active in the background and navigate to your Desktop file system.

2. Browse to After Effects Level 2 Class > Text Animation > Assets > Vectors and launch 12-percent-masks.ai by double-clicking, which will open it in Adobe Illustrator.

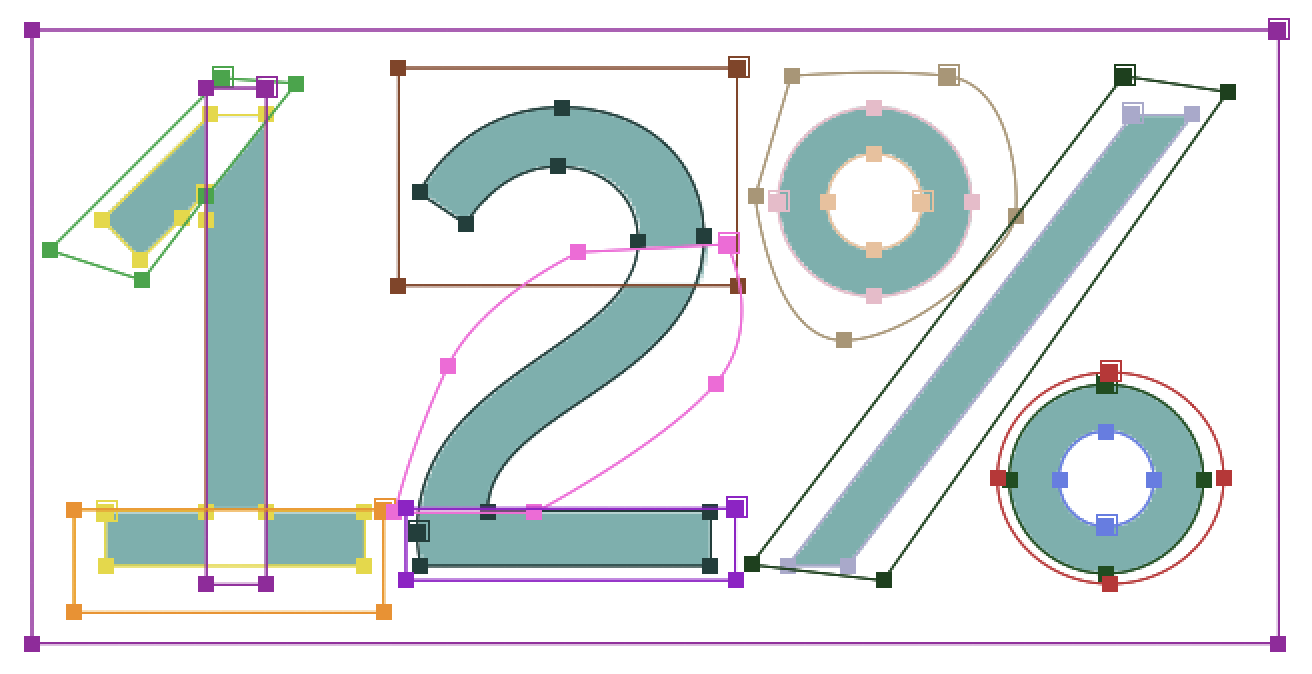

3. Examine the artboard's central content and click on any individual number segment. You should observe a blue outline indicating the layer's selection—each of these precisely-crafted shapes will become a separate mask boundary in our After Effects composition.

4. Select all mask elements using Cmd-A (Mac) or Ctrl-A (Windows), then copy them to your system clipboard.

5. Return to After Effects while keeping Illustrator open for potential future modifications.

6. Target the 12% layer (layer 7) and paste the Illustrator paths. After Effects will automatically convert these vector shapes into masks applied to your selected layer.

7. Enable mask visibility for precise positioning by clicking the Toggle Mask and Shape Path Visibility button at the bottom of the Composition panel until it highlights in blue.

8. Press M to reveal all mask properties in the Timeline. Notice that we've pre-created the first mask named 12% as a foundation for your work—this demonstrates the proper naming convention and setup for professional
