Working with Camera Raw Files

Topics Covered in This Adobe Bridge Tutorial:

Making Edits with Adobe Camera Raw, Synchronizing Raw Settings, Batch Processing Images, Benefits of Working with Raw Files

Exercise Preview

Exercise Overview

Professional photographers and designers know that efficiency is everything. Instead of constantly switching between applications to process Camera Raw files in Photoshop, you can streamline your entire workflow by handling everything directly in Adobe Bridge. This approach eliminates the time-consuming back-and-forth between applications, allowing you to maintain focus and momentum while processing large batches of images.

Setting Preferences

By default, Adobe Bridge displays Camera Raw images as thumbnails and in slideshows, but double-clicking opens the RAW file in Photoshop for editing. For a truly efficient workflow, you'll want to configure Bridge to handle Camera Raw editing internally, keeping everything in one application.

1. In Bridge, navigate to the Adobe Bridge CC menu (Mac) or Edit menu (Windows) and select Preferences. Note that this is the main Bridge preferences, not the Camera Raw-specific preferences.

2. In the left sidebar, click General.

3. On the right side, enable Double-Click Edits Camera Raw Settings in Bridge.

4. Click OK to save your changes.

Navigating to a Folder

Before diving into the actual editing process, let's ensure your workspace is optimized for this tutorial.

1. First, standardize your workspace layout:

   • Navigate to Window > Workspace > Essentials.
   • Then select Window > Workspace > Reset Workspace.

2. In the Favorites panel at the top left, click Desktop.

3. The default thumbnail size can make it difficult to read file names efficiently. At the bottom right of the window, drag the zoom slider slightly to the right for better visibility.



4. In the main content area, double-click the Class Files folder to open it.

5. Navigate into the Bridge Files folder.

6. Finally, open the Camera Raw Pics folder where our sample images are located.

Adjusting a Raw Image: White Balance & Straightening

Now we'll tackle the fundamental adjustments that can transform a mediocre capture into a professional-quality image. White balance and straightening are often the first corrections that separate amateur work from professional results.

1. Double-click Noble Desktop.cr2 to open it in the Camera Raw interface.

2. At the top of the window, select the White Balance tool . This tool is incredibly powerful for correcting color casts that occur under different lighting conditions.

3. Experiment by clicking on different neutral areas—try the white wall and white column. Each click will instantly adjust the image's color temperature and tint. Look for the most natural-looking result.

4. For precise control, use the Temperature and Tint sliders on the right panel. Professional photographers often prefer this manual approach for consistency across a series.

   For this particular image, we recommend approximately Temperature: 3150 and Tint: –4, though your artistic preference may vary.

5. The camera was slightly tilted during capture—a common issue that's easily corrected. Select the Straighten tool from the top toolbar.

6. Identify a line that should be perfectly vertical or horizontal, such as the white column or the junction where the red wall meets the white wall. Click and drag from one end of this reference line to the other.

   Upon release, you'll see grayed-out areas indicating the new crop boundaries. This automatic cropping ensures your straightened image maintains proper rectangular dimensions.

7. Click Done at the bottom right to apply your changes. Watch as the thumbnail updates in the Bridge window, reflecting your professional-grade corrections.

   TIP: To remove a crop applied in Camera Raw, click and hold the Crop tool and select Clear Crop.

   NOTE: Camera Raw's Straighten tool necessarily crops portions of the image. For situations where you need to preserve the entire frame, consider performing straightening operations in Photoshop instead.

Adjusting a Raw Image

Let's dive deeper into exposure and tonal adjustments—skills that distinguish professional image processing from basic corrections.

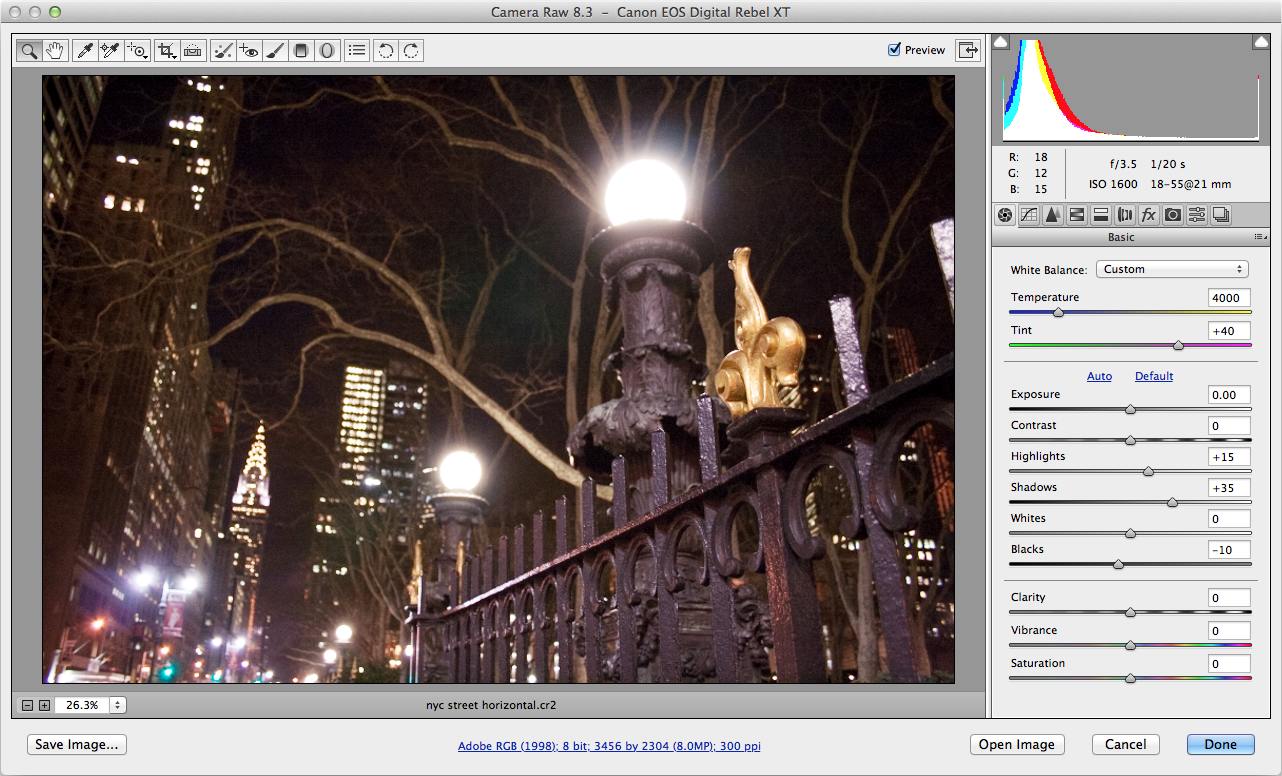

1. Double-click nyc street horizontal.cr2 to begin working with a more complex exposure scenario.

2. Hold off on clicking Done until instructed—we'll be making multiple coordinated adjustments.

   This image exhibits a slight color cast toward yellow-green, typical of mixed lighting conditions. Apply these precise corrections:

   Temperature:	5,000
   Tint:	+40

3. Now we'll address highlight detail recovery. Drag the Highlights slider right to brighten highlights, or left to darken them and recover detail in bright areas.

   PRO TIP: Hold Option (Mac) or Alt (Windows) while dragging to activate clipping preview—areas turning white indicate complete loss of highlight detail.

4. Set Highlights to +15 for optimal detail retention.

5. The shadow areas need lifting to reveal hidden detail. Set Shadows to +35 to brighten these darker regions without affecting midtones.

   NOTE: The same Option/Alt-dragging technique works for shadows—black areas in the preview indicate completely blocked shadows.

6. For final contrast refinement, set Blacks to –10. This deepens the darkest tones, adding punch and visual depth to the image.

7. Click Done to commit these professional-grade adjustments.

Copying Raw Settings from One File to Another

Professional workflows demand consistency, especially when processing images from the same shoot or lighting conditions. Bridge's settings synchronization feature is a massive time-saver for maintaining visual coherence across multiple images.

1. Ensure nyc street horizontal.cr2 is selected—this will be your source image for the perfectly dialed-in settings.

2. Copy the Camera Raw settings using either method:

   • Control-click (Mac) or Right-click (Windows) and choose Develop Settings > Copy Settings.
   • Use the keyboard shortcut: Cmd-Option-C (Mac) or Ctrl-Alt-C (Windows).

3. Select nyc street vertical.cr2—your target image.

4. Apply the copied settings using either approach:

   • Control-click (Mac) or Right-click (Windows) and select Develop Settings > Paste Settings.
   • Keyboard shortcut: Cmd-Option-V (Mac) or Ctrl-Alt-V (Windows).

5. In the Paste Camera Raw Settings dialog:

   • Verify the Subset dropdown shows Settings.
   • Uncheck Crop at the bottom—each image typically needs individual crop adjustments.

6. Click OK to apply the synchronized settings.

Adjusting Multiple Raw Files at Same Time

Batch processing represents the pinnacle of efficient Raw workflow management. This technique allows you to apply consistent adjustments across multiple images simultaneously—essential for professional productivity.

1. Click snow 1.cr2 to begin your selection.

2. Shift-click snow 3.cr2 to select all three snow images in the sequence.

3. With all three images selected, double-click any of them to launch the batch-capable Camera Raw interface.

4. Click Select All at the top left to ensure changes affect all loaded images—this is crucial for batch processing.

5. Locate the Saturation slider and drag it completely left to –100. This removes all color information, creating dramatic black and white conversions.

6. Notice all three thumbnails on the left update to black and white. During processing, you'll see a icon—this indicates preview generation in progress.

7. Click the snow 2.cr2 thumbnail (center image) to make individual adjustments.

8. Drag the Blacks slider left to approximately –65, darkening the image until the background building nearly disappears. This creates more dramatic contrast.

9. Click Select All again to prepare for synchronization across all images.

10. Notice that while all images are highlighted, snow 2.cr2 displays a darker border—this indicates it's the "master" image whose settings will be copied to others.

11. Click the Synchronize button to propagate changes.

12. In the synchronization dialog, ensure Settings is selected and click OK to apply uniform adjustments across the batch.

Batch Processing Multiple Raw Images

With your creative adjustments complete, it's time to export optimized files for your final deliverables. Professional workflows require specific output formats depending on the intended use—print, web, or archival purposes.

1. If your images aren't still selected in the Camera Raw interface, click Select All at the top left.

   These files have been professionally optimized and are ready for export as print-ready TIFF files for layout applications.

2. Click the workflow options link at the bottom of the window (it displays current settings like Adobe RGB (1998); 8 bit…).



3. Configure the Workflow Options for professional print output:

   Space:	Adobe RGB (1998) — Provides wider color gamut than sRGB, essential for print reproduction
   Depth:	8 Bits/Channel — Adequate for most professional applications while maintaining reasonable file sizes
   Image Sizing:	Keep Resize to Fit unchecked to preserve original camera resolution. The adjacent menu shows your camera's native resolution (e.g., Default (8.2MP)).
   Resolution:	300 pixels/inch — Industry standard for high-quality print reproduction

4. Click OK to confirm your professional output settings.

5. Click Save Images at the bottom left to begin the export process.

6. Under Destination, select Save in New Location to maintain organized file management.

7. Navigate to the Camera Raw Pics folder: Class Files > Bridge Files > Camera Raw Pics.

8. Create a new folder named Output files for Print Layout and click Select. This organizational approach is essential for professional client delivery.

9. Under File Naming, verify the first dropdown shows Document Name to maintain original file identification.

10. Set File Extension to .tif for maximum compatibility with professional layout applications.

11. Under Format, choose LZW compression. This lossless compression reduces file size by approximately 30% while maintaining full image quality—though verify compatibility with your specific layout software.

12. Click Save to initiate batch processing.

13. The Camera Raw window displays a countdown of remaining files during processing. You can safely click Done and close the interface—Bridge continues background processing, allowing you to work on other tasks while your exports complete.
