Advanced Model Relationships: Polymorphic

Topics Covered in This Ruby on Rails Tutorial:

Polymorphic Relationships, Making the Checkout Button Functional, Adding an Order Model, Checking Out & Emptying the Cart

Exercise Overview

In this exercise, we'll implement a fully functional checkout system. While we won't be integrating payment processing (which would typically involve services like Stripe or PayPal in production applications), we'll create the core e-commerce functionality by transitioning cart contents into persistent order objects. This pattern forms the backbone of virtually every e-commerce platform and demonstrates advanced Rails concepts including polymorphic associations.

1. If you completed the previous exercises, you can skip the following sidebar. We strongly recommend completing exercises 8A–10A before starting this one, as they establish the foundational cart functionality we'll be extending. If you haven't finished them, follow the setup instructions below.

   Prerequisites Required

   This exercise builds on exercises 8A-10A. If you haven't completed them, follow the Git checkout instructions to get the proper starting point.

Making the Checkout Button Functional

Currently, our checkout button is a non-functional placeholder. Let's transform it into a proper form submission that will handle the order processing workflow.

1. For this exercise, we'll continue working with the nutty folder located in Desktop > Class Files > yourname-Rails Class > nutty.

   If you haven't already done so, we suggest opening the nutty folder in your code editor if it allows you to (like Sublime Text does). This provides better project navigation and file management.

2. You should still have a window with two tabs open in Terminal from the last exercise, the first of which is running the server. If you don't, complete the following sidebar to get your development environment running.

   Converting Static Button to Functional Form

   1

   Replace HTML Button

   Convert the static anchor tag checkout button to a Rails form with proper routing

   2

   Configure Routes

   Add both POST and GET routes for cart completion in routes.rb file

   3

   Implement Controller Actions

   Create complete and complete_page methods in cart controller

Adding an Order Model

To properly handle completed purchases, we need an Order model that will store customer purchase history and serve as the permanent record of transactions. This is essential for business operations, customer service, and analytics.

1. Generate the Order model with its database table by typing the following in Terminal:

   rails g model order customer:references
   rails db:migrate

   This creates an Order model with a foreign key relationship to customers, establishing the foundation for order tracking.

2. Now we need to establish the bidirectional relationship between customers and orders. In your code editor, open: nutty > app > models > customer.rb

3. Add the relationship declaration shown in bold around line 8:

   has_one :cart
      has_many :orders
   end

   This establishes that a customer maintains one active cart for ongoing shopping, but accumulates multiple orders over time—a pattern that mirrors real-world e-commerce behavior.

4. Save the file.

5. In your code editor, open nutty > app > models > order.rb

6. Add the relationships and delegation shown in bold around line 8:

   class Order < ActiveRecord::Base
      belongs_to :customer

      has_many :line_items
      has_many :products, through: :line_items

      delegate :email, to: :customer
   end

   The delegation provides convenient access to customer email without additional queries, while the through relationship gives us direct access to ordered products for reporting and analytics.

7. Save the file.

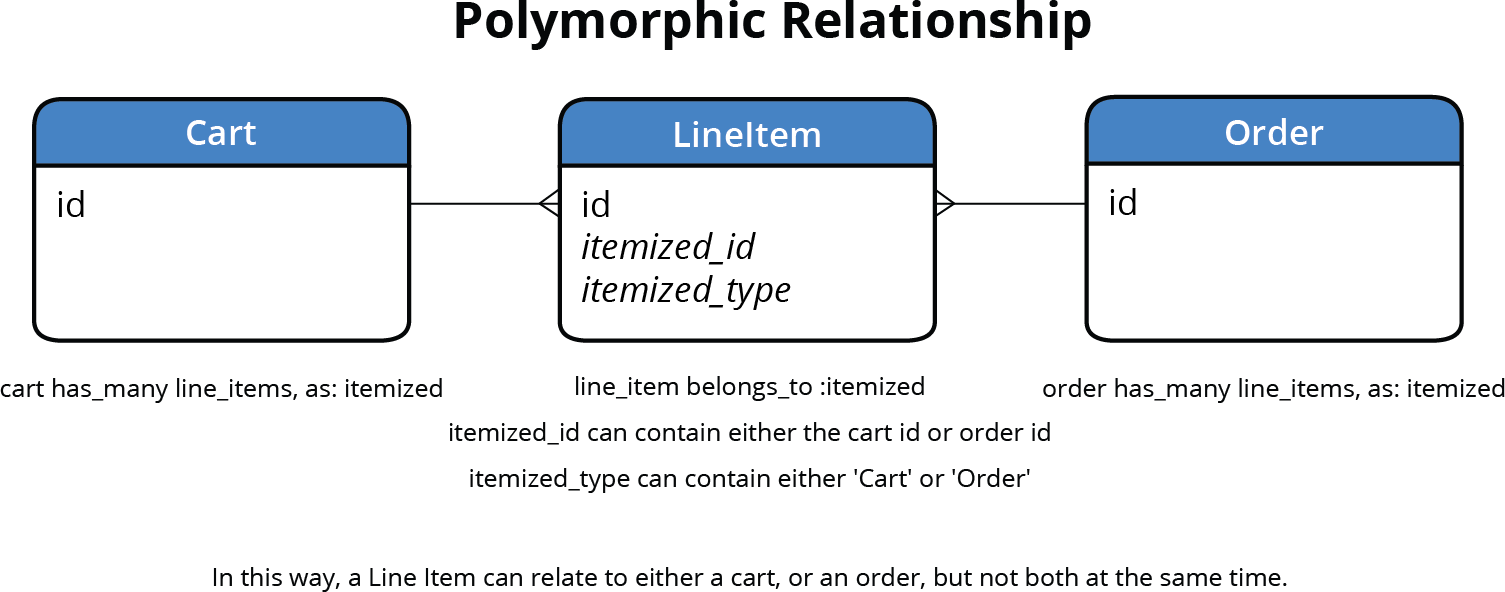

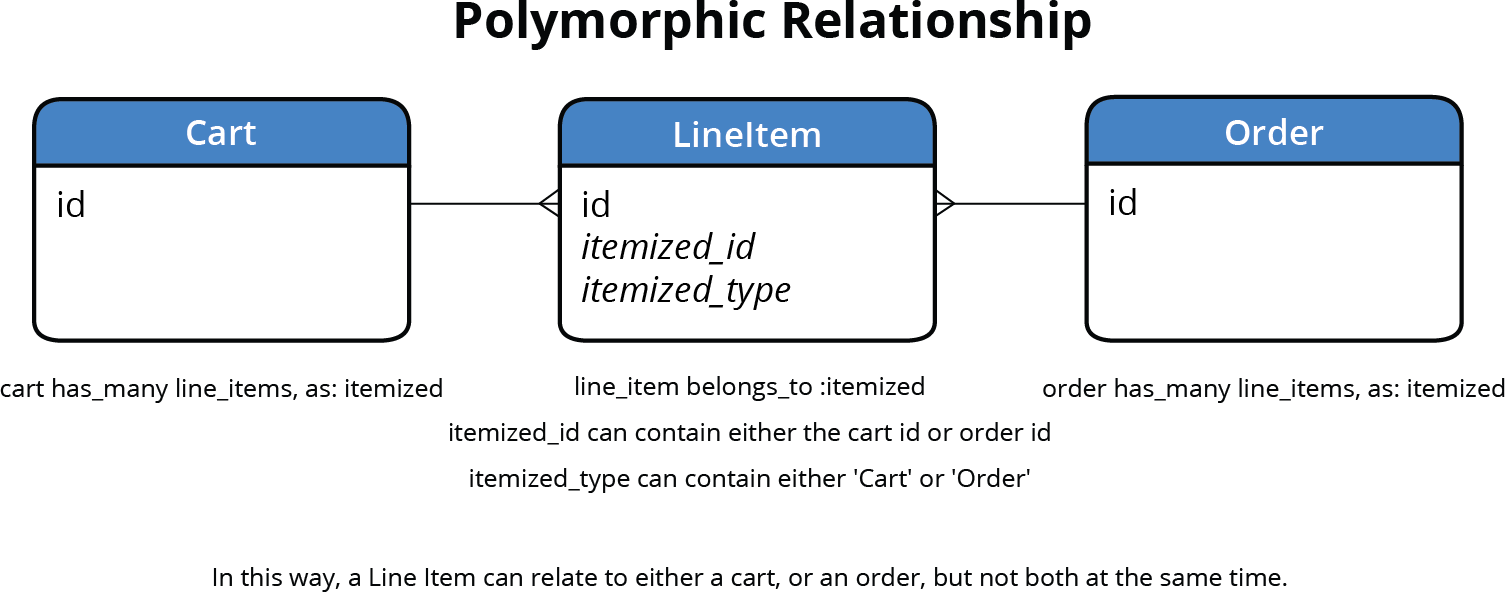

Polymorphic Relationships

Here's where we encounter a sophisticated Rails concept: polymorphic associations. Consider this challenge—both Cart and Order models need to contain line items, but a line item should only belong to one container at a time. A line item in someone's cart shouldn't simultaneously exist in a completed order, and vice versa.

We could add separate foreign keys for both cart_id and order_id to line items, but this approach is fragile and confusing. Which field should be populated? How do we prevent both from being set? Rails' polymorphic associations provide an elegant solution: they allow a model to belong to multiple types of parent models through a single, consistent interface.

This pattern is widely used in modern Rails applications for comments systems, attachments, and any scenario where multiple models share similar child relationships.

1. Generate the polymorphic association by running this migration in Terminal:

   rails g migration add_itemizable_to_line_items itemizable:references

   The name "itemizable" represents our polymorphic interface—line items can belong to any "itemizable" object (Cart or Order).

2. The generated migration needs significant customization for our polymorphic setup and data preservation. Close any open files to organize your workspace, then open the migration file.

3. In your code editor, open: nutty > db > migrate > #_add_itemizable_to_line_items.rb

   NOTE: The number represented by # is a timestamp and will vary.

4. This migration requires custom up/down methods because we're not only changing the schema but also migrating existing data. Polymorphic relationships store both an ID and a type, unlike simple foreign keys.

5. Replace the generated code with our polymorphic setup:

   class AddItemizableToLineItems < ActiveRecord::Migration[6.0]
      def self.up
         add_reference :line_items, :itemizable, polymorphic: true, index: true
      end

6. Remove the foreign_key constraint (polymorphic relationships handle this differently):

   class AddItemizableToLineItems < ActiveRecord::Migration[6.0]
          def self.up
             add_reference :line_items, :itemizable, polymorphic: true, index: true, foreign_key: true, null: false
          end

7. Now add the data migration logic to preserve existing cart relationships:

   class AddItemizableToLineItems < ActiveRecord::Migration[6.0]
      def self.up
         add_reference :line_items, :itemizable, polymorphic: true, index: true
         LineItem.all.each do |li|
            li.itemizable_id = li.cart_id
            li.itemizable_type = 'Cart'
            li.save
         end
      end

   This preserves all existing line items by converting their cart relationships to the new polymorphic format. Every current line item becomes associated with its respective Cart through the polymorphic interface.

8. Remove the old cart reference since it's now redundant:

   li.save
         end
         remove_reference :line_items, :cart
      end

9. Add the down method to make this migration fully reversible:

   remove_reference :line_items, :cart
      end

      def self.down
         add_reference :line_items, :cart, index: true
         LineItem.all.each do |li|
            li.cart_id = li.itemizable_id
            li.save!
         end
         remove_reference :line_items, :itemizable, polymorphic: true
      end
   end

   Reversible migrations are crucial for team development and production deployment safety. This down method restores the original cart-based relationships if needed.

10. Save the file and close it.

11. Apply the migration by running:

    rails db:migrate

    Now we need to update our model associations to work with the new polymorphic structure.

12. In your code editor, open nutty > app > models > order.rb

13. Update the line items relationship to use the polymorphic interface:

    has_many :line_items, as: :itemizable

    The as: :itemizable tells Rails this model can serve as the polymorphic parent for line items.

14. Copy this line—we'll need the same change in the Cart model.

15. Save the file, then close it.

16. In your code editor, open nutty > app > models > cart.rb

17. Replace the existing has_many :line_items with the polymorphic version around line 4.

18. Save the file, then close it.

19. The Product model needs more complex associations to work with polymorphic relationships. Open nutty > app > models > product.rb

20. Update the carts relationship to specify the polymorphic source:

    has_many :carts, through: :line_items, source: :itemizable, source_type: 'Cart'

    The source and source_type options tell Rails how to navigate the polymorphic relationship to reach carts specifically.

21. Copy this line and paste it directly below to create the orders relationship.

22. Modify the duplicate for orders:

    has_many :line_items
    has_many :carts, through: :line_items, source: :itemizable, source_type: 'Cart'
    has_many :orders, through: :line_items, source: :itemizable, source_type: 'Order'

23. Save the file, then close it.

24. Finally, update the LineItem model to use the polymorphic association. Open nutty > app > models > line_item.rb

25. Replace the cart relationship with the polymorphic one:

    class LineItem < ActiveRecord::Base
       belongs_to :itemizable, polymorphic: true
       belongs_to :product

    Note that we keep the product relationship unchanged—line items still belong to specific products regardless of whether they're in carts or orders.

26. Save the file and close it.

Checking Out & Emptying the Cart

Now comes the critical moment: implementing the actual checkout logic that transitions line items from cart to order. This operation must be atomic to prevent data inconsistencies in production environments.

1. In your code editor, open nutty > app > controllers > cart_controller.rb

2. Implement the core checkout logic in both controller methods:

   def complete
         @order = Order.new(customer: current_customer)
         @order.line_items = @cart.line_items
         @order.save
         @cart.destroy
         redirect_to '/cart/complete' and return
      end

      def complete_page
        @order = current_customer.orders.last
        @title = "Your order is complete."
       end

   This sequence creates a new order, transfers all line items from cart to order (the polymorphic association handles updating the foreign keys automatically), saves the order, and destroys the empty cart. The customer gets a fresh cart automatically when they add their next item.

3. Save the file.

4. Update the confirmation page template to display order information instead of cart data. Open nutty > app > views > cart > complete_page.html.erb

5. Replace all instances of @cart with @order throughout the file. There are four instances around lines 20, 45, 66, and 80.

   If you're using Sublime Text for efficient editing:

   • Around line 20, highlight @cart in: <% @cart.line_items.each do |line_item| %>
   • Press Ctrl–Cmd–G to select all instances in the file.
   • Type @order to replace all instances simultaneously.

   If using another editor, update each instance manually:

   • Line 20: <% @order.line_items.each do |line_item| %>
   • Line 45: <td><%= number_to_currency @order.subtotal %></td>
   • Line 66: <td><%= number_to_currency @order.total %></td>
   • Line 80: <%= @order.email %>

6. Save the file, then close it.

7. The Order model needs calculation methods for subtotals and totals. Rather than duplicating the cart logic, we'll extract it into a reusable module—a common Rails pattern for shared functionality.

   In your code editor, open nutty > app > models > cart.rb

8. Cut (Cmd–X) the calculation methods:

   delegate :email, to: :customer

      def subtotal
         return 0 unless line_items.any?
         line_items.sum(&:subtotal)
      end

      def total
         subtotal
      end
   end

9. Save the file.

   We'll create a module to share this calculation logic between Cart and Order models, following the DRY principle and Rails best practices for code organization. This modular approach makes the codebase more maintainable and testable.
