Creating a Simple Animated GIF

Topics Covered in This Photoshop Tutorial:

Master the fundamentals of Photoshop animation: Creating Frame Animations, Adding and Managing Frames, Setting Precise Frame Duration Using the Frame Delay Option, Testing Your Animation, and Saving As an Optimized Animated GIF

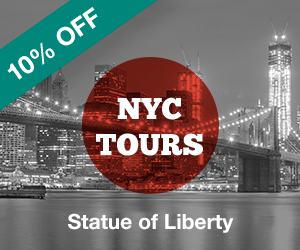

Exercise Preview

Exercise Overview

In this comprehensive exercise, you'll master the art of creating compelling animated content in Photoshop. We'll guide you through building a professional-grade flashing text animation that captures attention and drives engagement. You'll learn to create frame-based animations using an existing Photoshop file, test your work efficiently, and export optimized GIF files ready for web deployment. This foundational skill remains essential for digital marketers, web designers, and content creators in 2026, as animated GIFs continue to dominate social media and web advertising.

Previewing the Finished Animation

1. Download the class files. Refer to the Downloading the Class Files section at the beginning of this workbook for detailed instructions on downloading and installing the required assets.

2. Launch your preferred web browser (Chrome, Safari, Firefox, or Edge).

3. Press Cmd–O (Mac) or CTRL–O (Windows) to open the file dialog and navigate to Desktop > Class Files > Animated GIFs Class > NYC Tours.

4. Double-click on nyc-tours.gif to open the finished animation.

   Study the animation carefully as it loops. Notice how the cycling list of tourist destinations creates smooth transitions at the bottom, followed by the eye-catching flashing "10% OFF" banner that appears over the static NYC background. This combination of subtle cycling text and attention-grabbing flash elements demonstrates effective visual hierarchy in animated design.

Getting Started

Before we begin creating our animation, let's establish our working environment and prepare our files for optimal workflow.

1. Launch Photoshop.

   NOTE: This tutorial has been tested with Photoshop 2020 and remains compatible with newer versions through 2026. If you're using an older version, most functions should work similarly, though menu locations may vary slightly.

2. Navigate to File > Open.
3. Browse to Desktop > Class Files > Animated GIFs Class > NYC Tours.
4. Double-click on nyc-tours.psd to open the source file.
5. Immediately save a working copy by going to File > Save As.
6. Name the file yourname-nyc-tours.psd and save it in the same Class Files > Animated GIFs Class > NYC Tours directory.
7. Click Save to create your working file.

8. If the Photoshop Format Options dialog appears asking about Maximize Compatibility, leave it checked and select Don't show again before clicking OK. This ensures your file remains compatible across different Photoshop versions.

Creating a Frame Animation

Our Photoshop file contains all the visual elements needed for our animation, but currently exists as a static layered composition. The next step is transforming this static design into a dynamic, time-based animation using Photoshop's Timeline panel.

1. Access the Timeline panel by navigating to Window > Timeline.

   Photoshop offers two distinct animation approaches within the Timeline panel: Create Video Timeline and Create Frame Animation. The Video Timeline functions similarly to professional video editing software, displaying each layer's behavior across a continuous timeline—ideal for complex motion graphics and video projects.

   Frame Animation takes a more traditional approach, showing discrete snapshots of your composition at specific moments in time. Each frame represents a complete state of your design, making it perfect for GIF creation and simpler animated effects like our flashing text project.

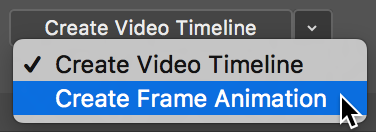

2. If the Timeline panel displays Create Video Timeline, click the dropdown arrow next to it and select Create Frame Animation as shown below.



3. Click the Create Frame Animation button in the Timeline panel to initialize your animation workspace.

Adding Frames

The foundation of our animation involves cycling through different NYC tourist attractions before culminating in our promotional message. This requires creating multiple frames and strategically managing layer visibility to create smooth transitions between each destination.

1. Open the Layers panel (Window > Layers) if it's not already visible in your workspace.

2. In the Layers panel, click the expansion arrow next to the NYC Tourist Spots folder to reveal its contents.

   You'll notice five carefully prepared text layers, each representing a different attraction. Currently, only the Statue of Liberty text layer is visible, while the others remain hidden. This organized structure allows us to create smooth transitions by revealing each layer in sequence.

3. Create your second frame by clicking the Duplicates selected frames button at the bottom of the Timeline panel.

   This generates a new frame identical to your first frame, providing the foundation for our next animation state. Each duplicate frame inherits the exact layer visibility and positioning of the selected source frame.

4. With the second frame selected in the Timeline panel (highlighted in gray), navigate to the Layers panel and hide the Statue of Liberty layer by clicking its visibility eye icon .

5. Reveal the Empire State Building layer by clicking in the empty visibility box where the eye icon should appear.

6. Test your work by clicking between the first and second frames in the Timeline panel to observe the text transition.

   Building Your Animation Sequence

   1

   Duplicate Frame

   Click 'Duplicates selected frames' button to create a new frame identical to the current one

   2

   Modify Layers

   Hide current text layer by clicking the eye icon, then show the next text layer for the new frame

   3

   Preview Changes

   Click between frames to see the differences and verify your animation sequence

   4

   Repeat Process

   Continue duplicating and modifying frames until you have all required animation states

Setting Frame Duration

Timing is crucial in animation—too fast and viewers miss your message, too slow and you lose their attention. Let's establish optimal frame durations that balance readability with engagement.

1. Notice that each frame currently displays 0 sec. at the bottom, indicating zero duration.

   Zero-duration frames create instantaneous transitions that viewers cannot process effectively. We need to establish meaningful timing for each frame to create a readable, engaging animation sequence.

2. Click 0 sec. on the first frame to access the duration menu.

3. Select 1.0 from the dropdown menu to set the first frame's duration to 1 second.

   Rather than setting each frame individually—a time-consuming process—Photoshop allows us to adjust multiple frame durations simultaneously, significantly streamlining our workflow.

4. Click on the second frame to select it.

5. Hold Shift and click on the fifth frame to select frames 2 through 5 simultaneously.

6. Click 0 sec. on any selected frame and choose 1.0 to set all selected frames to 1 second duration.

   Your animation now has consistent 1-second intervals, providing viewers adequate time to read each destination while maintaining engaging pacing.

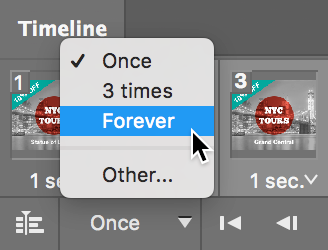

7. Configure your animation to loop continuously by accessing the looping dropdown menu at the bottom-left of the Timeline panel. Select Forever to ensure your animation repeats indefinitely:



Testing the Animation

Before proceeding with additional effects, let's preview our work to ensure smooth transitions and proper timing. Photoshop's built-in preview system allows real-time testing without exporting files.

1. Click the Play button at the bottom of the Timeline panel to begin playback.

2. Observe how the text transitions smoothly through each NYC attraction at 1-second intervals, creating a professional cycling effect that maintains viewer interest while showcasing multiple destinations.

3. When satisfied with the preview, click the Stop button to halt playback.

Adding Flashing Text

Now we'll implement the attention-grabbing flashing effect for our "10% OFF" promotional banner. Flashing text, when used strategically, creates powerful call-to-action elements that significantly increase click-through rates in digital advertising.

1. Select frame 5 in the Timeline panel as your starting point.

2. Click the Duplicates selected frames button to create frame 6.

3. In the Layers panel, click the expansion arrow next to the 10% OFF folder to locate the promotional text layer.

4. With frame 6 selected in the Timeline panel, hide the 10% OFF text layer by clicking its visibility eye.

5. Create frame 7 by clicking the Duplicates selected frames button again.

6. In frame 7, make the 10% OFF text layer visible again by clicking in its visibility box.

7. Generate two additional frames by clicking the Duplicates selected frames button twice in succession, creating frames 8 and 9.

8. Select frame 8 in the Timeline panel.

9. Hide the 10% OFF text layer in frame 8 to create the second "off" state in your flashing sequence.

10. Test your flashing effect by clicking the Play button .

    The flashing effect is working, but the 1-second intervals are too slow for effective attention-grabbing. Optimal flashing rates for promotional content typically range from 0.1 to 0.3 seconds.

11. Select frame 6 in the timeline.

12. Hold Shift and click frame 9 to select all frames containing the flashing effect.

13. Click on the duration indicator of frame 6 and select 0.2 to set all selected frames to 0.2 seconds, creating a rapid, attention-grabbing flash.

14. Test the improved timing by clicking Play .

    The flashing is now appropriately attention-grabbing, but the final frame needs adjustment to give viewers time to absorb the complete promotional message before the animation loops.

15. Select frame 9 and extend its duration to 2 seconds (2.0) to create a pause that allows viewers to read the full advertisement.

16. Conduct a final test by clicking Play . The animation now demonstrates professional pacing and effective visual hierarchy.

17. Save your work with File > Save to preserve all animation settings.

Saving As an Animated GIF

The final step involves exporting your animation as an optimized GIF file suitable for web deployment. Proper optimization is crucial—unoptimized GIFs can be prohibitively large, causing slow load times that harm user experience and SEO rankings.

1. Navigate to File > Export > Save for Web (Legacy).

   NOTE: Adobe labels this feature as Legacy because active development has shifted to newer export methods like File > Export > Export As. However, as of 2026, Save for Web remains the most reliable option for animated GIF creation, offering comprehensive compression controls and animation-specific features that newer methods still lack. Adobe maintains this tool specifically because animated GIF export capabilities haven't been fully replicated in the newer systems.

2. In the Save for Web dialog, click the 2-Up tab for side-by-side comparison viewing.

   This split view displays your original uncompressed image alongside the compressed preview, allowing real-time quality assessment as you adjust optimization settings.

3. Select View > Fit on Screen to maximize your preview area for detailed quality inspection.

4. From the Preset dropdown menu, select GIF 128 No Dither as your starting point.

   Effective web graphics require balancing file size against visual quality. Animated GIFs present additional complexity because compression settings must maintain quality across all frames, not just a single static image.

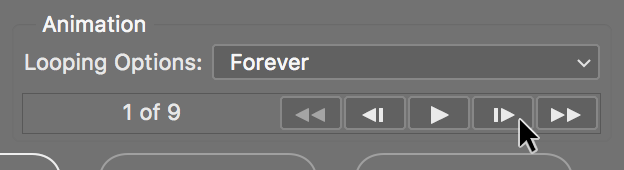

5. Utilize the animation preview controls located at the bottom of the dialog under Animation. These controls allow you to play the animation and step through individual frames to verify compression quality throughout the entire sequence.

   NOTE: The preview playback may run slower than the final exported file due to processing overhead.



6. Before adjusting compression settings, navigate to a frame showing most visual elements, such as frame 2, to ensure your optimization testing represents the animation's most complex state.

7. Increase Colors to 256 for maximum color fidelity.

   GIFs support up to 256 colors maximum. Reducing color count decreases file size but may introduce visible color banding or posterization effects in gradients and photographic elements.

8. Note the current file size displayed below the preview—approximately 59KB in this case.

   This baseline measurement helps you evaluate the effectiveness of subsequent optimization adjustments.

9. Test aggressive optimization by reducing Colors to 128.

10. Use the animation controls to step through each frame, checking for quality degradation, particularly in gradient areas and photographic elements.

11. The 128-color version maintains excellent quality while reducing file size to approximately 44KB—a 25% reduction with minimal visual impact.

    This demonstrates the importance of testing multiple compression levels to find optimal balance points.

12. Experiment further by reducing colors to 64.

13. Step through the animation frames carefully to assess quality impact.

14. At 64 colors, you'll notice visible banding artifacts in the teal banner gradient and construction elements in the background. While file size decreases further, the quality loss outweighs the bandwidth savings.

15. Restore Colors to 128 for optimal quality-to-filesize ratio.

16. Change the color reduction algorithm from the dropdown menu to Perceptual.

    Perceptual, Selective, and Adaptive algorithms analyze your specific image content to intelligently choose the most important colors. Perceptual prioritizes colors that human vision perceives as most significant, often producing the best results for mixed content like our NYC tourism advertisement.

17. Observe the file size reduction to approximately 42KB with the Perceptual algorithm.

18. Address the transparency setting: since our animation contains no transparent areas, uncheck Transparency.

19. Surprisingly, note that the file size increases when transparency is disabled.

    This counterintuitive behavior occurs due to GIF's complex compression algorithms. Sometimes enabling transparency, even when unused, allows the compression engine to work more efficiently. Since transparency doesn't affect our visual output, keep it enabled for the file size benefit.
