Magazine Cover: Free InDesign Tutorial

What You'll Master in This InDesign Tutorial

Advanced layout techniques including placing transparent artwork, creating and managing color swatches, and implementing type on curved paths—essential skills for professional magazine design and editorial layouts.

Exercise Preview

Exercise Overview

Ever wondered how designers seamlessly layer elements to create compelling magazine covers? The key technique we'll explore—placing a subject's silhouette in front of a logo—is a cornerstone of professional editorial design. We'll also master InDesign's Type on a Path tool, enabling you to create dynamic text that follows organic shapes and contours. These techniques are fundamental to creating the sophisticated, layered compositions you see in top-tier publications.

Setting Up Your Document

1. Create a new document with professional magazine specifications:
   • Set Width to 10 in and Height to 12 in for a standard magazine format.
   • Uncheck Facing Pages since we're creating a single cover design.
   • Ensure Columns is set to 1 for full control over layout placement.
   • Expand the Margins section and verify the link button is active, then set all Margins to 0 in for a full-bleed design.
   • In the Bleed and Slug section, set all Bleed options to 1/8 in—the industry standard for print production.
2. Click Create to generate your document.

Importing and Placing Your Assets

Efficient asset management is crucial for complex layouts. We'll import multiple files simultaneously to streamline our workflow.

1. Import all required assets in one operation using File > Place (Cmd–D on Mac or Ctrl–D on Windows).

2. Navigate to the InDesign Class folder, then the Interview Magazine subfolder:
   • Click charlize.tif to select it.
   • Hold Shift and click Magazine.txt to select the entire range, including InterviewLogo.eps.
   • Click Open to load all files into your cursor.

3. Your cursor now contains multiple assets (indicated by the number 3). Use the Arrow keys to cycle between loaded files until Charlize's image appears in the thumbnail preview.

   Position precisely for professional results:
   • Align the cursor with the top left bleed guide for accurate placement.
   • Click once to place the primary image, which should extend to the bleed boundaries.



4. The background image now fills the bleed area. Your cursor automatically loads the Interview logo—click near the top left to place it temporarily.

5. For the text content, drag to create a text frame positioned over the mountainous area to the left of the subject, referencing the exercise preview for optimal placement.

6. Apply professional typography by selecting the Type tool and setting the font to Myriad Pro Bold Condensed—a clean, readable choice for editorial design.

7. Fine-tune positioning using the Selection tool :

   • Position the text frame 1p2 from the left margin with approximately 16p width for optimal readability.
   • Adjust all elements to match the exercise preview, ensuring professional spacing and alignment.
8. Center the Interview logo using InDesign's precision alignment tools via Window > Object & Layout > Align.
9. Set the alignment reference by clicking the Align To dropdown and selecting Align to Page.

10. Click Align horizontal centers for perfect logo placement.

Creating Professional Layer Effects

The technique of bringing elements in front of logos creates visual hierarchy and depth—a hallmark of sophisticated editorial design. This requires a pre-silhouetted image created in Photoshop, where background removal is handled most effectively. We'll demonstrate how to seamlessly integrate this prepared asset.

1. Select the main Charlize image using the Selection tool .

2. Copy the frame using Edit > Copy.

3. Execute Edit > Paste in Place to create an exact duplicate in the same position.

4. The duplicated frame temporarily obscures other elements—this is intentional and creates the foundation for our layering effect.

5. Replace the duplicated image content by going to File > Place and selecting charlize silo.psd—the pre-silhouetted version that will appear to "break through" the logo.

Mastering Object Selection in Complex Layouts

As layouts become more complex, efficient object selection becomes critical for maintaining design momentum.

1. Access objects behind others by holding Command (Mac) or Control (Windows) while clicking—this "click-through" technique is essential for complex editorial layouts.
2. Optimize your workflow by bringing frequently accessed elements forward: select the text frame and choose Object > Arrange > Bring to Front to eliminate repeated click-through operations.

Implementing Dynamic Type on Path Effects

Type on a path creates organic, flowing text that integrates seamlessly with photographic elements—a technique widely used in contemporary magazine design for added visual interest and brand differentiation.

1. Clear current selections with Edit > Deselect All to ensure clean path creation.

2. Set up proper path appearance by clicking Default Fill and Stroke in the Tools panel—this provides a visible stroke for path creation without affecting final typography.

3. Select the Pen tool for precise path creation.

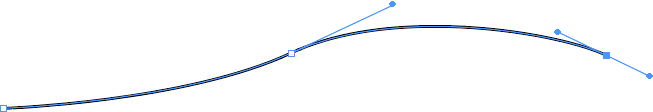

4. Create an organic path following the mountain contours using three anchor points. Drag horizontally from each point while varying vertical direction to match the landscape. The path should create a natural curve that complements the photographic elements below.



5. Switch to the Type on a Path tool (accessed by clicking and holding the standard Type tool ).

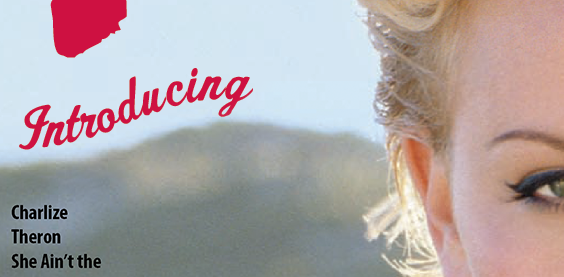

6. Click the path and type Introducing to create flowing text that follows your custom curve.

7. Apply distinctive styling: 38 pt Brush Script Std in Pantone 200 CVC for elegant script typography that complements the editorial aesthetic.

8. Return to the Selection tool for final adjustments.

9. Clean up the path appearance by removing structural elements:
   • Ensure Formatting affects container is active.
   • Activate the Stroke selector in the Swatches panel.
   • Apply the [None] swatch to make the path invisible while preserving the text.
10. Fine-tune the path curve using the Direct Selection tool to adjust individual anchor points and control handles.

11. Save your work as yourname-magazineCover to preserve this professional layout technique.

Advanced Typography Refinement

Professional magazine design demands precise typographic hierarchy. The following specifications create visual flow and reader engagement through strategic size and leading relationships.

1. Apply these carefully calibrated specifications (Size/Leading format) to create professional typographic hierarchy:

   Charlize:	62/49
   Theron:	62/49
   She Ain't the:	24/24
   Girl Next Door:	24/24
   Photos by Herb Ritts:	17/19
   Big, Bad:	35/45
   Brad Pitt:	46/40
   Pix!:	79/63
   Why Millions Wish:	24/24
   He Were the:	24/24
   Boy Next Door:	24/24
   Clip 'n' Save!:	21/21 [Apply Brush Script Std for stylistic contrast]
   by Steven Klein:	17/19

2. Add publication details by creating a small text frame below the "ew" portion of the Interview logo for the issue date.

3. Insert Novembrrrr 2026 (or current year) to maintain contemporary relevance.

4. Format as 14 pt Myriad Pro Bold Condensed for consistency with the overall typographic system.

Professional Color Strategy and Swatch Management

Effective color management distinguishes professional work from amateur attempts. We'll create a cohesive color palette while maintaining efficient swatch organization.

1. Clear selections using Edit > Deselect All before color work to prevent accidental applications.

2. Optimize your Swatches panel by removing unused colors. Note that importing the Interview logo automatically brought the Pantone 200 CVC spot color—InDesign intelligently preserves colors embedded in placed artwork, ensuring color consistency across project elements.

3. Access the Swatches panel menu and select Select All Unused to identify unnecessary swatches.

4. Click the Delete button to remove clutter and maintain organized color management.

5. Create custom colors via the Swatches panel menu → New Color Swatch.

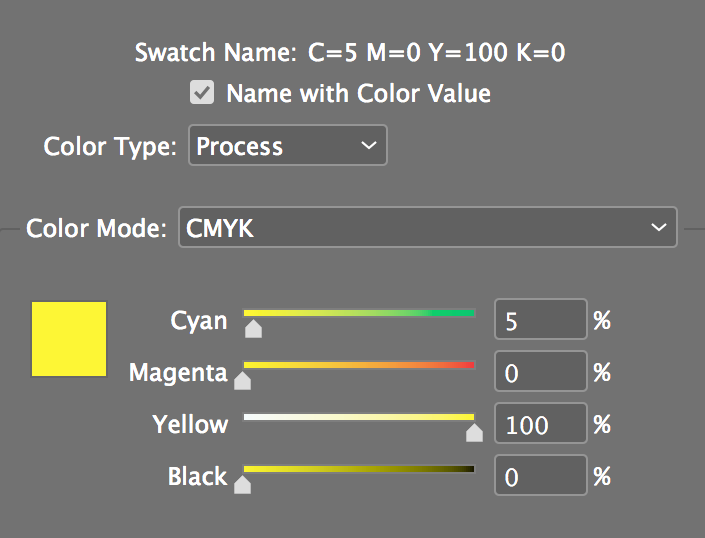

6. Configure the first custom color with Add to CC Library unchecked (if visible) and these CMYK values:



7. Click Add (not OK) to create the swatch while remaining in the dialog for efficient workflow.

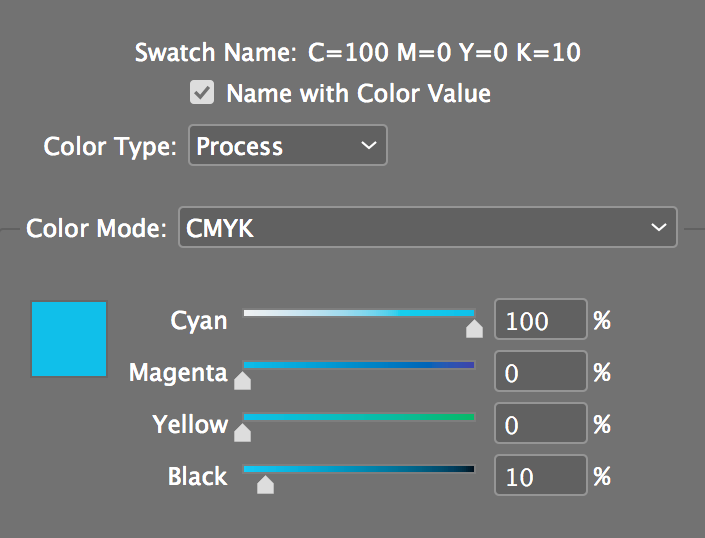

8. Create the second color using these specifications for a complementary blue:



9. Click OK to complete color creation.

10. Establish a baseline by selecting all text and applying white ([Paper] swatch) as the foundation color.

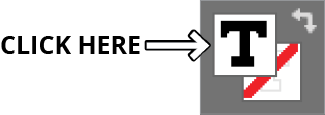

11. Ensure proper color targeting by verifying the Fill swatch is active at the top of the Swatches panel—this focuses color application on text rather than containers.



12. Apply the [Paper] swatch for clean white text that will contrast effectively against the photographic background.

13. Create focal points by selecting Charlize Theron and applying the yellow swatch (C=5 M=0 Y=100 K=0) for brand-appropriate highlighting.

14. Apply consistent yellow highlighting to these supporting elements for cohesive visual hierarchy:

    • Herb Ritts
    • Big, Bad Brad Pitt Pix!
    • Clip 'n' Save!
    • The "by" attribution line

15. Apply Pantone 200 CVC to Novembrrrr 2026 for brand consistency with the logo color palette.

16. Create playful contrast by selecting only brrrr and applying the blue swatch (C=100 M=0 Y=0 K=10) for subtle brand personality.

Professional Print Production (Optional)

Proper print setup ensures your design translates accurately from screen to print, maintaining professional standards for commercial production.

1. Configure print settings via File > Print with these professional specifications:

   • Select your target Printer from available options.
   • Navigate to Marks and Bleed and enable Crop Marks for accurate trimming guides.
   • Check Use Document Bleed Settings to include the 1/8" bleed for proper print production.
   • In the Advanced section, set Transparency Flattener to [High Resolution] for optimal output quality with complex layering effects.
   • Return to Setup for final paper configuration.
