Intro to SVG (Scalable Vector Graphics)

Topics Covered in This HTML & CSS Tutorial:

Adding SVG to a Webpage, Sizing SVG, Web Servers: Configuring A.htaccess File for SVG & Gzip

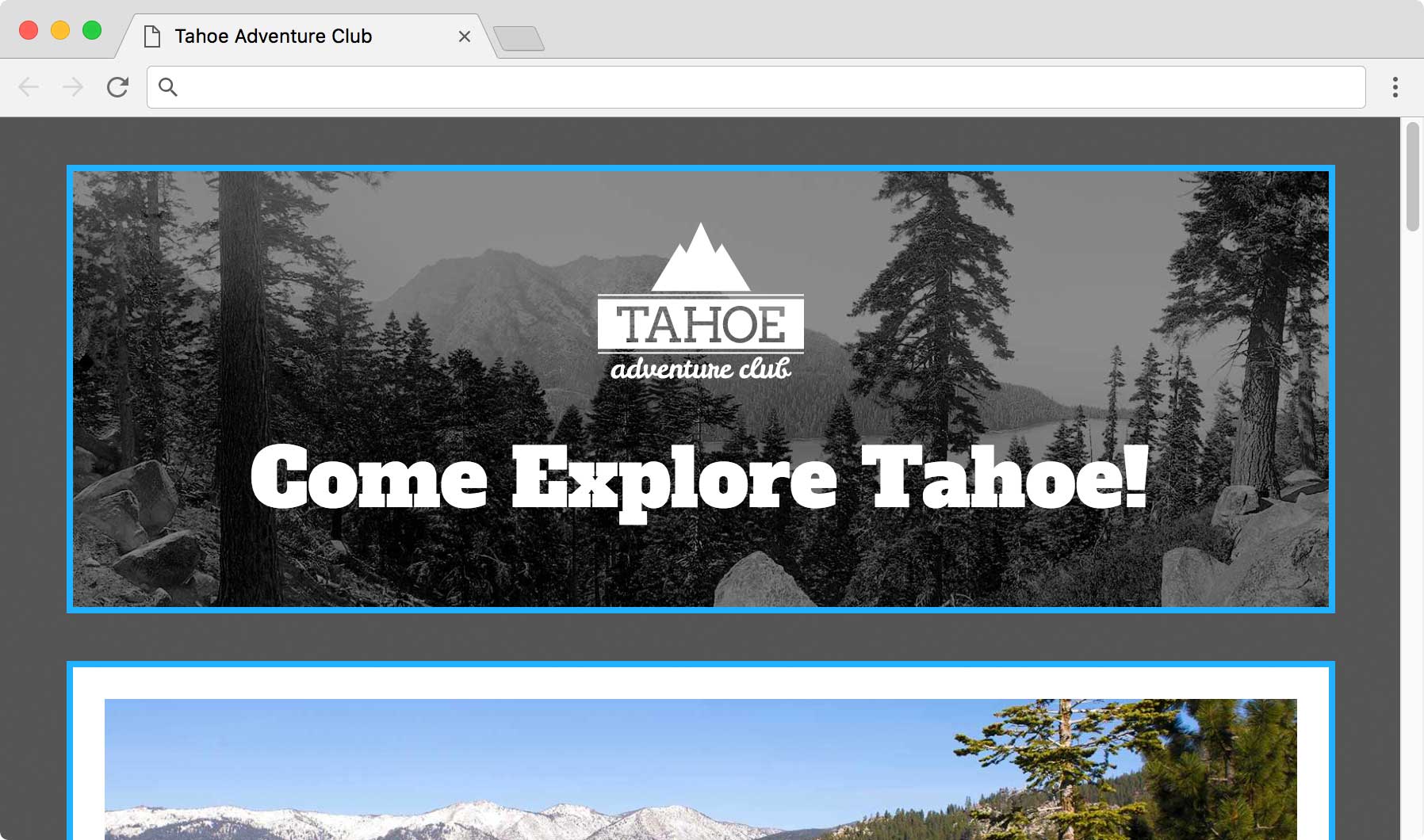

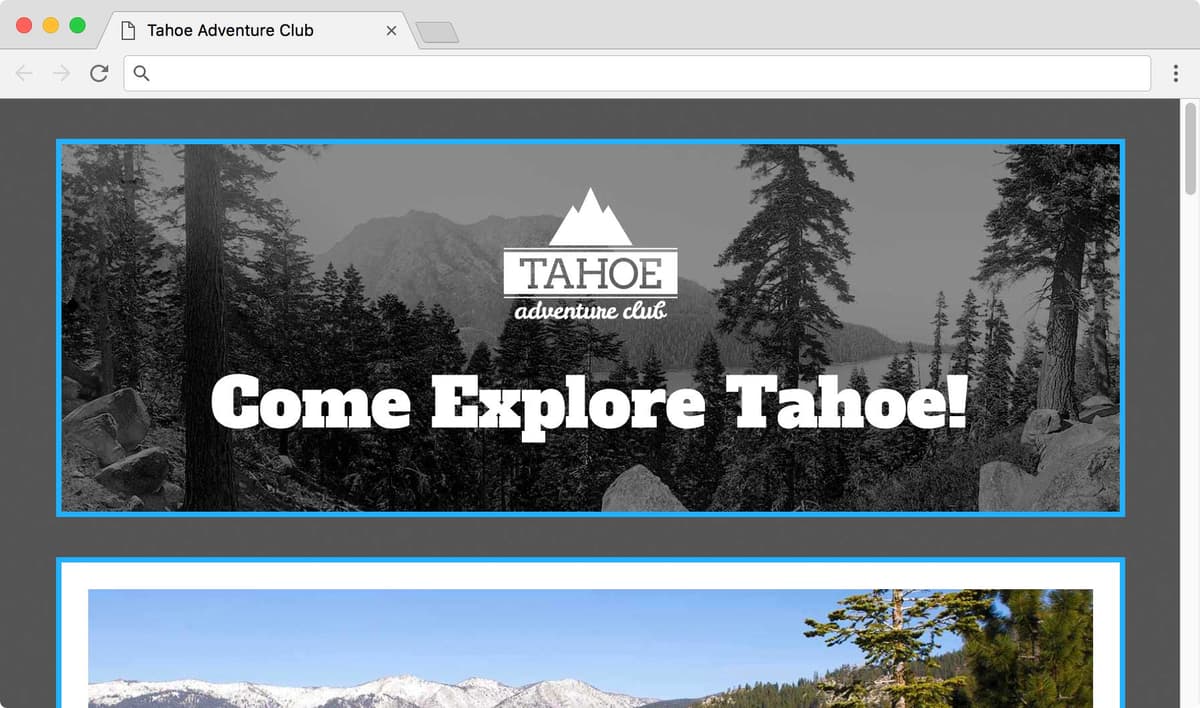

Exercise Preview

Exercise Overview

In this exercise, you'll master SVG (scalable vector graphics), one of the most powerful tools in modern web development. While high-resolution pixel-based graphics often bloat your site with massive file sizes, vector graphics deliver crisp, scalable visuals with significantly smaller footprints. SVG allows you to embed vectors natively into webpages, eliminating the need for separate image requests and reducing load times.

While photographs and complex imagery remain best suited to pixel-based formats, interface elements like icons, logos, and illustrations should almost always be created as vectors and saved as SVG. This approach ensures your graphics look razor-sharp on everything from standard displays to high-DPI screens, while maintaining optimal performance across all devices.

Getting Started

The files for this exercise build upon the previous exercise with additional SVG assets and configuration files that mirror real-world development scenarios.

1. In your code editor, close any files you may have open to maintain a clean workspace.
2. For this exercise we'll be working with the Tahoe SVG folder located in Desktop > Class Files > Advanced HTML CSS Class. If you're using Visual Studio Code or a similar editor, open the entire folder to access the project structure efficiently.
3. Open index.html from the Tahoe SVG folder.
4. Preview index.html in a browser to establish your baseline.
5. Notice the header currently displays Tahoe Adventure Club as plain text. We'll replace this with the company's professionally designed SVG logo, demonstrating how vector graphics enhance brand presentation.

Adding SVG to a Webpage

We've prepared two versions of the company logo to demonstrate different SVG export configurations and their impact on implementation. The beauty of SVG lies in its simplicity—you can embed it using the standard img tag, just like any other image format, but with vector precision.

1. Return to your code editor.

2. On line 15, replace the text with an img tag, as shown below in bold:

   <header>
      <p>
         <img src="img/tahoe-logo.svg" ALT="Tahoe Adventure Club">
      </p>

3. Save the file.
4. Preview index.html in a browser to see the logo integration. The implementation is identical to any raster image, but this vector-based logo will maintain perfect clarity at any scale and resolution—a crucial advantage in our multi-device web landscape.
5. Keep the page open in the browser, but return to your code editor.

6. To demonstrate different export configurations, switch to the alternate logo by adding -white to the filename as shown below in bold:

   <img src="img/tahoe-logo-white.svg" ALT="Tahoe Adventure Club">

7. Save the file.

8. Preview index.html in a browser. The logo now appears significantly larger, illustrating how SVG export settings directly impact web implementation.

   Despite the unexpected size, notice how the edges remain perfectly crisp. This demonstrates SVG's core advantage—infinite scalability without quality degradation, regardless of screen resolution or zoom level.

9. Resize the browser window to observe how the logo dynamically scales, filling the available header space while respecting the padding constraints that prevent content from touching the blue border.

This size variation between the two logos reveals an important aspect of SVG workflow that directly impacts your development process.

Sizing SVG

Understanding SVG sizing behavior is critical for efficient workflow and cross-browser compatibility. When exporting SVG from Adobe Illustrator, the Responsive option fundamentally changes how your SVG behaves in web contexts.

When Responsive is unchecked, Illustrator embeds explicit width and height values into the SVG file, causing it to display at its designed dimensions (as demonstrated by the first logo). When Responsive is checked, these dimensional constraints are omitted, causing the SVG to expand and fill its container (as seen with the oversized white logo).

While responsive SVGs might seem appealing, this approach creates two significant development challenges:

• Browser compatibility issues: Microsoft Edge and some older browsers occasionally struggle with dimensionless SVGs, potentially causing rendering failures or layout inconsistencies.
• Required CSS sizing: Every SVG implementation requires explicit sizing rules rather than defaulting to sensible dimensions, adding unnecessary complexity to your stylesheet.

Based on these considerations, we strongly recommend unchecking the Responsive option when exporting SVGs from Illustrator. However, since we're working with an existing responsive SVG, we'll demonstrate how to manually add dimensional constraints to the SVG code.

NOTE: Modern design tools like Sketch and Adobe XD automatically include width and height attributes in their SVG exports, eliminating these compatibility concerns.

1. Return to your code editor.

2. Let's examine the SVG source code. In your code editor, open tahoe-logo-white.svg from the img folder.

   Don't be intimidated by the extensive code structure. SVG files contain coordinate data for every vector point, curve, and fill—most of this code is automatically generated. We're focusing on a single, crucial element that controls the entire graphic's behavior.

   NOTE: SVG files use XML (eXtensible Markup Language) syntax, which shares many conventions with HTML. While specialized graphics applications handle SVG creation in production environments, understanding the underlying structure empowers you to make targeted adjustments when necessary.

3. Locate the opening svg tag and find viewBox="0 0 256 195.13". This attribute defines the SVG's coordinate system: starting at coordinates (0,0) and extending 256 pixels horizontally by 195.13 pixels vertically.

   NOTE: The viewBox coordinates establish the SVG's internal dimensions and proportions, functioning as a virtual canvas that can be scaled to any display size while maintaining aspect ratio.

4. Add explicit width and height attributes immediately after the viewBox declaration:

   viewBox="0 0 256 195.13" width="256" height="195.13">

5. Save tahoe-logo-white.svg and close the file.

6. Return to the browser and reload index.html. The logo now displays at its intended dimensions—the exact size created in Illustrator.

   While this might be the perfect size for your design, SVG's flexibility allows for dynamic resizing through CSS, providing responsive behavior without quality loss.

7. Return to your code editor to implement custom sizing.
8. Open main.css from the css folder.

9. Since the header contains only this logo image, we can create a targeted CSS rule. Add the following rule after the existing header declaration:

   header img {
      width: 130px;
   }

10. Save main.css and reload index.html in the browser. The logo now displays at the optimized size for this layout.

    This demonstrates SVG's greatest strength: unlimited scalability. You can specify any dimensions—pixels, percentages, viewport units—and the vector graphics maintain perfect clarity. This scalability makes SVG indispensable for responsive design and high-DPI displays.

Understanding SVG creation workflows ensures consistent, high-quality results across your projects.

Web Servers: Configuring .htaccess File for SVG & Gzip

SVG files display flawlessly in local development environments, but production servers may require explicit configuration to serve them correctly. Apache, powering a significant portion of web servers globally, doesn't always include optimal SVG support by default.

If your SVG files fail to display after deployment while working perfectly locally, the server likely requires MIME type configuration through an .htaccess file. This configuration file, though invisible on Unix-based systems, is fully accessible through modern code editors and provides granular control over server behavior.

Rather than creating this configuration from scratch, we've leveraged the battle-tested HTML5 Boilerplate project. After accessing their GitHub repository at html5boilerplate.com and examining their dist folder's .htaccess file, we've extracted the essential SVG and compression configurations for this exercise.

1. In your code editor, open the .htaccess file inside the Tahoe SVG folder.

2. Examine line 12: AddType image/svg+xml svg svgz

   This directive explicitly informs Apache about SVG file types, ensuring proper MIME type assignment and reliable delivery to browsers. This single line resolves the majority of SVG display issues on Apache servers.

3. Review the compression section beginning on line 17, which enables gzip compression.

   Gzip compression dramatically reduces file transfer sizes by compressing text-based assets before transmission, then allowing browsers to decompress them automatically. This optimization particularly benefits text-heavy files like HTML, CSS, JavaScript, and SVG, often achieving 60-80% size reductions.

   The implementation is universally compatible: browsers supporting gzip receive compressed files for faster loading, while older browsers automatically receive standard uncompressed versions. This graceful degradation ensures optimal performance without compatibility sacrifices.

   For SVG files specifically, gzip compression frequently transforms files that initially appear larger than high-resolution PNGs into significantly smaller assets, making vector graphics even more attractive for web implementation.

4. When deploying the .htaccess file to your production server, consider these platform-specific considerations:

   • macOS users: Hidden files like .htaccess aren't visible in Finder by default. Use Cmd–Shift–Period(.) to toggle hidden file visibility. Press the combination again to hide them.

   • FTP applications with dual-pane interfaces: Most display hidden files automatically in both local and remote views. If not, check the application preferences for hidden file display options.

   • Single-pane FTP applications (like Cyberduck): Use the upload feature (File > Upload) which typically includes options to show hidden files during the selection process.

This server configuration ensures your SVG implementation works flawlessly across all hosting environments while delivering optimal performance through compression.
