Using Excel's Power Query Editor

Mastering Excel Power Queries: Your Guide to Advanced Data Analysis

Understanding the Fundamentals: What Exactly Is a Query?

Think of a query as your personal data detective. Just as you might ask a librarian to find all books by a specific author published after 2020, a query asks a database to retrieve specific information based on your criteria. Whether you're looking for customers with overdue accounts, inventory items running low on stock, or employees eligible for promotion, queries transform raw data into actionable insights.

In database applications like Microsoft Access, queries form the backbone of data management—they're essential for creating forms, generating reports, and building dynamic user interfaces. Excel, while not originally designed as a database application, has evolved significantly to meet modern data analysis needs. Its familiar row-and-column structure makes it accessible to users who find traditional database software intimidating.

Over the years, Microsoft has enhanced Excel's analytical capabilities with tools like the Analyze Data panel (covered in detail at this link:

Https://www.Noble Desktop.com/learn/excel/excel-data-analysis-with-statistics

) and the powerful Power Query feature we'll explore today.

While Excel's query functionality may seem less intuitive than Access—since it was retrofitted rather than built-in—it's remarkably powerful once you understand the structured approach. The learning curve is manageable, and the results can dramatically improve your data analysis workflow.

Power Query Explained: Your Gateway to Advanced Data Manipulation

Power Query revolutionizes how you work with data by enabling seamless connections to virtually any data source. Whether you're pulling from your own Excel worksheets, corporate Access databases, cloud-based systems, or even web APIs, Power Query creates a bridge between your analysis needs and your data sources.

The true power lies in Power Query's ability to transform your data without altering the original source. Think of it as creating a customized view of your data—selecting specific columns, applying filters, sorting records, and cleaning inconsistencies—all while keeping your source data pristine and unchanged.

Advanced users can combine multiple data sources, creating comprehensive analyses that would be impossible with traditional Excel functions. While this article focuses on single-source queries to establish foundational skills, the principles you'll learn here scale to enterprise-level data integration projects.

Finally, Power Query allows you to load your refined data into Excel worksheets where you can create visualizations, perform additional calculations, and share insights with stakeholders. The loaded data remains connected to its source, enabling one-click refreshes when underlying information changes.

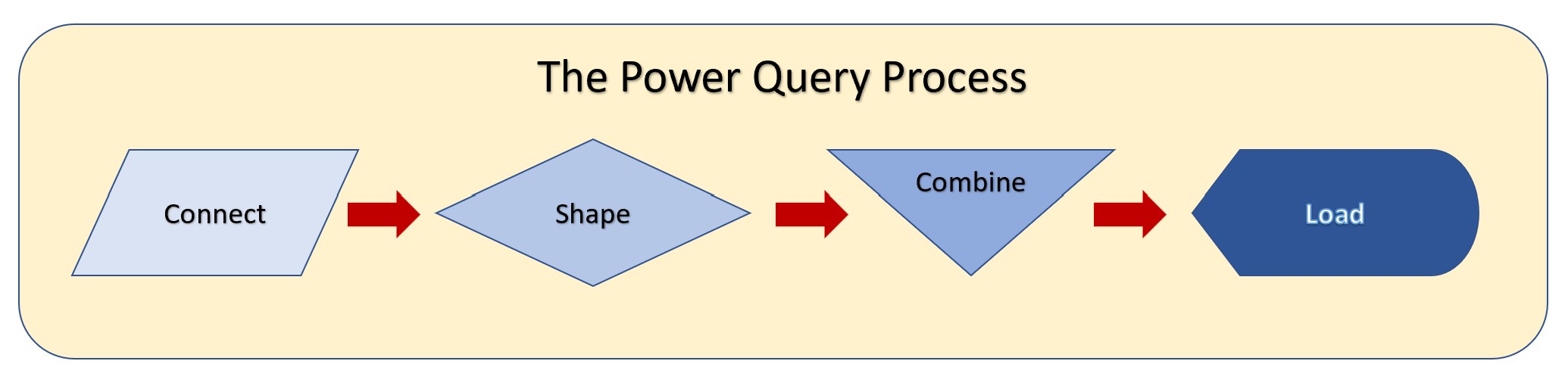

The four-step Power Query process follows this logical progression:

1. Connect: Establish secure connections to data sources across your organization, from local files to cloud databases and everything in between.
2. Transform: Shape and clean your data to meet specific analytical requirements while preserving data integrity at the source level.
3. Combine: Merge multiple data streams to create comprehensive datasets that provide complete business insights.
4. Load: Deploy your refined data into Excel for analysis, visualization, and reporting, with built-in refresh capabilities to maintain currency.

Strategic Planning: The Foundation of Effective Query Building

Before diving into Excel's Power Query interface, successful data analysts invest time in strategic planning. This preparation phase often determines the difference between a useful query and a frustrating exercise in trial and error.

Begin by identifying your data source with precision. Which specific table, worksheet range, or external database contains the information you need? Document the exact location and access requirements, as you'll need this information during the connection process.

Next, define your analytical objectives clearly. What specific insights are you seeking? This clarity will guide your field selection and criteria development. For instance, if you're analyzing vendor performance, you might need fields for vendor name, contract value, delivery dates, and performance ratings, while excluding administrative fields like internal processing codes.

Consider a practical example: analyzing vendor relationships to identify top-performing contractors. Your criteria might include:

• Contract values exceeding $50,000 in 2025
• Vendor specializations in electrical, plumbing, or HVAC services
• Performance ratings above 4.0 stars
• Geographic proximity within 50 miles of headquarters

Remember that effective queries often include supplementary fields beyond those used for filtering. While you might filter on contract value and specialization, including contact information, emergency response capabilities, and certification status will make your results immediately actionable for procurement decisions.

This planning phase becomes even more critical when working with large datasets common in today's business environment. With proper preparation, you'll navigate Power Query's interface efficiently and create queries that deliver precisely the insights your organization needs.

Establishing Data Connections: Your First Step to Power Query Success

With your query strategy defined, you're ready to establish the data connection that will serve as your analysis foundation. Excel's Get Data functionality has expanded significantly, offering connections to an impressive array of modern data sources including cloud databases, web APIs, and real-time data streams.

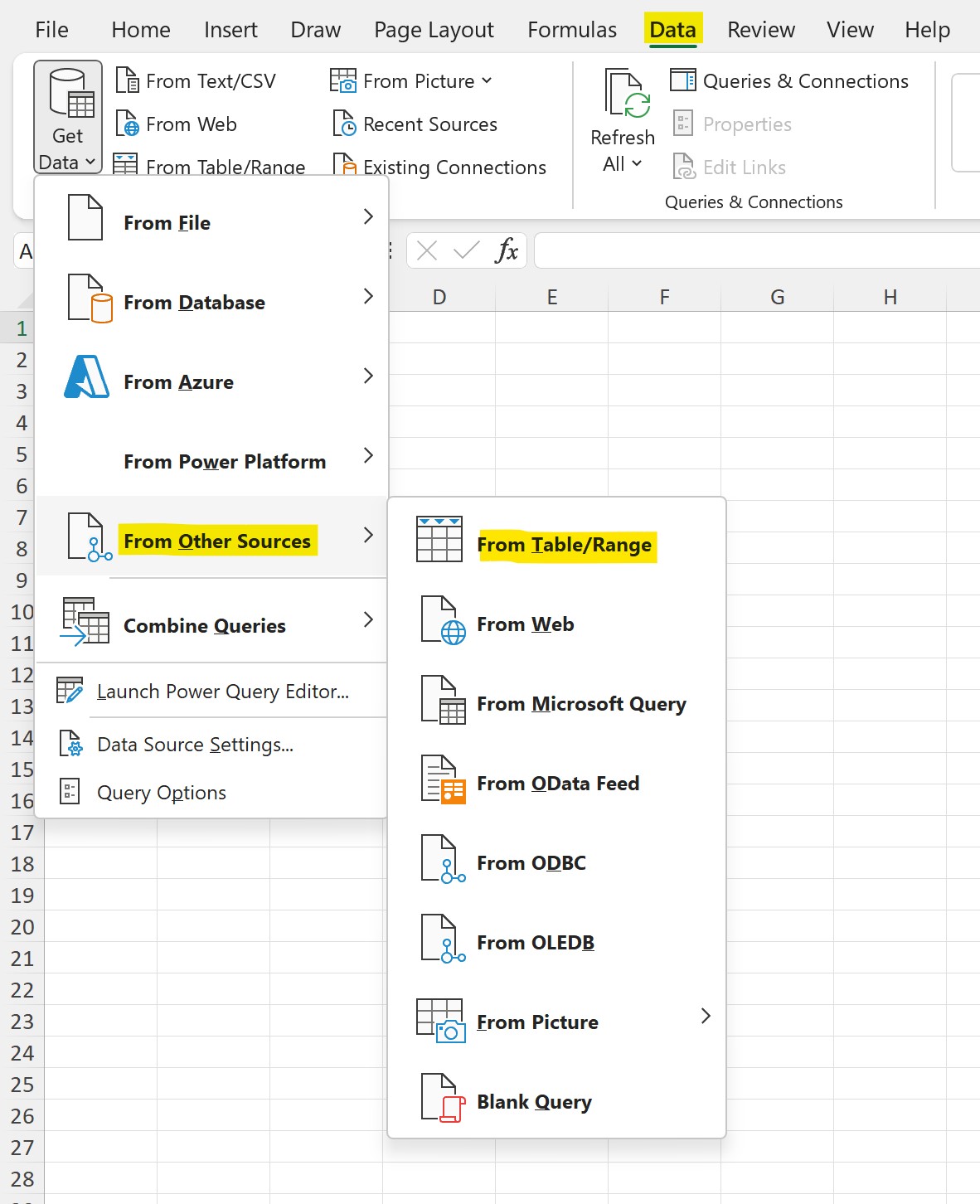

Navigate to Excel's Data tab and click the Get Data button. For this demonstration, we'll select "From Other Sources" followed by "From Table/Range"—the most common starting point for Excel-based data analysis. This approach works perfectly when your data resides in Excel worksheets, which remains the reality for many business analysts in 2026.

Connecting to External Data Sources: Expanding Your Analytical Reach

While Excel-based data sources provide an excellent starting point, Power Query's true strength emerges when connecting to external systems. Modern businesses often store data across multiple platforms—customer relationship management systems, enterprise resource planning databases, cloud storage solutions, and specialized industry applications.

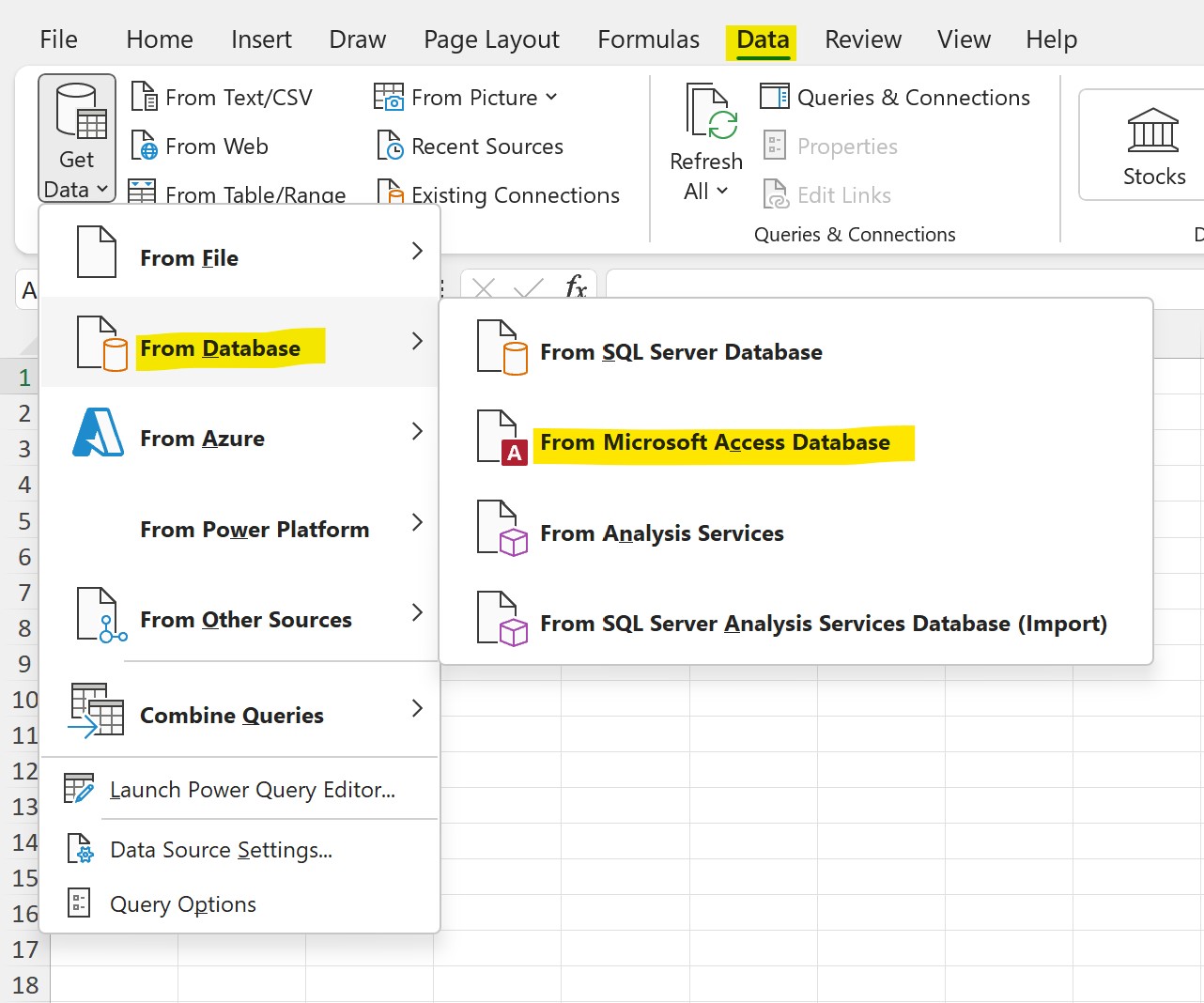

For database connections, select "From Database" and choose your specific platform. Access databases remain popular for departmental applications, while SQL Server connections enable enterprise-scale analysis. Cloud-based options include connections to Azure, Amazon Web Services, and Google Cloud Platform databases.

Regardless of your chosen data source, you'll need to provide precise location information. This might include server addresses, authentication credentials, database names, or cloud storage paths. Security considerations have become increasingly important, so ensure you're following your organization's data governance policies when establishing these connections.

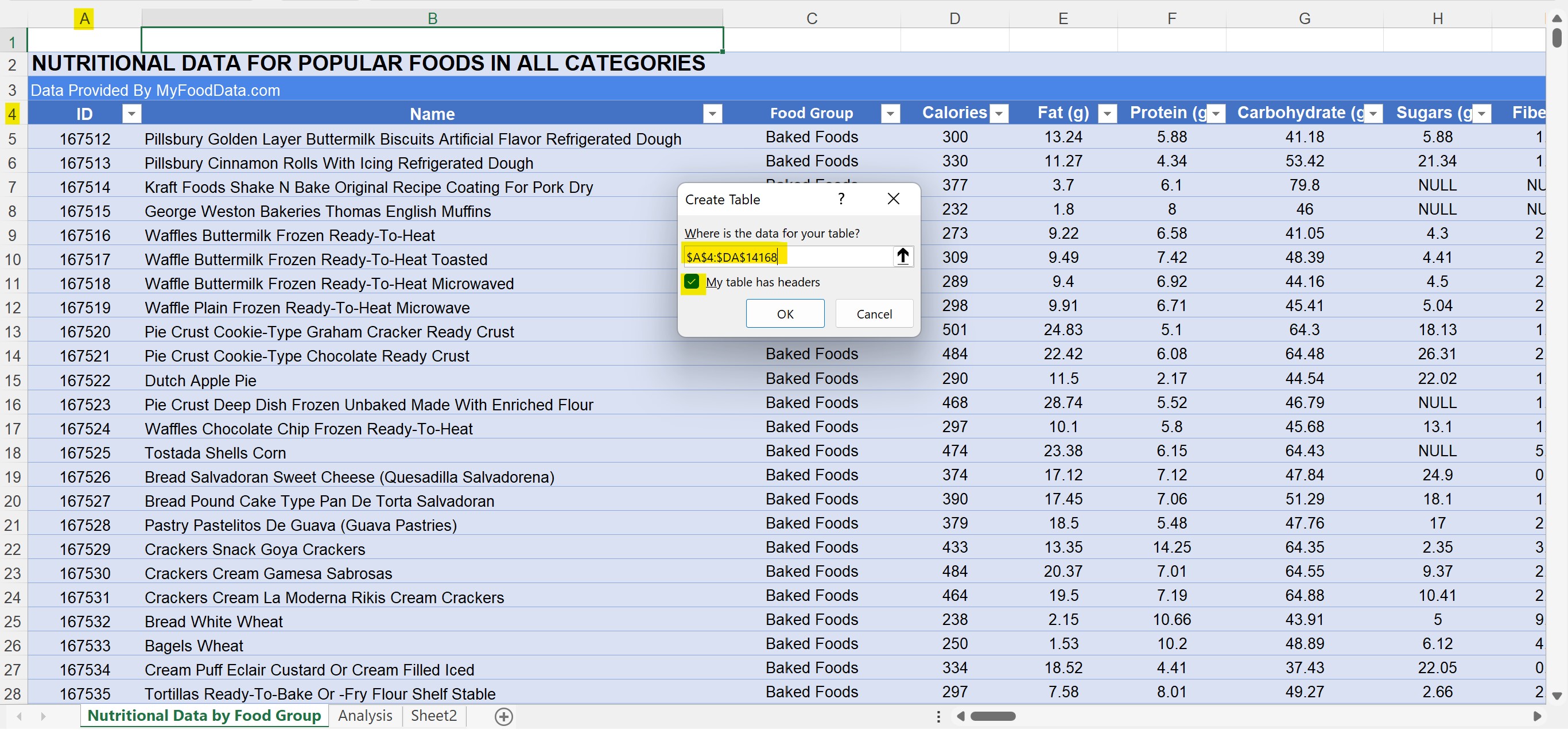

Returning to our Excel-based example, you'll need to specify the exact range containing your data. After selecting "From Table/Range," Excel prompts you to identify the cell range encompassing both headers and data rows. Use the efficient keyboard shortcut Ctrl + Shift + End to select from your current position to the last used cell, ensuring you capture the complete dataset.

In this example, the data spans cells A4 through DA14168, representing over 14,000 records—exactly the type of large dataset where Power Query demonstrates its value over manual filtering and sorting approaches.

Clicking OK launches the Power Query Editor, your command center for data transformation. This interface might seem overwhelming initially, but understanding its layout will accelerate your query development process significantly.

The Power Query Editor features five main tabs: File, Home, Transform, Add Column, and View. Each tab contains specialized tools for different aspects of data manipulation, similar to Excel's ribbon interface but focused specifically on query operations.

Below the ribbon, you'll notice a formula-like bar that displays the underlying Power Query language (known as "M"). While you don't need to write code manually, understanding that Power Query generates these formulas helps explain why your transformations remain consistent and repeatable.

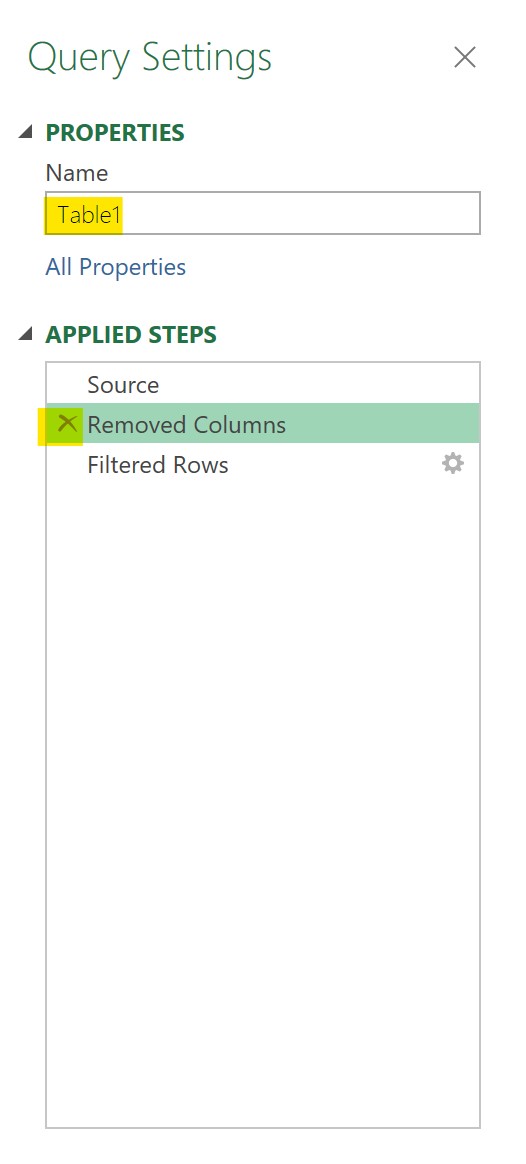

The interface divides into three key sections: the Queries panel on the left (showing your current query, initially named "Table1"), the main data preview area in the center, and the Query Settings panel on the right. This settings panel serves two crucial functions: providing a logical name for your query and maintaining a detailed history of every transformation step.

Data Transformation: Sculpting Your Perfect Dataset

With your data connection established, you enter the transformation phase—where raw data becomes refined intelligence. This process involves selecting relevant columns, applying filters, and establishing the criteria that will deliver exactly the insights you need.

Modern datasets often contain dozens or even hundreds of columns, many of which may be irrelevant to your specific analysis. Power Query allows you to streamline your view by removing unnecessary columns, improving both performance and clarity. Remember, these changes don't affect your source data—you're creating a customized lens through which to view your information.

Optimizing Your Column Selection for Maximum Impact

Begin column optimization by identifying which fields directly support your analytical objectives. In large datasets, this discipline prevents information overload and improves query performance—particularly important when working with cloud-based data sources where bandwidth considerations matter.

To remove unwanted columns, use the Ctrl + click method to select multiple column headers. This technique allows you to gather non-contiguous columns efficiently, even across wide datasets. Once you've selected the columns to remove, click the "Remove Columns" button on the Home tab.

Pay careful attention to the two removal options: "Remove Columns" eliminates your selected columns, while "Remove Other Columns" keeps only your selected columns and eliminates everything else. This distinction becomes critical when working with datasets containing 50+ columns where selecting everything you want to remove would be more time-consuming than selecting everything you want to keep.

Pro Tip: For selecting contiguous columns, use Shift + click instead of Ctrl + click. Click the first column header, hold Shift, then click the last column in your desired range. This technique proves invaluable when removing large blocks of administrative or system-generated columns that often appear together in exported datasets.

Correction Technique: If you accidentally select a column you want to keep, don't start over. Simply Ctrl + click that column header again while maintaining your other selections—it will deselect, allowing you to continue building your column list efficiently.

Implementing Powerful Query Criteria for Precise Results

With your column selection optimized, you can now establish the filtering criteria that transform your query from a simple data view into a targeted analytical tool. Effective criteria development requires understanding both your business questions and the data types you're working with.

Each column header features a dropdown arrow that reveals sorting and filtering options tailored to that field's data type. Text fields offer contains, begins with, and exact match options, while numeric fields provide greater than, less than, and range-based filtering. Date fields include relative options like "last month" or "previous quarter"—particularly useful for recurring reports.

Consider this practical vendor analysis scenario where you need to identify high-value contractors for contract renewal negotiations:

Field Name	Criteria Logic	Business Rationale
Total Contract Value	Greater than $75,000	Focus on significant business relationships
Service Period	Between 1/1/2025 and 12/31/2025	Current year performance assessment
Vendor Category	IT Services, Consulting, Facilities	Strategic service categories requiring renewal
Performance Rating	4.0 or higher	Quality threshold for renewal consideration

For our nutrition database example, let's create a query targeting health-conscious consumers interested in high-protein, moderate-calorie grain options:

Field Name	Criteria Logic	Nutritional Targeting
Food Group	Baked Products, Breakfast Cereals, Grains & Pasta	Grain-based options for sustained energy
Calories per Serving	Less than 300	Moderate calorie content for weight management
Protein Content	Greater than 10 grams	Adequate protein for satiety and muscle health

The filtering interface adapts intelligently to your data types, offering number-specific options for quantitative fields and text-based filters for categorical data. This contextual approach reduces errors and speeds up criteria development significantly.

Expert Connection: These filtering capabilities mirror Excel's table filtering functionality, but with enhanced performance and repeatability. If you're familiar with Excel table filters, you'll recognize these tools immediately. For comprehensive coverage of sorting and filtering techniques, explore these detailed video tutorials:
