The Properties Palette

Topics Covered in This AutoCAD Tutorial:

Quick Select, the Properties Palette

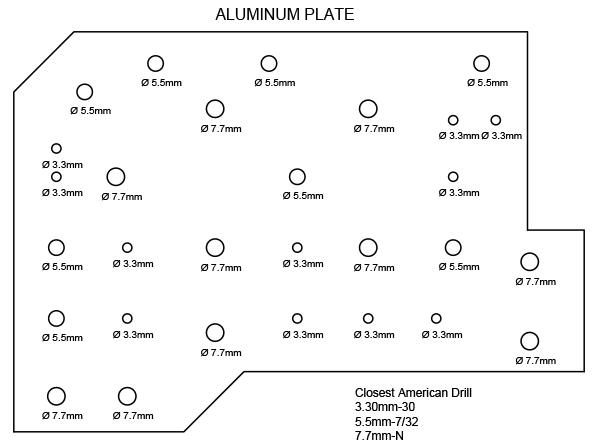

Exercise Preview

Exercise Overview

In this exercise, you'll master two of AutoCAD's most powerful productivity tools: Quick Select and the Properties Palette. You'll learn to efficiently select objects based on their properties and apply batch modifications—skills that separate proficient users from beginners. These techniques are essential for maintaining drawing standards and correcting common layer management mistakes that plague many CAD workflows.

Using the Properties Palette & Quick Select

1. Open the file Properties Palette-Drill Plate.dwg. This drawing simulates a common real-world scenario where objects appear correctly but have underlying property issues that can cause problems down the line.

2. All drill holes appear magenta, which seems correct at first glance. Expand the Layer Control and notice that the Drill Holes layer is indeed magenta—but appearances can be deceiving. Select the 5.5 mm magenta drill hole in the upper-right corner of the plate. Right-click and choose Select Similar from the menu. Notice that only some circles are selected—this reveals a critical layer management problem.

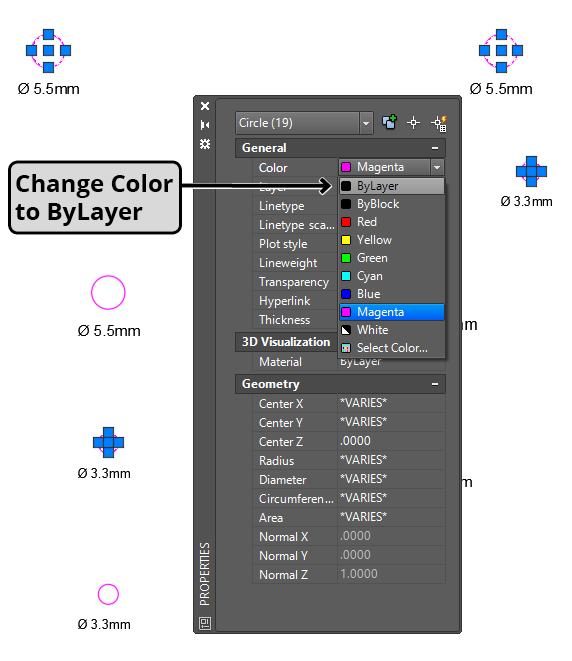

   Press CTRL–1 to open the Properties Palette. This palette is arguably the most versatile tool in AutoCAD, allowing you to inspect and modify object properties with precision. In the palette, you'll see the Color is set to Magenta rather than "ByLayer." This means the color property has been assigned directly to the object, overriding the layer color—a common mistake that leads to organizational chaos.

   Change the Color from Magenta to By Layer. The circles will turn black because they're actually on the Object layer, not the Drill Holes layer where they belong. This is exactly why "ByLayer" properties are crucial for maintaining drawing standards. Now change the Layer to Drill Holes, and the circles will return to magenta—but this time because they inherit the layer's color property. Press Escape to deselect.



3. Select any magenta circle and use Select Similar again. This time all circles are selected because they now share the same layer. The color field shows *VARIES*, indicating mixed property values among selected objects. Change the color to By Layer for all selected objects. This standardization ensures that any misplaced objects will immediately change color, providing visual feedback when layer assignments are incorrect—a quality control mechanism that prevents costly mistakes in production drawings. Press Escape to deselect.

4. Now we'll tackle a dimensional accuracy issue that's common in manufacturing drawings. Select any hole labeled 7.7 mm and examine the Diameter reading in the Properties Palette. You'll discover the actual diameter is 6.1 mm—a significant discrepancy that could cause manufacturing errors. This mismatch between labels and actual geometry is precisely the type of error that Quick Select helps you identify and correct efficiently. Press Escape to deselect.

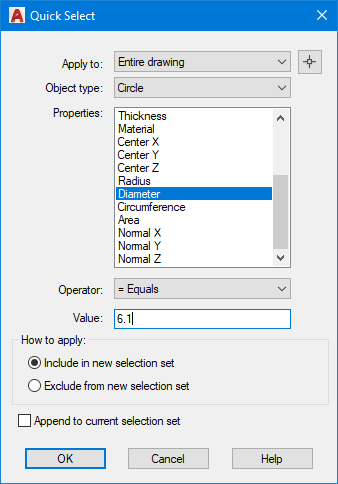

5. Here's where Quick Select demonstrates its power for quality assurance. Right-click in any open area and choose Quick Select, or click the Quick Select button on the Properties Palette. Set Object Type to Circle—notice how the Properties list dynamically updates to show circle-specific properties. Select Diameter from the Properties list, keep Operator as Equals, enter 6.1 as the Value, and click OK.

   All circles with 6.1 mm diameter are now selected—the ones incorrectly labeled as 7.7 mm. In the Properties Palette, change the diameter to 7.7 mm. Watch as all selected circles update simultaneously, correcting what could have been dozens of individual edits. This batch editing capability makes the Properties Palette indispensable for large-scale modifications. Press Escape to deselect.



6. Layer management extends beyond geometry to annotation elements. All text should reside on the Text layer, but the black color indicates it's on the Object layer instead. Use Select Similar to select all text objects and change their layer to Text in the Properties Palette. While this fixes the layer assignment, you'll notice the diameter labels are inconsistently sized—unprofessional in any technical drawing.

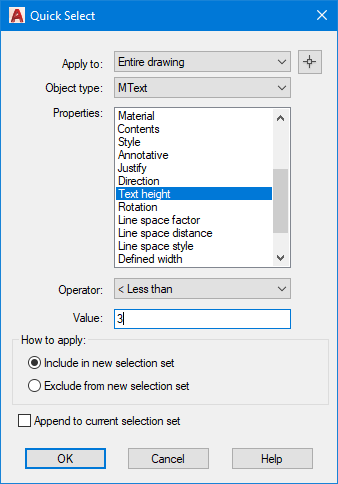

   Launch Quick Select again. Set Object Type to MText (Multiline Text), Operator to < Less than, and Value to 3. This selects only the smaller text objects (the diameter labels) without affecting the title text above and below the plate.



7. In the Properties Palette, the Text height shows *VARIES*, confirming multiple text sizes among selected objects. Enter a standardized text height of 2.5. All diameter labels now conform to a consistent size, dramatically improving the drawing's professional appearance and readability—critical factors in technical documentation.

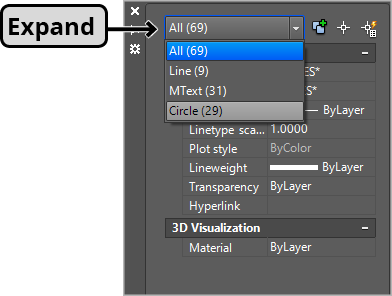

8. The Properties Palette offers valuable drawing intelligence beyond editing capabilities. It displays object counts in the upper-right corner—a feature particularly useful for manufacturing documentation and project estimation. Press CTRL–A to select all objects, then expand the count dropdown menu in the Properties Palette's upper-right corner.

   You'll see a complete inventory of object types: 29 circles (representing total drill holes), various text objects, and other elements. This data is invaluable for manufacturing planning, cost estimation, and quality verification. Selecting Circle from the list filters the Properties Palette to show only circle-specific properties, enabling targeted modifications across all circular elements. Press CTRL–1 to close the Properties Palette.



9. Close and save the drawing. You've now mastered essential techniques that will dramatically improve your efficiency and drawing quality in any professional CAD environment.
