Hatch Tool Pallets: Free AutoCAD Tutorial

Master AutoCAD Hatch Tool Pallets for Professional Drawings

Before You Begin

This tutorial builds upon previous exercises. Ensure you have completed the prior hatch exercises and have saved your custom ANSI31 and ANGLE hatches to the Tool Pallets.

Core AutoCAD Tools You'll Use

Layer Freeze (LAYFRZ)

Temporarily hide specific layers like doors to work more efficiently with your drawing elements.

Make Objects Layer Current (LAYMCUR)

Quickly switch to the layer of an existing object by clicking on it, streamlining your workflow.

Tool Pallets Hatch Tab

Access your saved hatch patterns with predefined settings including gap tolerance for rapid application.

Topics Covered in This AutoCAD Tutorial:

Hatch Tool Palettes

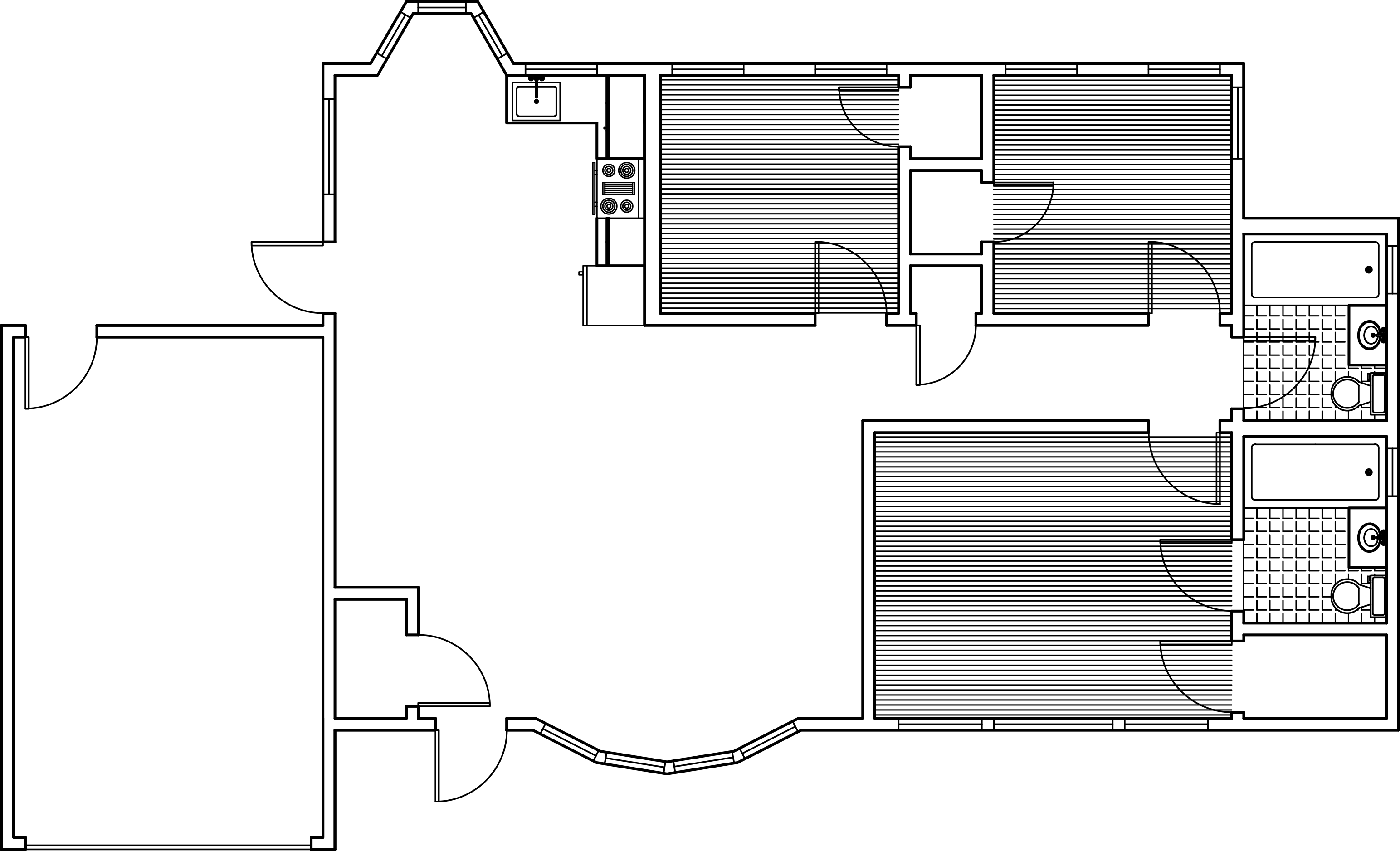

Exercise Preview

ex preview hatch tool pallets

Exercise Overview

In this exercise, you'll master the efficiency of Tool Palettes to apply pre-configured Hatches to your architectural drawings. This workflow technique significantly accelerates the drafting process by allowing you to reuse standardized hatch patterns with consistent properties across multiple projects. Tool Palettes represent one of AutoCAD's most powerful productivity features, enabling design professionals to maintain consistency while reducing repetitive tasks.

Building on the foundation from the previous exercise, you'll learn to leverage saved hatch configurations to create professional flooring patterns that maintain their original settings, including critical parameters like Gap Tolerance.

Tutorial Workflow Overview

1

Prepare Drawing Environment

Open Hatch-Ranch.dwg file and freeze the A-Doors layer to clear the workspace for hatch application

2

Apply Saved Hatches

Use Tool Pallets to apply previously saved ANSI31 hardwood flooring hatch to bedroom areas

3

Handle Complex Areas

Address bathroom areas that require boundary closure before hatch application can succeed

4

Refine Hatch Alignment

Use Set Origin to properly align tile patterns with room geometry for professional appearance

Hatch Flooring

  1. Open the file Hatch-Ranch.dwg to begin working with the residential floor plan.

  2. Launch the Layer Freeze (LAYFRZ) tool and click on any of the doors to freeze the A-Doors layer. This technique temporarily hides door elements, providing cleaner visual access to room boundaries while you work on flooring patterns.

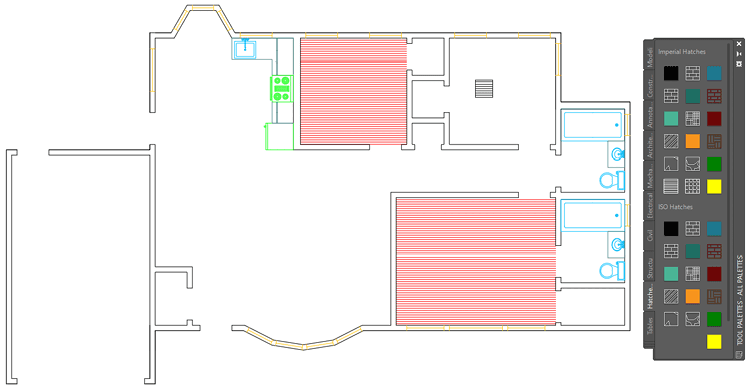

  3. Navigate to the Hatch tab in the Tool Palettes Window. Select the ANSI31 hatch pattern that you configured for hardwood flooring in the previous exercise. Click inside one of the empty square bedrooms to place the hatch, then repeat this process for the other two bedrooms as illustrated below. The beauty of Tool Palettes becomes apparent here—your saved hatches retain all previously configured settings, including Gap Tolerance values, enabling you to efficiently fill open areas even when minor gaps exist in the boundary geometry.

    hatch two rooms

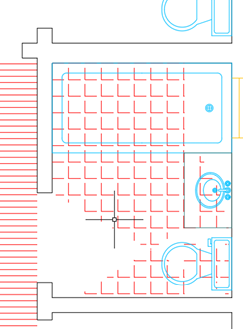

  4. From the Hatch Tool Palette tab, select the ANGLE hatch pattern you previously configured for tile flooring and attempt to place it in the master bathroom located in the bottom right corner. You'll notice that despite the Gap Tolerance setting, the complex geometry of bathroom fixtures creates an irregular boundary that confuses the hatch algorithm, resulting in incorrect pattern placement. Delete this unsuccessful hatch—this demonstrates why understanding boundary conditions is crucial for professional drafting.

    hatch angle

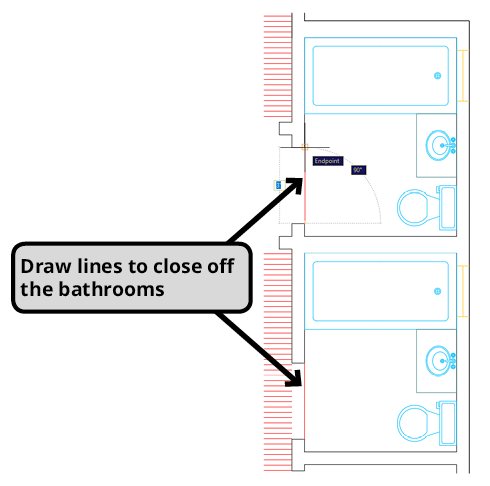

  5. To resolve the boundary issue, you'll need to create closed areas for proper hatch placement. Start the Make Objects Layer Current (LAYMCUR) command and click on one of the successfully placed hatches to set the Hatch layer as current. This ensures your temporary boundary lines will be organized on the appropriate layer. Launch the Line tool and draw two strategic lines across the bathroom doorway openings as shown below, effectively creating enclosed areas suitable for hatch application.

    hatch bathroom lines

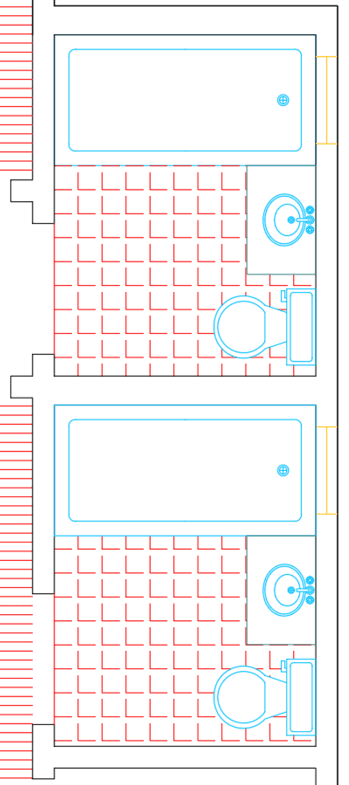

  6. With the boundaries properly closed, return to the Hatch Tool Palette and place the tile hatch pattern into both bathroom spaces. The enclosed geometry now allows the hatch algorithm to function correctly, producing clean, professional results.

    hatch bathroom 1

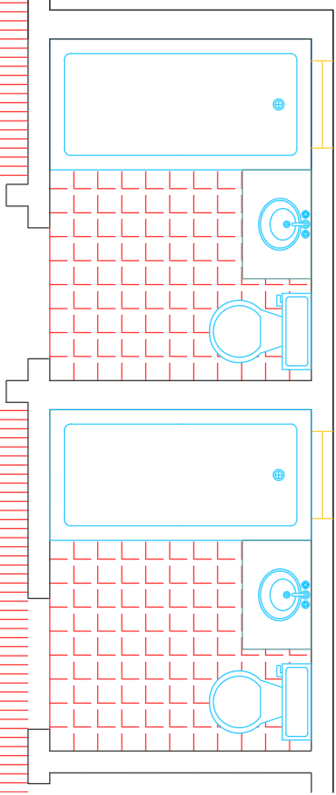

  7. To achieve optimal visual results, use the Set Origin function and click in the lower left corner of each bathroom. This repositions the hatch pattern origin point, creating better alignment between the tile pattern and the room's geometry—a critical detail that distinguishes professional drafting work from amateur attempts.

    hatch bathroom 2

  8. Save and close the file to preserve your work.

Hatch Application Scenarios

FeatureSimple Rooms (Bedrooms)Complex Rooms (Bathrooms)
Boundary ConditionClosed boundariesOpen doorways
Gap Tolerance EffectivenessWorks automaticallyInsufficient for complex geometry
Required PreparationNone - direct applicationManual boundary closure with Line tool
Success RateHighRequires troubleshooting
Recommended: Always assess room complexity before hatch application. Simple rectangular rooms work with gap tolerance, while complex areas need manual boundary preparation.
Gap Tolerance Best Practice

Saved hatches retain their Gap Tolerance settings from previous exercises, allowing placement in areas with small openings. However, irregular room geometry may still require manual boundary closure.

Bathroom Hatch Application Checklist

0/6

Tool Pallets vs Manual Hatch Creation

Pros
Retains all previous settings including gap tolerance
Single-click application for consistent results
No need to reconfigure hatch properties each time
Saves significant time on repetitive hatching tasks
Maintains consistency across multiple drawing sessions
Cons
Requires initial setup and saving of hatch configurations
May still need manual boundary preparation for complex areas
Limited flexibility for one-off custom hatch requirements
Common Hatch Failure Point

When hatch placement fails in bathrooms due to irregular boundaries, always delete the incorrect hatch before attempting boundary closure. Leaving failed hatches can cause confusion and drawing file bloat.

Key Takeaways

1Tool Pallets preserve all hatch settings from previous exercises, including gap tolerance configurations, enabling rapid and consistent hatch application across multiple drawing sessions.
2The Layer Freeze (LAYFRZ) tool helps create cleaner working environments by temporarily hiding elements like doors that might interfere with hatch placement visualization.
3Simple rectangular rooms typically work well with saved gap tolerance settings, allowing direct hatch placement without additional boundary preparation.
4Complex room geometries, particularly bathrooms with multiple openings, often require manual boundary closure using the Line tool before successful hatch application.
5The Make Objects Layer Current (LAYMCUR) tool provides an efficient method to switch layers by simply clicking on existing objects, streamlining the drawing workflow.
6When hatch placement fails due to irregular boundaries, the correct approach is to delete the failed attempt, close the problematic openings, then reapply the hatch pattern.
7The Set Origin feature allows precise control over hatch pattern alignment, particularly important for tile patterns that should align properly with room geometry and walls.
8Consistent use of saved hatch patterns through Tool Pallets ensures professional drawing standards and reduces the likelihood of inconsistent flooring representations across project drawings.
