Text Animation: Rotating Layers in 3D

Topics Covered in This After Effects Tutorial:

Master advanced 3D animation techniques including rotating text and graphics on the Y-axis in After Effects 3D space, understanding After Effects' 3D camera and layer perspective systems, creating realistic oscillating overshoot effects, synchronizing text color changes with graphics animation, implementing anticipation keyframes before major animations, and strategically stacking graphics to form cohesive color compositions.

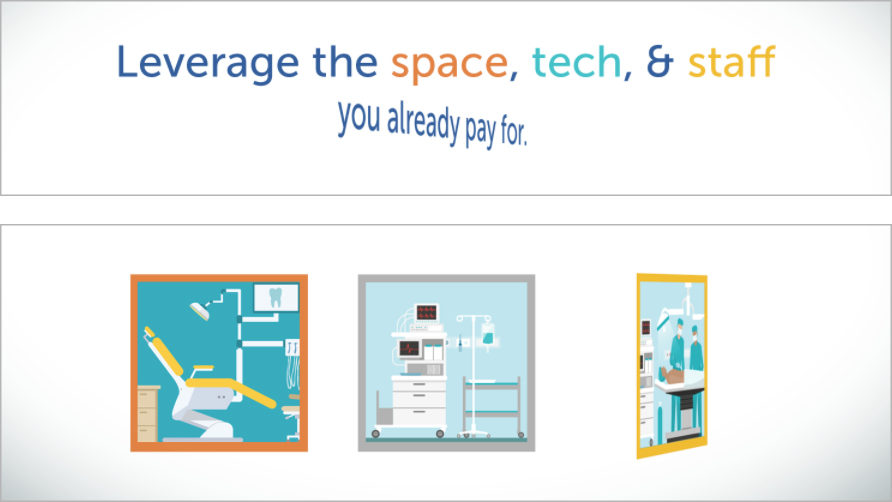

Exercise Preview

Exercise Overview

After Effects transforms flat compositions into immersive 3D environments with a single click, adding professional depth and visual sophistication to your motion graphics projects. In this comprehensive exercise, you'll elevate elements from our third layout into 3D layers, enabling full rotation capabilities within three-dimensional space. Beyond basic 3D conversion, you'll craft complex overshoot animations that feel natural and engaging, plus master anticipation techniques—a fundamental animation principle where elements briefly move backward before executing their primary motion, creating more believable and visually appealing sequences.

Previewing What You'll Create in This Exercise

1. Ensure yourname-Text Animation.aep remains open in After Effects. If you've closed it, reopen now. We strongly recommend completing the previous exercises (2A–2B) before proceeding, as they establish the foundation for this advanced 3D work. If you haven't finished them, follow this alternative setup:

   • Open Text Animation-Ready for 3D Rotation.aep from the Text Animation > Finished AE Projects folder.
   • Save the file as yourname-Text Animation.aep in the Text Animation folder to maintain your project organization.

2. Navigate to Class Files > After Effects Level 2 Class > Text Animation > Finished Clips on your Desktop and double-click Text-Animation-Leverage.mov to preview the completed animation sequence.

3. Study the video carefully, noting these sophisticated animation techniques (scrub the playhead slowly for detailed observation):

   • Watch how the first text line executes a clockwise 3D revolution as the pie chart reveals the layout, purposefully overshooting its final position before settling—this creates natural, physics-based motion.
   • Observe the precise timing coordination: just before text settles, an orange-bordered illustration spins into view. As the graphic becomes less distorted through its rotation, the corresponding word shifts to orange, creating visual harmony between text and graphics.
   • Notice the second text line's more complex oscillation pattern—it overshoots repeatedly with decreasing momentum, mimicking real-world physics until reaching equilibrium.
   • Study the anticipation technique: text elements inch rightward momentarily, building visual tension before their leftward exit—this "wind-up" makes the subsequent motion more impactful.
   • Analyze the final convergence sequence where side illustrations migrate toward the center graphic, transforming to gold upon merging—demonstrating advanced color coordination with spatial animation.

4. Keep this reference video open throughout the exercise for continuous comparison. Understanding the intended result before building ensures more efficient workflow and better creative decisions.

Preparing Multiple Text Elements for Advanced Animation

1. Return to After Effects with yourname-Text Animation.aep active in your workspace.

2. In the Timeline, confirm you're working in the Text Animation-MAIN tab—this is your primary composition where all elements come together.

3. Select the [03-Leverage] pre-composition and press I to reveal its in-point at 7;19 (7 seconds, 19 frames). This timing coordination is crucial for seamless animation flow.

4. Double-click the [03-Leverage] layer to open this pre-composition in its dedicated Timeline tab, where we'll build the individual animations.

5. Notice this pre-composition currently starts at 0;00. For better timing reference and animation precision, we'll synchronize its timecode with the main composition's timing structure.

6. Press Cmd–K (Mac) or CTRL–K (Windows) to access Composition Settings, where we'll establish proper temporal alignment.

7. Change the Start Timecode to 719, matching the pre-comp's position in the main timeline. This synchronization simplifies timing decisions and prevents confusion during complex animation sequences.

8. Click OK to apply the timecode change—you'll immediately see the temporal alignment reflected in the Timeline.

9. Select the Leverage the space… text layer and press M to reveal its five masks. These masks serve specific purposes: the first three isolate individual words for independent color changes, while the final two separate content into distinct animation lines.

   Verify each mask uses Add blending mode for proper compositing—this ensures all masked areas remain visible simultaneously.

10. We'll use a specialized script to convert these masks into separate layers for independent animation control. Navigate to Window > MasksToLayers.jsx to launch this powerful automation tool.

11. Configure the Anchor Point setting to Move To Mask Center—this positions each new layer's anchor point at its visual center, ensuring natural rotation behavior. Click Proceed to execute the conversion.

12. Close the script panel using either the panel menu or the red close button—keeping your workspace clean improves focus during complex operations.

13. The original Leverage the space… layer remains selected. Rename it original text for clear layer identification—professional organization becomes crucial as layer counts increase.

14. Click the layer's arrow to collapse its properties, then drag it below all other layers (position 12). This preserves the original as a backup while keeping active layers accessible.

15. The script generated five new layers requiring strategic organization. Apply these descriptive names to maintain clear workflow structure:

    Top layer:	space
    Second layer:	tech
    Third layer:	staff
    Fourth layer:	line 1
    Last layer:	line 2

16. Select from space through line 2 layers and press M to reveal all mask properties simultaneously—batch operations save significant time in complex projects.

17. Secure each mask's position by clicking the empty lock switch next to every mask. This prevents accidental modifications during animation work.

18. Collapse all expanded layers to streamline your Timeline view—visual clarity becomes increasingly important as animation complexity grows.

19. Hold Cmd (Mac) or CTRL (Windows) and click line 1 and line 2 layers to deselect them, maintaining selection only on the three individual word layers (space, tech, staff).

20. Establish proper parent-child relationships by dragging the pick whip from any selected layer's Parent column to the line 1 layer name. This hierarchy ensures individual words inherit the line's transformation properties while maintaining their unique characteristics.

21. Assign the selected layers a Blue label color for visual organization—color coding helps distinguish different layer types in complex compositions.

22. Apply the Fill effect to prepare for dynamic color changes: Effect > Generate > Fill. This effect enables precise color control essential for coordinated text-graphic animations.

23. The default red fill appears on all layers. Since each word requires distinct branding colors, deselect all layers first, then apply individual color assignments.

24. Configure brand-appropriate colors by selecting each layer individually, accessing the Effect Controls panel, and clicking the Color swatch:

    space:	#E7814B (WaitingRoom's signature orange)
    tech:	#30C2C7 (WaitingRoom's signature turquoise)
    staff:	#F4BC44 (WaitingRoom's signature gold)

25. Temporarily hide the space, tech, and staff layers by clicking their eye switches . This allows focus on line and graphic animations before integrating color-changing elements.

Converting Layers to 3D for Advanced Animation

1. Select all layers using Cmd–A (Mac) or CTRL–A (Windows) to prepare for bulk modifications.

2. Ensure layer switches display properly, then click any layer's Shy switch to reveal the complete switch panel.

3. Collapse all expanded layers by clicking the arrow next to any open layer—this creates a cleaner workspace for the following operations.

4. Deselect all layers to reset your selection, then strategically choose only the animation-ready elements.

5. Select the primary animation layers by clicking line 1 and Shift-clicking space pic. This selection encompasses Layers 7–11—the core elements requiring 3D capabilities for our rotation effects.

6. Click any selected layer's Shy switch to enable the shy state, making the main Shy button accessible.

7. Click the primary Shy button at the Timeline's top center to temporarily hide non-essential layers. This focused view prevents accidental modifications and improves workflow efficiency.

8. Transform 2D layers into 3D powerhouses by clicking any layer's 3D Layer switch (the rightmost switch). This single action unlocks complete three-dimensional manipulation capabilities.

9. Expand any layer, then reveal its Transform properties to observe the 3D transformation. Notice the additional Material Options section—these advanced controls govern how 3D layers interact with lighting systems, shadows, and camera perspectives in professional 3D environments.

10. Examine how Anchor Point, Position, and Scale properties now feature three values each. The new z coordinate controls depth positioning relative to After Effects' virtual camera—positive values move layers toward the viewer, negative values push them away.

11. Press R to isolate the four distinct Rotation properties, hiding other transform attributes. This focused view is essential for understanding 3D rotation mechanics.

12. Deselect all layers, then select only the line 1 layer to begin hands-on 3D experimentation.

Mastering 3D Rotation Fundamentals

Before diving into animation, we'll explore 3D rotation mechanics, understand the relationship between Orientation and Rotation properties, and establish best practices for professional 3D animation workflows. If you're already proficient with these concepts from previous experience, you may skip ahead to the next section.

1. Activate the Rotation tool from the Tools panel, or press W (for rotation) for quick access. This specialized tool provides intuitive 3D manipulation capabilities.

2. In the Composition panel, hover over the green arrow to reveal the Y-axis tooltip. This axis controls horizontal rotation, creating revolving door or spinning top effects.

3. Test the red arrow representing the X-axis—this controls vertical tilting motion, similar to a doggy door or drawbridge mechanism.

4. Locate the blue arrow controlling the Z-axis near the anchor point . The blue hexagon may be subtle initially—hover carefully to reveal its tooltip. Z-axis rotation produces traditional clockwise/counterclockwise spinning.

5. Verify the Tools panel displays Set Orientation for 3D layers. If it shows Rotation, access the dropdown menu and select Orientation for this initial test.

6. Click and drag the green y-axis leftward and rightward while observing both the Composition panel's visual feedback and the Timeline's Orientation property values. Continue holding the mouse button to see real-time value updates.

   Notice how the Orientation property caps at 359.9° regardless of how many full rotations you perform—this property sets static positioning, not animated revolutions.

7. Release the mouse and undo with Cmd–Z (Mac) or CTRL–Z (Windows) to reset the layer's position.

8. Switch the Tools panel setting from Orientation to Rotation to access animation-friendly rotation controls.

Creating Dynamic Y-Axis Rotations for Text and Graphics

1. With rotation fundamentals mastered, begin the actual animation sequence. Move the playhead to 8;04—this timing allows the text to settle after its overshoot motion.

2. In the line 1 layer, establish the Y Rotation property as keyframeable by clicking its stopwatch . This creates the final position keyframe first—a professional approach that ensures accurate endpoint positioning.

3. Navigate to 8;00 for the overshoot position—this creates natural, physics-based motion that feels organic rather than mechanical.

4. Change the Y Rotation value to 0x+10° in the Timeline. This 10-degree overshoot provides subtle realism without overwhelming the text's readability.

5. Move to 7;20—one frame after the pie chart begins revealing the layout. This timing ensures the text animation begins precisely when the element becomes visible, creating seamless visual flow.

6. Trim the layer's in-point using Opt–[ (Mac) or ALT–[ (Windows) to prevent any pre-animation visibility. Clean in-points are essential for professional motion graphics.

7. Set Y Rotation to 0x–90° to position the text perpendicular to the viewer—completely invisible from the front view. You'll see only the layer's bounding box and colored axis arrows, confirming the 90-degree positioning.

8. Select the middle keyframe at 8;00 and apply F9 (Easy Ease) to create smooth, natural motion curves. Easy Ease prevents mechanical-looking constant velocity changes.

9. Select all three keyframes by clicking the Y Rotation property name, then copy them with Cmd–C (Mac) or CTRL–C (Windows).

10. Position the playhead at 9;20 for the second line's animation start—this 2-second delay creates appealing staggered motion rather than simultaneous animation.

11. Select the line 2 layer and paste the copied keyframes, instantly replicating the rotation sequence.

12. Trim this layer's in-point using Opt–[ (Mac) or ALT–[ (Windows) to match the animation timing precisely.

13. Navigate to 8;00 where existing keyframes provide convenient timing reference—press J repeatedly to jump between keyframe positions efficiently.

14. Select the space pic layer (bottom of the visible stack) and set its in-point using Opt–[ (Mac) or ALT–[ (Windows) to begin at the current playhead position.

15. Paste the rotation keyframes to the space pic layer. Notice the layer may not become invisible as expected—this reveals important principles about 3D perspective and camera angles.
