Intro to Auto-Animate

Topics Covered in This Adobe XD Tutorial:

Master the fundamentals of Auto-Animate, explore sophisticated easing techniques, and implement timed Animation sequences that bring your prototypes to life.

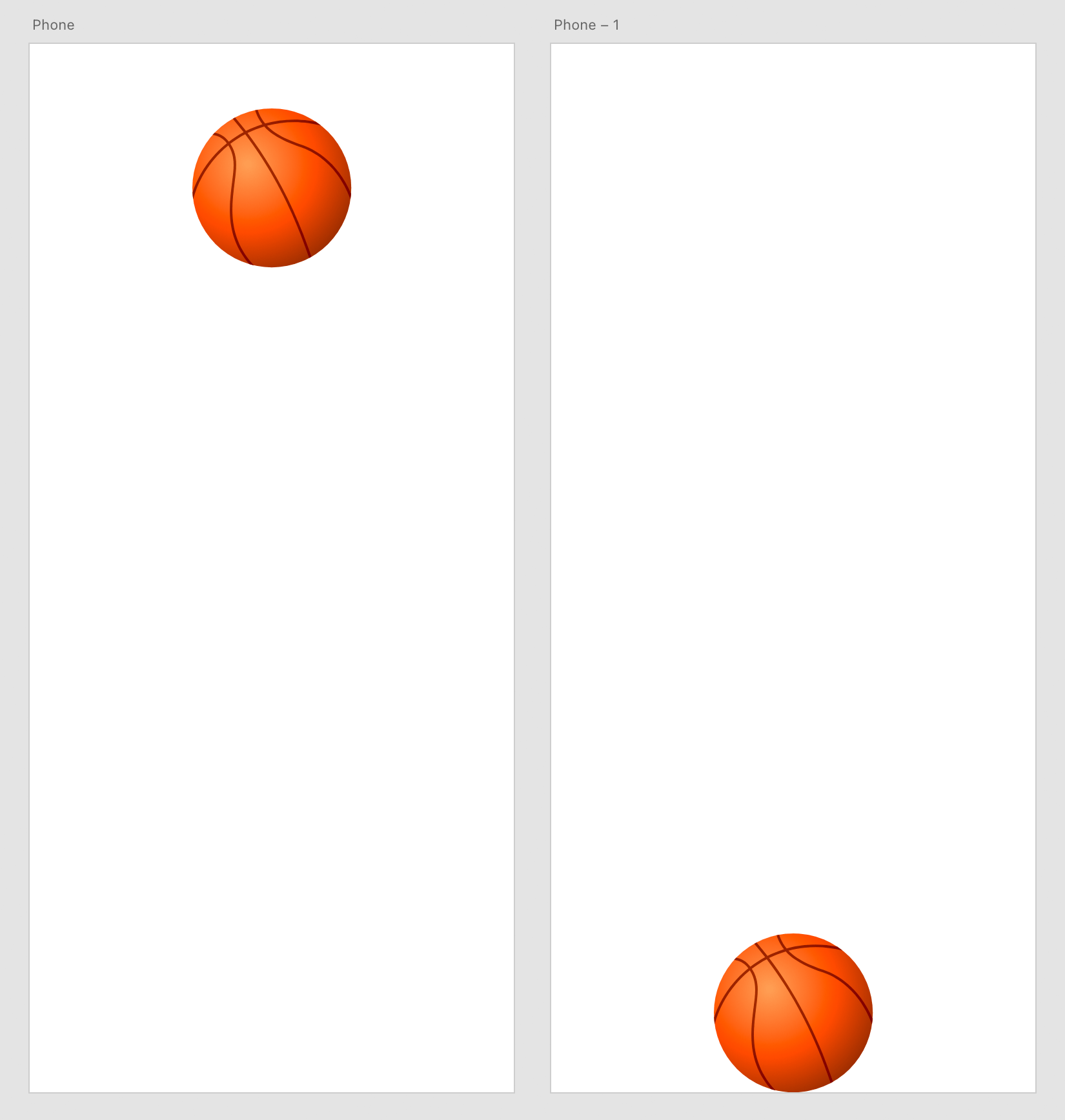

Exercise Preview

Exercise Overview

In this comprehensive exercise, you'll master Adobe XD's Auto-Animate feature to create compelling, dynamic prototypes that captivate stakeholders and users alike. Auto-Animate transforms static designs into engaging experiences by seamlessly transitioning between artboards, making your prototypes feel like fully functional applications. This skill is essential for modern UX professionals who need to communicate complex interaction patterns and validate design concepts through realistic motion.

The Basics of Auto-Animate

Let's start by setting up a simple animation that demonstrates the core principles of Auto-Animate. You'll create a bouncing ball effect that showcases how XD intelligently interpolates between object states across different artboards.

1. In Adobe XD, go to File > Open from Your Computer or hit Cmd–Shift–O (Mac) or CTRL–Shift–O (Windows).
2. Navigate into Desktop > Class Files > Adobe XD Class and double–click on Auto-Animate.xd to open it.
3. In the Toolbar, choose the Select tool .
4. Select the artboard by clicking on the artboard name Phone (at the top left of the artboard). This ensures you're duplicating the entire artboard rather than individual elements.
5. Duplicate it by hitting Cmd–D (Mac) or CTRL–D (Windows). This creates the end state for your animation.

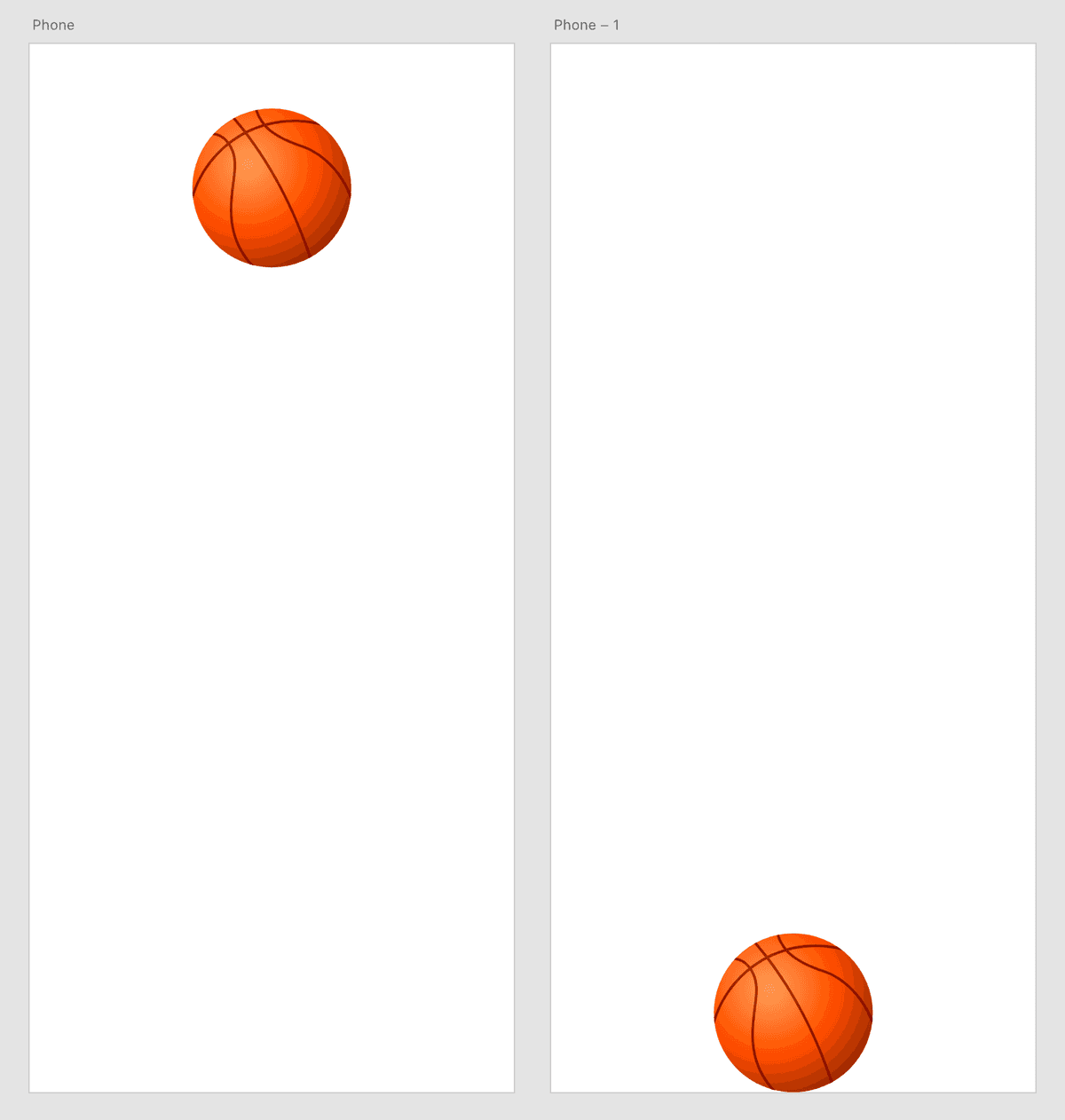

6. On the new artboard (on the right), drag the ball to the very bottom of the artboard. This establishes the final position that XD will animate toward.
7. At the top left of the window click Prototype to switch to prototyping mode, where you'll define the interactive behavior.
8. On the left artboard select the ball. This is your trigger element—the object users will interact with.
9. A blue arrow will appear on it. Drag the blue arrow to the artboard on the right to create the connection between your start and end states.

10. In the Property Inspector, set the following parameters to define your animation behavior:

    • Trigger: Tap
    • Type: Auto-Animate
    • Destination: Phone-1 (should already be set)
    • Easing: Ease Out
    • Duration: 1 s
11. At the top right of the window, click on Desktop Preview or hit Cmd–Return (Mac) or CTRL–Enter (Windows) to launch the interactive preview.

12. Click on the ball to see it animate down to the bottom of the screen. While functional, this linear movement lacks the organic feel that makes animations truly engaging.

Different Kinds of Easing

Easing is where animation transforms from mechanical to magical. It's the secret ingredient that makes digital interactions feel natural and satisfying. Think of easing as the difference between a robot's movements and human gestures—it adds personality and physics to your prototypes.

Understanding easing terminology is crucial: Ease In starts slow and accelerates (like a car pulling away from a traffic light), Ease Out starts fast then decelerates (like a car approaching a red light), and Ease In-Out combines both for smooth, organic movement. Advanced easings like Wind-Up and Bounce simulate real-world physics, creating more engaging and memorable interactions.

1. Keep the preview window open but move it to the left side so it doesn't cover the work area. It will update as we work, giving you real-time feedback on your changes.
2. With the ball on the left artboard still selected, in the Property Inspector change Easing to Wind-Up.
3. Hit Cmd–Return (Mac) or CTRL–Enter (Windows) to reload the preview window.

4. Click on the ball to see it moves up a little before dropping.

   Wind-Up creates anticipation—like a baseball pitcher winding up before the throw, or a character in animation preparing for action. This principle of anticipation is fundamental to creating animations that feel intentional and polished.

5. In the Property Inspector change Easing to Bounce.
6. Hit Cmd–Return (Mac) or CTRL–Enter (Windows) to reload the preview window.
7. Click on the ball to see it falls down and bounces (like a ball would). Notice how this immediately makes the interaction feel more playful and responsive.

8. Close the preview window when you're ready to move to the next phase.

Adding a Timed Animation

Timed animations unlock the potential for sophisticated, multi-step interactions that guide users through complex processes without requiring constant input. This technique is invaluable for creating onboarding flows, micro-interactions, and progressive disclosure patterns that enhance user experience.

1. At the top left of the window, click on Design to return to design mode for editing your artboards.
2. Select the right artboard by clicking on the artboard name Phone-1.
3. Duplicate it by hitting Cmd–D (Mac) or CTRL–D (Windows). This creates the final state of your animation sequence.
4. On the right-most artboard select the ball. You're about to create a fade-out effect that simulates the ball disappearing.
5. In the Property Inspector, if the lock connecting W and H is unlocked, click it to lock it. This maintains the ball's proportions as you resize.
6. On the right artboard, grab the top middle resize handle and drag down to make the ball smaller (so it ends up roughly half of its original size). This scaling effect adds visual interest to the fade transition.
7. In the Property Inspector, reduce Opacity to 0%. Combined with the scaling, this creates a sophisticated disappearing effect.
8. At the top left of the window click Prototype to return to prototyping mode.
9. Select the middle artboard by clicking on its name. This triggers the automatic transition to your fade-out state.
10. A blue arrow will appear on the right (vertically in the middle of the artboard). This represents the artboard-level trigger.
11. Drag the blue arrow to the artboard on the right to establish the timed connection.

12. In the Property Inspector, configure the timed animation with these settings:

    • Trigger: Time
    • Delay: 0 s
    • Type: Auto-Animate
    • Destination: Phone-2 (should already be set)
    • Easing: Ease In
    • Duration: .5 s
13. Click in an empty part of the artboard to make sure nothing is selected, ensuring clean preview behavior.
14. At the top right of the window, click on Desktop Preview or hit Cmd–Return (Mac) or CTRL–Enter (Windows).

15. Click the ball and watch as it drops, then automatically scales down and fades away in a seamless sequence.

    This chaining technique enables you to create complex, multi-step animations that feel cinematic and professional. You can extend this pattern indefinitely, creating sophisticated interaction flows that rival native app experiences. This foundational skill will serve you throughout more advanced XD projects where seamless transitions are crucial for user engagement.
