Grid: Sizing & Placing Items Within the Grid

Topics Covered in This Web Development Tutorial:

Spanning Columns & Rows, Placing & Sizing Using Numbered Grid Lines, Naming Grid Lines

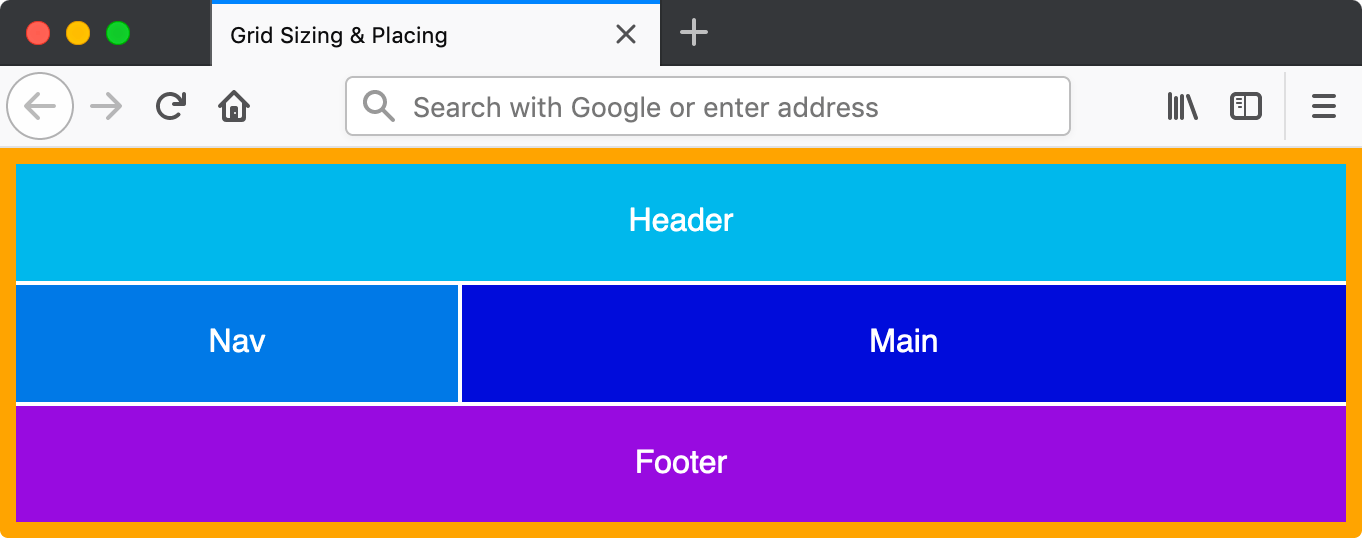

Exercise Preview

Exercise Overview

CSS Grid has revolutionized how we approach web layouts, offering unprecedented control over element positioning and sizing. In this hands-on exercise, you'll master the essential techniques for placing and sizing grid items with precision. These skills are fundamental to creating professional, responsive layouts that adapt seamlessly across devices—a critical requirement in today's multi-platform web environment.

Getting Started

1. In your code editor, close any files you may have open to ensure a clean workspace.
2. Navigate to the Grid Sizing and Placing folder located in Desktop > Class Files > yourname-Flexbox Grid Class. If you're using a modern code editor like Visual Studio Code, WebStorm, or Sublime Text, consider opening the entire folder to access the integrated file explorer and better project management.

3. Open index.html from the Grid Sizing and Placing folder.

   • Examine the structure: a .container div wraps four semantic elements—header, nav, main, and footer. This represents a classic webpage layout pattern used across millions of websites.

4. Preview index.html in Firefox (or your preferred modern browser with robust DevTools).

   • Notice the .container div displays an orange border for visual reference, while each child element has distinct background colors to help you track layout changes.
   • Currently, the header, nav, main, and footer elements follow normal document flow, each taking the full width of their container—this is about to change dramatically.

5. Keep index.html open in your browser throughout this exercise. You'll be refreshing frequently to observe how CSS Grid transforms the layout step by step.

Starting the Grid

Now we'll transform our basic document flow into a sophisticated grid layout. This fundamental step establishes the grid container and defines the initial column and row structure.

1. Switch back to your code editor.
2. Open main.css from the css folder within the Grid Sizing and Placing directory.

3. In the .container rule, add the following grid properties:

   .container {
      display: grid;
      grid-template-columns: 1fr 2fr;
      grid-template-rows: 90px 90px;
      gap: 2px;
      border: 8px solid orange;
   }

4. Save the file and reload the page in your browser.

   • You should see a two-column grid where the right column is twice as wide as the left column (thanks to the 1fr and 2fr values).
   • Notice that a third row appears automatically—this is CSS Grid's intelligent auto-placement at work, creating implicit rows when needed.

Spanning Columns

Column spanning allows elements to stretch across multiple grid columns, essential for creating headers, footers, and other full-width components. This technique is fundamental to building modern web layouts.

1. Return to your code editor.

2. In the header rule, add the column spanning property:

   header {
      grid-column: span 2;
      background: #0db8e8;
   }

3. Save the file and reload the page.

   • The header now spans both columns, creating the classic full-width header pattern.
   • Observe how the footer automatically moves to the third row—Grid's intelligent auto-placement ensures no overlap occurs.
4. Switch back to your code editor.

5. Apply the same spanning technique to the footer:

   footer {
      grid-column: span 2;
      background: #9700da;
   }

6. Save and reload to see the footer now spanning both columns.

7. Let's explore Grid's flexibility. Ctrl+click (Mac) or Right-click (Windows) anywhere in the grid and choose Inspect Element.
8. In the DevTools, locate <div class="container"> and click the grid button to activate the grid overlay—a powerful visualization tool for understanding grid behavior.
9. Keep the DevTools open with the grid overlay active as you continue.
10. Let's test Grid's adaptability. In the header rule, temporarily change the span value:

11. Modify the span value to see Grid's dynamic behavior:

    header {
       grid-column: span 4;
       background: #0db8e8;
    }

12. Save and reload the page.

    • Notice how Grid automatically creates additional columns to accommodate the span of 4—this demonstrates Grid's ability to expand beyond explicitly defined tracks.
13. Switch back to your code editor.

14. Revert to the practical two-column span:

    header {
       grid-column: span 2;
       background: #0db8e8;
    }

Spanning Rows

Row spanning enables vertical layout control, perfect for sidebars, navigation areas, and content sections that need to occupy multiple rows. This creates more sophisticated, magazine-style layouts.

1. Apply row spanning to the navigation element:

   nav {
      grid-row: span 2;
      background: #0978e2;
   }

2. Save and reload the page.

   • The navigation now spans two rows, creating a classic sidebar layout. Notice how Grid creates a fourth implicit row to accommodate all elements without overlap.
   • This demonstrates a key Grid principle: you don't need to fill every grid cell. Empty spaces are perfectly acceptable and often contribute to cleaner, more readable layouts.

3. Enhance your understanding with Firefox's advanced grid tools. In the DevTools Grid section, enable Display line numbers.

   • Study the numbering system: positive numbers count from left-to-right and top-to-bottom, while negative numbers count in reverse—from right-to-left and bottom-to-top.
   • This dual numbering system provides flexibility when positioning elements, especially in responsive designs where the total number of columns or rows might vary.

Placing & Sizing Using Numbered Grid Lines

Grid line numbers offer precise control over element positioning. This systematic approach to layout is essential for complex designs and provides a foundation for advanced Grid techniques used in professional web development.

1. Return to your code editor for more granular control.

2. Replace the span-based approach with explicit line positioning in the header rule:

   header {
      grid-column-start: 1;
      grid-column-end: 2;
      background: #0db8e8;
   }

   NOTE: These numbers reference grid lines, not columns. Line 1 is the leftmost boundary, line 2 is the first internal divider, and so on.

3. Save and reload to see the header now occupying only the first column.

   • The header starts at line 1 and ends at line 2, effectively occupying the space between these boundaries.
4. Experiment with different positioning by modifying the line values:

5. Move the header to the right column:

   header {
      grid-column-start: 2;
      grid-column-end: 3;
      background: #0db8e8;
   }

6. Save and reload to see the header positioned in the right column.

7. Now explore the power of negative line numbers:

8. Use negative indexing for flexible positioning:

   header {
      grid-column-start: 1;
      grid-column-end: -1;
      background: #0db8e8;
   }

   NOTE: The -1 value always refers to the final explicit grid line, making your code more resilient to layout changes.

9. Save and reload—the header should span the entire grid width.

10. Switch back to your code editor for a more efficient approach.

11. Combine the positioning properties using the shorthand syntax:

    header {
       grid-column: 1 / -1;
       background: #0db8e8;
    }

    NOTE: The shorthand follows the pattern grid-column: start / end;
    Advanced options include:
    • grid-column: span 2 / 5; (span 2 columns, ending at line 5)
    • grid-column: 2 / span 3; (start at line 2, span 3 columns)

12. Save and reload to confirm the header maintains its full-width appearance with cleaner code.

13. Apply similar precision to the navigation element:

14. Update the nav rule with explicit line positioning:

    nav {
       grid-row: 2 / -1;
       background: #0978e2;
    }

15. Save and reload the page.

    • You might expect the nav to extend to the bottom of the grid, but it doesn't. This illustrates an important Grid concept: -1 refers to the last explicit grid line only.
    • Elements that don't fit within explicit rows create implicit rows beyond the -1 boundary. We'll resolve this by repositioning the footer.
16. Optimize the layout by positioning the footer in the available space:

17. Modify the footer to utilize the empty grid area:

    footer {
       grid-column: 2 / -1;
       background: #9700da;
    }

18. Save and reload—the footer should now occupy the empty space below the main content, creating a clean three-row layout.

19. Finally, implement responsive height behavior:

20. Replace fixed pixel heights with flexible sizing:

    .container {
       display: grid;
       grid-template-columns: 1fr 2fr;
       grid-template-rows: auto auto;
       gap: 2px;
       border: 8px solid orange;
    }

    NOTE: The auto value creates content-responsive rows that expand and contract based on their contents—essential for responsive design and accessibility.

21. Save and reload to see how the rows now adapt to their content, creating a more flexible and maintainable layout.

Naming Grid Lines

Named grid lines transform numeric references into semantic, maintainable code. This approach scales beautifully in large projects and makes collaboration more intuitive—critical factors in professional development environments where code readability directly impacts long-term maintenance costs.

1. Switch back to your code editor to implement semantic naming.

2. Begin by naming the outer column boundaries:

   .container {
      display: grid;
      grid-template-columns: [container-start] 1fr 2fr [container-end];

   Code Omitted To Save Space

   }

3. Add semantic names for the navigation area boundaries:

   grid-template-columns: [container-start nav-start] 1fr [nav-end] 2fr [container-end];

4. Complete the column naming by defining the main content area:

   grid-template-columns: [container-start nav-start] 1fr [nav-end main-start] 2fr [main-end container-end];

5. Enhance readability by formatting the row definitions across multiple lines:

   .container {
      display: grid;
      grid-template-columns: [container-start nav-start] 1fr [nav-end main-start] 2fr [main-end container-end];
      grid-template-rows:
         auto
         auto
         ;
      gap: 2px;

   Code Omitted To Save Space

   }

6. Define the outer container boundaries for rows:

   .container {

   Code Omitted To Save Space

   grid-template-rows:
         [container-start]
         auto
         auto
         [container-end];
      gap: 2px;

   Code Omitted To Save Space

   }

7. Add semantic boundaries for the main content area:

   grid-template-rows:
      [container-start]
      auto
      [main-start]
      auto
      [main-end]
      auto
      [container-end];

8. Define navigation area boundaries within the row structure:

   grid-template-rows:
      [container-start]
      auto
      [main-start nav-start]
      auto
      [main-end nav-end]
      auto
      [container-end];

9. Complete the semantic naming system with footer boundaries:

   grid-template-rows:
      [container-start]
      auto
      [main-start nav-start]
      auto
      [main-end nav-end footer-start]
      auto
      [container-end footer-end];

10. Now leverage these semantic names in element positioning. Update the header rule:

    header {
        grid-column: container-start / container-end;
        background: #0db8e8;
    }

11. Save and reload to confirm the layout remains unchanged while the code becomes more maintainable.

12. CSS Grid provides an elegant shortcut for named lines with -start and -end suffixes:

13. Simplify the header positioning using the naming convention shortcut:

    header {
        grid-column: container;
        background: #0db8e8;
    }

    NOTE: When you use paired names ending in -start and -end, Grid recognizes the base name as a shorthand reference—a powerful feature for clean, semantic code.

14. Save and reload to verify the simplified syntax produces identical results.

15. Apply the same semantic approach to other elements:

16. Update the footer with semantic naming:

    footer {
        grid-column: container;
        background: #9700da;
    }

17. Correct the navigation positioning using semantic column names:

    nav {
        grid-column: nav;
        background: #0978e2;
    }

18. Save and reload one final time to confirm your semantic grid layout functions perfectly.

    • The layout should be identical to previous iterations, but your code is now self-documenting and significantly more maintainable—essential qualities for professional web development projects.

Optional Bonus: Setting a Max-Width & Centering

Professional websites require responsive constraints and centering techniques. Grid containers can be styled like any block-level element, allowing you to combine Grid's internal layout power with traditional container management—a essential skill for creating polished, production-ready websites.

1. Return to your code editor for the finishing touches.

2. Add responsive width constraints and centering to the container:

   .container {
      max-width: 1000px;
      margin: auto;
      display: grid;

   Code Omitted To Save Space

   }

3. Save and reload the page to observe the enhanced layout behavior.

   • The grid container now has a maximum width of 1000px and centers automatically on wider screens—creating a professional, readable layout that works beautifully across all device sizes.
   • This technique combines the best of both worlds: Grid's powerful internal layout capabilities with responsive design best practices.
