Flexbox: Sizing & Alignment

Topics Covered in This Web Development Tutorial:

Master advanced Flexbox techniques including precise size control with Flex-Grow, Flex-Shrink, & Flex-Basis, strategic alignment of all versus specific flex items, professional nesting patterns, and efficient Flex shorthand syntax.

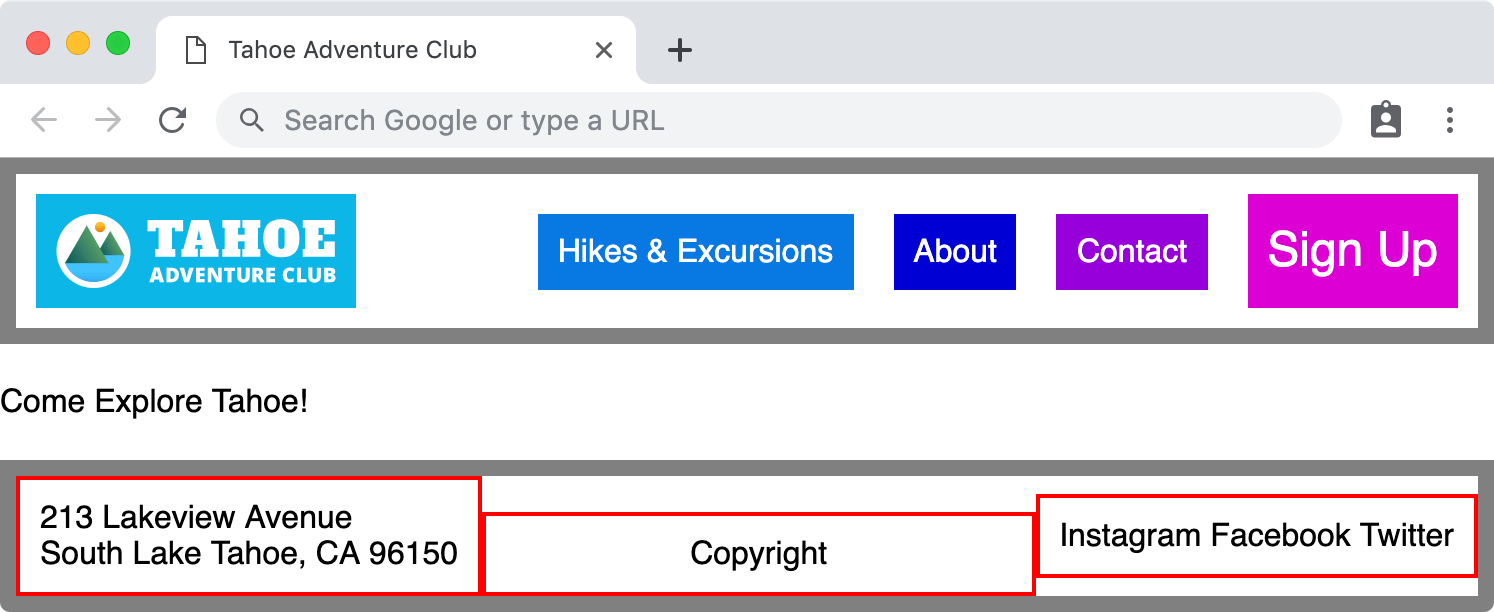

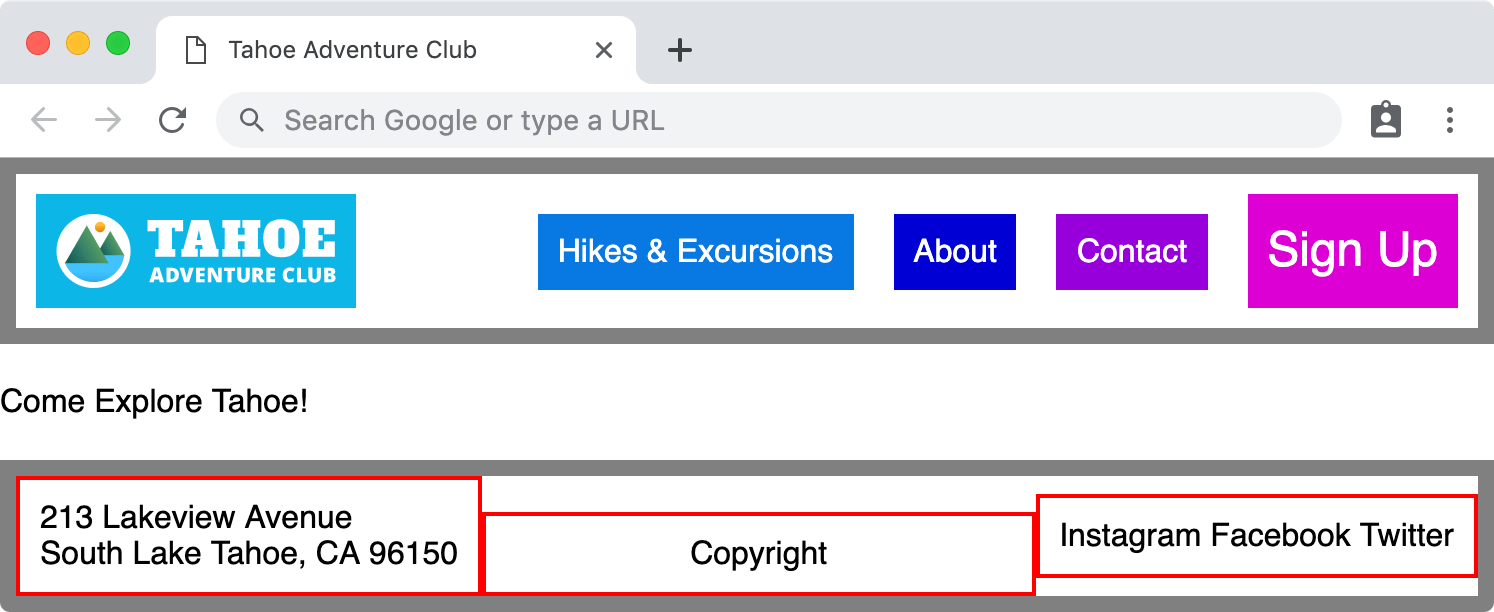

Exercise Preview

Exercise Overview

This exercise will transform your understanding of flex item manipulation. You'll master the precise control of sizing and alignment for flex items (children of a flex container), learning techniques that professional developers rely on for responsive, maintainable layouts in modern web applications.

Getting Started

1. In your code editor, close any files you may have open to maintain focus.
2. For this exercise, navigate to the Flexbox Size Alignment folder located in Desktop > Class Files > yourname-Flexbox Grid Class. Consider opening the entire folder in your code editor (Visual Studio Code, Sublime Text, or similar) for efficient file management.
3. Open index.html from the Flexbox Size Alignment folder.

4. Preview index.html in a modern browser (Chrome, Firefox, Safari, or Edge).

   • This page builds upon the foundation you established in the previous exercise.
   • Observe how the colored navigation items don't utilize the full width of the navbar—a common layout challenge we'll solve.
   • Notice the red-outlined divs in the footer stack vertically due to their default block behavior. We'll transform these into a professional horizontal layout with precise sizing and alignment.

5. Keep index.html open in your browser throughout this exercise. This live preview approach mirrors professional development workflows where immediate visual feedback accelerates learning and debugging.

Controlling Size with Flex-Grow

The flex-grow property is your primary tool for distributing available space among flex items. Understanding its behavior is crucial for creating responsive layouts that adapt elegantly to different screen sizes. The default value of 0 means "don't grow," but positive numbers unlock powerful space distribution capabilities.

1. Return to your code editor.
2. Open main.css from the css folder within the Flexbox Size Alignment directory.

3. In the .navbar li rule, add the following code to enable growth:

   .navbar li {
      flex-grow: 1;
      color: white;
      padding: 10px;
   }

4. Save the file and reload your browser.

   • The navigation items now span the full navbar width—a significant improvement in visual balance.
   • Here's the key insight: Flexbox calculates remaining space after content sizing, then distributes that space proportionally based on flex-grow values. Since all items share the same flex-grow value (1), they receive equal portions of the available space.
5. Switch back to your code editor.
6. Navigate to index.html.

7. Add a new navigation item to test Flexbox's adaptive behavior:

   <li class="hikes">Hikes & Excursions</li>
   <li class="about">About</li>
   <li class="contact">Contact</li>

8. Save and reload to observe Flexbox's intelligent rebalancing.

   • The existing CSS automatically styles the new About item—demonstrating the power of well-structured stylesheets.
   • Notice how Flexbox seamlessly accommodates the additional item, redistributing space while maintaining visual harmony.
   • This adaptive behavior is why Flexbox has become the foundation for modern responsive design patterns.
9. Return to your code editor.
10. Switch to main.css.

11. Let's explore proportional space distribution by modifying the .navbar .about rule:

    .navbar .about {
       flex-grow: 2;
       background: #0000d5;
    }

12. Save and reload to see proportional growth in action.

    • The About element now receives twice the extra space of its siblings, creating visual emphasis through size.
    Flex-Grow Default Behavior

    The default value for flex-grow is 0, which means elements do not grow. Setting it to a positive number allows flex items to expand and fill available space.

    Flex-Grow Values Impact

    Feature	Before (flex-grow: 0)	After (flex-grow: 1)
    Space Usage	Items use minimum space	Items fill entire width
    Distribution	Leftover space unused	Space divided equally
    Responsiveness	Fixed item sizes	Dynamic sizing

    Recommended: Use flex-grow: 1 for equal distribution, higher values for proportionally larger items

Aligning All Vs. Specific Flex Items

Flexbox provides dual alignment control: container-level properties that affect all items, and item-level properties for individual customization. This hierarchical approach enables both consistent layouts and strategic exceptions—essential for professional interface design.

1. Return to your code editor.

2. Implement vertical centering across all footer items. Since we're using the default row direction, the cross axis controls vertical alignment:

   footer {
      display: flex;
      align-items: center;
      border: 8px solid gray;
      margin-top: 20px;
   }

3. Save and observe the vertical centering effect.

   • All footer sections now align to their vertical center, creating visual balance regardless of content height differences.
   • This container-level alignment provides consistent baseline behavior while maintaining flexibility for individual adjustments.
4. Switch back to your code editor.

5. Override the container alignment for the copyright section to demonstrate individual control:

   footer .copyright {
      flex-grow: 1;
      align-self: flex-end;
      text-align: center;
   }

6. Save and reload to see the individual alignment override.

   • The copyright text now aligns to the footer's bottom edge, creating visual distinction while maintaining the centered horizontal alignment.

   NOTE: Understanding the distinction between container and item properties is fundamental to Flexbox mastery. Container properties (align-items, justify-content) establish default behavior, while item properties (align-self, flex-grow) enable precise individual control. CSS Tricks' Complete Guide to Flexbox at tinyurl.com/flexref remains the definitive reference, with clear property classifications and real-world examples.

Nesting Flexbox

Flexbox's true power emerges through nesting—using flex containers as flex items within larger flex containers. This pattern enables complex, responsive layouts while maintaining clean, semantic HTML structure.

1. Return to your code editor.
2. Remove the flex-grow: 1; from the .navbar li rule to reset navigation sizing.

3. Add vertical centering to the navbar for improved visual alignment:

   .navbar {
      display: flex;
      align-items: center;
      border: 8px solid gray;

   Code Omitted To Save Space

   }

4. Save and reload to observe the improved navbar alignment.

   • The logo and navigation items now align along their vertical centers, creating a more polished, professional appearance.
   • This foundation enables more sophisticated individual item positioning.
5. Switch back to your code editor.

6. Make the Sign Up button visually prominent by stretching it to full navbar height:

   .navbar .signup {
      align-self: stretch;
      background: #dc00d4;
      font-size: 1.5em;
   }

7. Save and reload to see the height extension.

   • The Sign Up button now spans the full navbar height, creating strong visual emphasis.
   • However, the text alignment needs refinement—this is where nesting becomes essential.
8. Switch back to your code editor.

9. Transform the Sign Up item into a nested flex container for precise content control:

   .navbar .signup {
      align-self: stretch;
      display: flex;
      align-items: center;
      background: #dc00d4;
      font-size: 1.5em;
   }

10. Save and reload to see nested flexbox in action.

    • The Sign Up text now centers perfectly within the full-height colored background—demonstrating how nesting solves complex alignment challenges elegantly.
11. Return to your code editor.

12. Add consistent spacing throughout the navigation:

    .navbar li {
       margin: 10px;
       color: white;
       padding: 10px;
    }

13. Save and test the layout at various window sizes.

    • The added whitespace improves visual breathing room and touch target accessibility.
    • Notice how the logo scales down as its container shrinks, and the Sign Up text wraps at narrow widths—behaviors we'll refine next.

Controlling Size with Flex-Shrink

While flex-grow manages space distribution, flex-shrink controls how elements respond to space constraints. In an era where responsive design spans from smartwatches to ultrawide monitors, mastering shrink behavior is crucial for maintaining layout integrity across all viewports.

1. Return to your code editor.

2. Prevent the Sign Up button from shrinking to maintain its prominence:

   .navbar .signup {
      align-self: stretch;
      flex-shrink: 0;
      display: flex;
      align-items: center;
      background: #dc00d4;
      font-size: 1.5em;
   }

3. Apply the same protection to the logo for brand consistency:

   .navbar .logo {
      flex-shrink: 0;
      margin-right: auto;
      background: #0db8e8;
   }

4. Save and test the responsive behavior by resizing your browser window.

   • The logo and Sign Up button now maintain their sizes, while other navigation items adapt to space constraints—a professional approach that preserves brand elements and key calls-to-action.

Sizing with Flex-Basis

The flex-basis property defines the initial main size of flex items before free space distribution. Think of it as the "preferred size" that serves as the starting point for grow and shrink calculations—essential for creating predictable, maintainable layouts.

1. Return to your code editor.

2. Set an optimal width for the logo container:

   .navbar .logo {
      flex-shrink: 0;
      flex-basis: 160px;
      margin-right: auto;
      background: #0db8e8;
   }

   NOTE: The provided CSS includes max-width: 100%; on images, ensuring the logo image scales proportionally as its container size changes. This responsive image behavior is crucial for maintaining visual quality across different layouts and prevents overflow issues.

3. Save and observe the refined logo sizing.

   • The logo container now maintains an optimal width that balances brand visibility with efficient space utilization.

   NOTE: Flex-basis establishes the starting point before growth or shrinkage occurs. The final rendered size depends on available space and the flex-grow/flex-shrink values. For guaranteed sizing, combine flex-basis with flex-grow: 0 and flex-shrink: 0.

Flex Shorthand

The flex shorthand property combines flex-grow, flex-shrink, and flex-basis into a single, efficient declaration. This consolidation not only reduces code volume but also encourages thinking about all three properties as an integrated sizing system.

• The syntax follows the pattern: flex: flex-grow flex-shrink flex-basis;
• The default value is flex: 0 1 auto; (don't grow, allow shrinking, size to content)

1. Return to your code editor.

2. Consolidate the logo's flex properties using the shorthand syntax:

   .navbar .logo {
      flex: 0 0 160px;
      margin-right: auto;
      background: #0db8e8;
   }

3. Save and reload to confirm identical visual behavior.

   • The layout remains unchanged, but your CSS is now more concise and explicitly declares all sizing intentions in a single property.

You've now mastered the core Flexbox sizing and alignment techniques that form the foundation of modern, responsive web layouts. These patterns—proportional growth, selective shrinking, strategic alignment, and efficient nesting—are the building blocks for creating professional interfaces that adapt seamlessly across all devices and screen sizes.
