Setting the Viewport Meta Tag

Topics Covered in This HTML & CSS Tutorial:

Disabling Mobile Browser Text Size Adjustment, the Viewport Meta Tag, Device-width, Initial-scale, Maximum-scale

Exercise Preview

Exercise Overview

The viewport meta tag is one of the most critical elements for responsive web design, yet it's often misunderstood or implemented incorrectly. This seemingly simple HTML element controls how your webpage renders on mobile devices, determining whether users see a properly optimized mobile experience or a frustratingly scaled-down desktop version. Without proper viewport configuration, mobile browsers default to rendering pages at typical desktop widths (usually 980px) and then scale the entire page to fit the smaller screen—a behavior that made sense in 2007 but creates poor user experiences today.

Mastering viewport configuration gives you precise control over page width and scaling behavior across the diverse landscape of mobile devices your users encounter daily. This exercise will walk you through implementing these essential techniques using real-world examples.

1. If you completed the previous exercise, you can skip the following sidebar. If you closed sanfran.html, re-open it now. We recommend you finish the previous exercises (3B–4D) before starting this one. If you haven't finished them, do the following sidebar.

   Understanding Viewport Control

   The viewport meta tag controls how a webpage is displayed on a mobile device. Without it, mobile devices render pages at typical desktop screen width, scaled to fit the screen.

Disabling Mobile Browser Text Size Adjustment

While your webpage may respond beautifully in a desktop browser, mobile devices present unique challenges that require specialized testing. Modern browsers include sophisticated mobile simulators that closely replicate real device behavior, making them indispensable tools for responsive development.

Before we configure the viewport, we need to address a common issue: mobile browsers often apply automatic text size adjustments, overriding your carefully crafted typography decisions. This "helpful" feature can create inconsistent visual hierarchies and break your design's intended balance.

1. Preview sanfran.html in Chrome.
2. To open the DevTools, CTRL–click (Mac) or Right–click (Windows) on the page and choose Inspect.
3. At the top left of the DevTools panel, click the Toggle device toolbar button to open the mobile simulator.

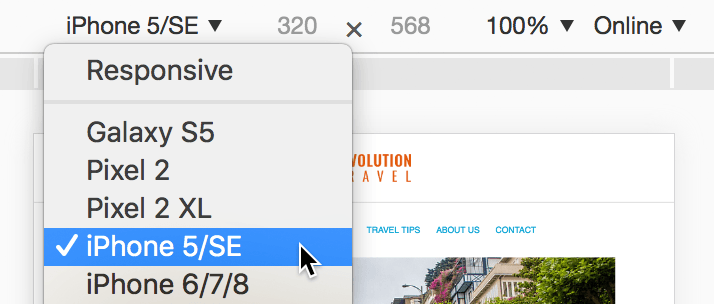

4. Above the webpage preview, select a device such as the iPhone 5/SE:



5. Click the Reload button, or hit Cmd–R (Mac) or CTRL–R (Windows).
6. Notice how the desktop layout appears scaled down (evident in the navigation bar), yet the main column text appears disproportionately large. This occurs because mobile browsers analyze your content and selectively enlarge text they determine might be too small to read comfortably. While well-intentioned, this automatic adjustment can undermine your responsive design strategy by creating inconsistent text scaling.
7. Switch back to your code editor.
8. Go to Revolution Travel > snippets and open the prepared code snippet text-size-adjust.css.
9. Hit Cmd–A (Mac) or CTRL–A (Windows) to select all the code.
10. Hit Cmd–C (Mac) or CTRL–C (Windows) to copy it.
11. Close the file.

12. At the top of main.css, paste the new code above the body rule:

    html {
       -moz-text-size-adjust: 100%;
       -webkit-text-size-adjust: 100%;
       text-size-adjust: 100%;
    }
    body {

    This CSS declaration tells browsers to maintain your original font sizes at 100%—no automatic adjustments. The vendor prefixes ensure compatibility across different browser engines, with the unprefixed version providing future-proof support as the standard evolves.

13. Save the file.
14. Switch back to Chrome and reload the page.

15. The text now displays at your intended sizes, eliminating browser-imposed scaling. However, you're now seeing the core problem: the entire desktop layout crammed into a mobile viewport. This scaled-down approach creates poor usability—users must zoom and pan to read content, defeating the purpose of responsive design. Next, we'll implement the viewport meta tag to address this fundamental issue.

The Viewport Meta Tag

The viewport meta tag represents a paradigm shift in how mobile browsers interpret web content. Historically, mobile browsers assumed all websites were designed exclusively for desktop screens. To accommodate this, they would render pages using a virtual viewport (typically 980px wide) and then scale the entire result to fit the physical screen. This approach worked reasonably well for non-responsive sites in the early smartphone era, but it's counterproductive for modern responsive designs.

By implementing the viewport meta tag correctly, you're explicitly instructing mobile browsers to abandon this legacy behavior and instead render your page using the device's actual screen dimensions. This fundamental change enables your responsive CSS media queries and flexible layouts to function as intended.

1. Keep the browser open in device mode so we can immediately preview the changes we're about to make.
2. In your code editor, switch to sanfran.html.

3. In the <head> tag, add the following bold code:

   <head>
      <meta charset="UTF-8">
      <meta name="viewport" content="width=device-width">
      <title>Travel Info for San Francisco, CA—Revolution Travel</title>

   This viewport declaration instructs mobile browsers to set the viewport width equal to the device's actual screen width, rather than using the default virtual viewport. Like other meta tags, it must be placed within the head section and should appear early in your document structure for optimal performance.

4. Save the file and reload the page in Chrome (which should still be in device mode).

   The transformation should be immediately apparent—your layout now displays with appropriate sizing and proportions for the mobile viewport. Text becomes readable without zooming, navigation elements are properly sized for touch interaction, and your responsive design patterns begin to take effect. The viewport meta tag exclusively affects mobile browsers; desktop browsers ignore it entirely since they don't employ viewport scaling behavior.

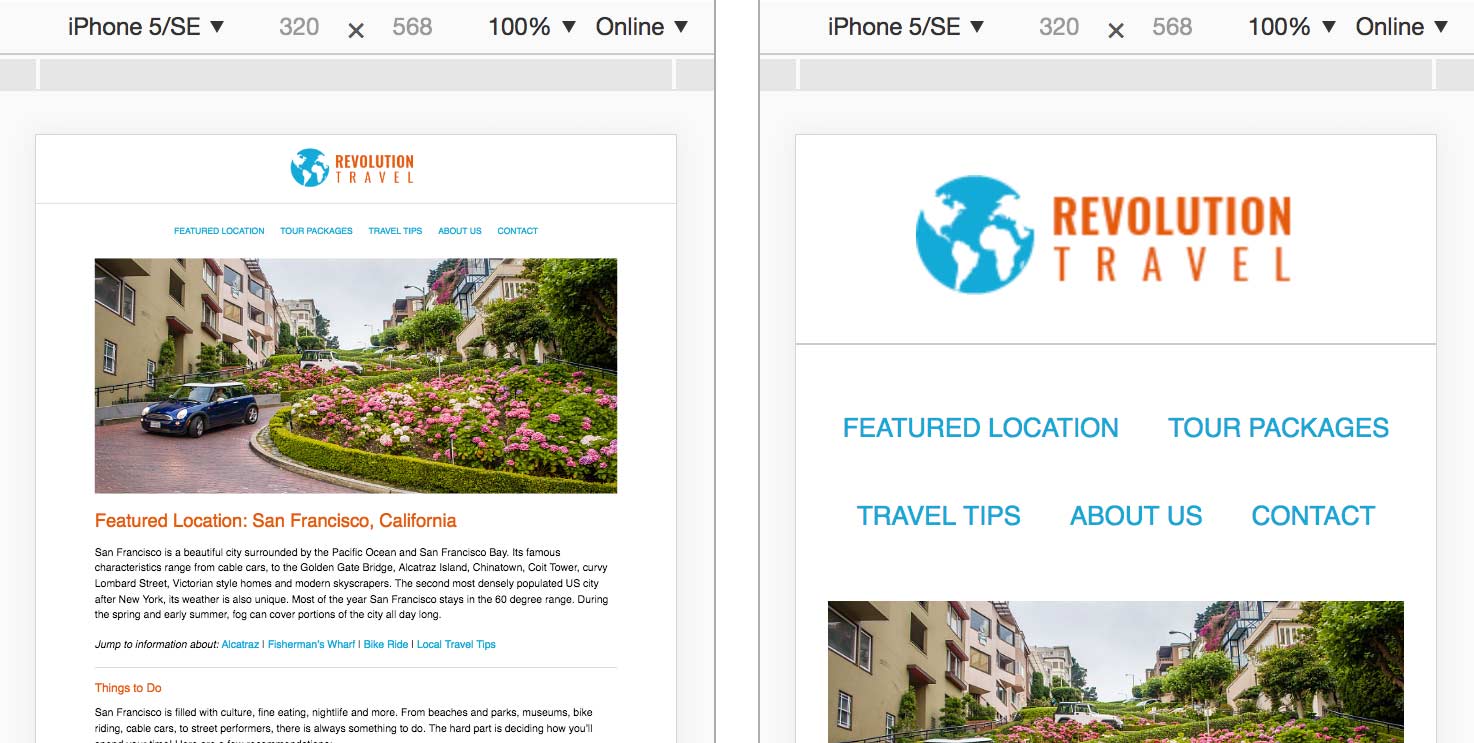

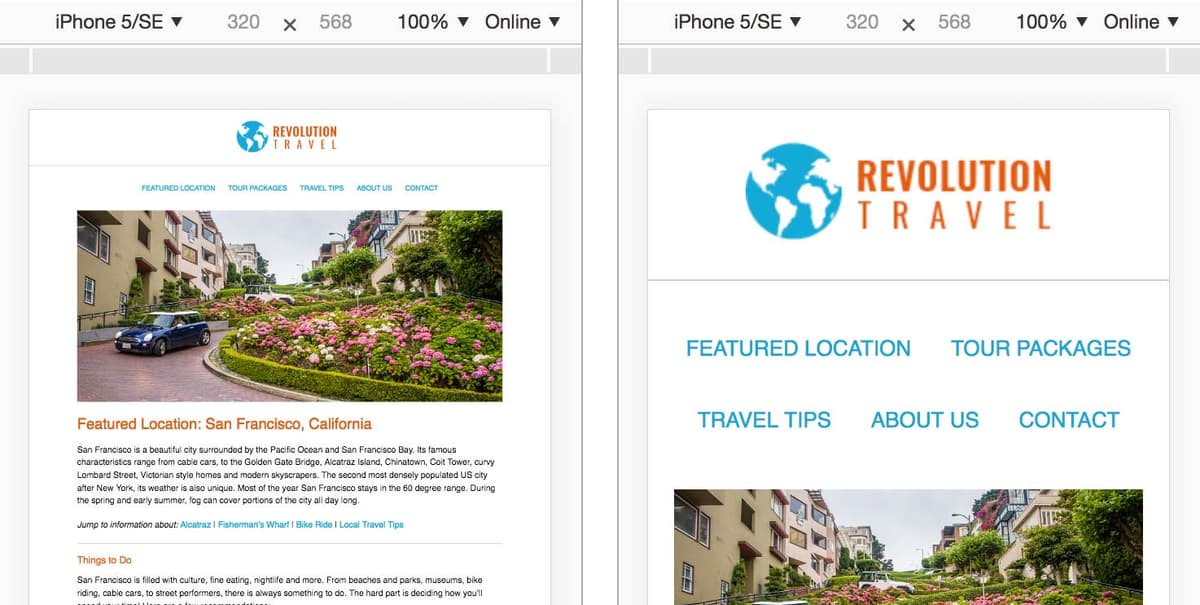

   The comparison above illustrates the dramatic difference: the left shows the cramped, scaled-down desktop layout, while the right demonstrates the properly optimized mobile experience achieved with the viewport meta tag.

5. Now let's examine orientation changes. In Chrome, above the webpage preview, click the Rotate button to switch to landscape orientation.

   The layout should reflow beautifully, displaying more content in the wider landscape viewport. This behavior demonstrates how proper viewport configuration enables your responsive design to adapt dynamically to different screen dimensions and orientations.

   However, there's a historical quirk to be aware of: on older iOS devices (iOS 8 and earlier), rotating to landscape mode would sometimes scale the portrait layout up to fill the wider screen, actually showing less content than expected. Most users intuitively expect to see more content when they rotate to a wider orientation. Fortunately, we can prevent this scaling behavior with an additional viewport parameter.

6. Back in sanfran.html, enhance the viewport meta tag with the following bold code (note the comma):

   <meta name="viewport" content="width=device-width, initial-scale=1">

   Default Mobile Viewport Behavior

   Default Mobile Viewport

   980

   iPhone 5/SE Width

   320

   Modern Phone Width

   375

   “

   Mobile devices assume websites were designed for desktops. They render the site on a large viewport (980px) and scale it down to fit their smaller screen.

   This explains why responsive sites need viewport meta tags to display properly on mobile devices.
