Relative Sizes: Em and Rem

Topics Covered in This HTML & CSS Tutorial:

Em Units, Rem Units

Exercise Preview

Exercise Overview

In this hands-on exercise, you'll master the fundamental differences between fixed sizing (pixels) and relative sizing (ems and rems). Understanding these CSS units is crucial for creating scalable, maintainable websites that adapt gracefully across devices and respect user preferences. By the end of this tutorial, you'll know when to use each unit type and how they impact your design system's flexibility.

Understanding Em Units in Practice

1. Let's start fresh to avoid any confusion. In your code editor, close all open files and prepare to work with a new set of prepared files.
2. Navigate to the Helping Hands Em vs. Rem folder located in Desktop > Class Files > Advanced HTML CSS Class. Open this entire folder in your code editor (Visual Studio Code and most modern editors support this workflow).
3. Open volunteer.html from the Helping Hands Em vs. Rem folder.

4. Preview volunteer.html in Chrome—we'll leverage its powerful DevTools for this exercise.

   This page builds upon our previous exercise with specific modifications designed to illustrate the behavior of relative units in real-world scenarios.

5. In Chrome, CTRL–click (Mac) or Right–click (Windows) on the Sign Me Up button and choose Inspect Element.

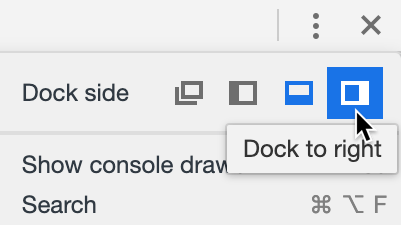

6. For optimal workflow, ensure the DevTools are docked to the right side of your browser window. If they're not already positioned there, click the button at the top right of the DevTools panel and select Dock to right as shown below:



7. In the Styles panel, locate the input[type="submit"] rule at the top of the cascade.
8. Click directly on the 20px value for the font-size property to make it editable.

9. Use your Up and Down Arrow keys to dynamically adjust the font size. Pay close attention to how the green padding area around the text remains relatively static as you change the font-size. While the padding does grow slightly due to line-height changes affecting vertical spacing, it doesn't scale proportionally.

   This demonstrates a key limitation of pixel-based sizing: to achieve truly proportional scaling of a button, you'd need to manually adjust both the font-size and padding values. This becomes unwieldy when managing complex design systems.

10. Keep the page open in Chrome—we'll return to it shortly.

Implementing Em Units for Typography

Now let's apply em units to create a cohesive typography system within the aside column (the right column on desktop layouts). This approach demonstrates how relative units can create scalable design systems.

1. Return to your code editor and the main.css file.

2. Near the top of the file, locate the h3 rule and update the font-size to use em units:

   h3 {
      color: currentColor;
      font-size: 1.25em;
      margin: 0 7px;
   }

3. Scroll down to find the aside section p rule and convert its font-size to em units:

   aside section p {
      font-size: 1em;
      margin: 0;
      overflow: hidden;
   }

4. To establish a baseline for our em calculations, locate the aside section rule and add a font-size declaration:

   aside section {
      font-size: 14px;
      background: #eee;
      border-radius: 8px;
      margin-top: 30px;
      padding: 30px;
      position: relative;
   }

   This creates a new context where 1em equals 14px within all section elements inside the aside. The h3 headings will now render at 17.5px (1.25 × 14px) and paragraphs at 14px (1 × 14px).

5. Save the file and reload the page in Chrome to see your changes in action.
6. CTRL–click (Mac) or Right–click (Windows) on the Volunteer Opportunities heading (positioned at the top of the right column on desktop, or below the form on mobile) and choose Inspect Element.
7. In the DevTools Elements panel, click on one of the three section tags below the selected h2 element to shift focus to a section container.
8. Verify that the aside section rule appears at the top of the Styles panel.
9. Click on the 14px font-size value to make it editable.

10. Press the Up Arrow key several times to increase the font-size and observe the cascading effects:

    • All headings and paragraphs within the three gray sections scale proportionally because they use em units tied to this parent context.
    • The time badges (Evening, Day, and Flexible) remain unchanged because they use fixed px units, demonstrating the selective nature of relative sizing.

This exemplifies the strategic advantage of em units: a single size adjustment cascades through multiple related elements, maintaining design consistency while enabling easy scaling. This approach becomes particularly valuable when implementing responsive design patterns and maintaining design systems across media queries.

Mastering Rem Units for Design System Consistency

While ems excel in component-level scaling, they can become unwieldy in complex, deeply nested layouts where multiple font-sizes create shifting em contexts. Enter rem units—short for root em—which provide the predictability of a consistent reference point throughout your entire document.

• Em units are relative to the current element's font-size, creating different values throughout your page hierarchy.
• Rem units are relative to the root element's font-size, maintaining consistent values regardless of nesting depth.

Since we haven't explicitly set a root font-size on this page, 1rem currently equals the browser's default 16px (or whatever the user has configured for accessibility purposes—a crucial consideration in modern web development).

1. Return to your code editor and the main.css file.

2. In the aside section p rule, convert the em unit to a rem unit by adding the "r" prefix:

   aside section p {
      font-size: 1rem;
      margin: 0;
      overflow: hidden;
   }

3. Similarly, update the h3 rule to use rem units:

   h3 {
      color: currentColor;
      font-size: 1.25rem;
      margin: 0 7px;
   }

4. Now let's establish explicit control over our root font-size. At the very top of the file, just above the body rule, add this foundational rule:

   :root {
      font-size: 1rem;
   }

   This establishes our base sizing for mobile and smaller screens, respecting user preferences while giving us a defined starting point.

   Notice we're using 1rem rather than a fixed pixel value. This approach honors users who have adjusted their browser's default text size for accessibility reasons. Using pixels here would override their preferences—a practice that's both disrespectful and potentially harmful to users with visual impairments. By using relative units (rem, em, or %), we create scalable designs that adapt to user needs while maintaining our intended proportional relationships.

5. For larger screens, we'll implement a more generous base size. Locate the media query for min-width: 930px near the bottom of the file and add this rule:

   @media (min-width: 930px) {
      :root {
         font-size: 1.25rem;
      }

   This creates a responsive typography system where desktop users see larger text by default. Assuming the standard 16px browser default, this sets our desktop base to 20px (1.25 × 16 = 20px), while smaller screens remain at 16px.

6. Save the file and reload the page in Chrome.

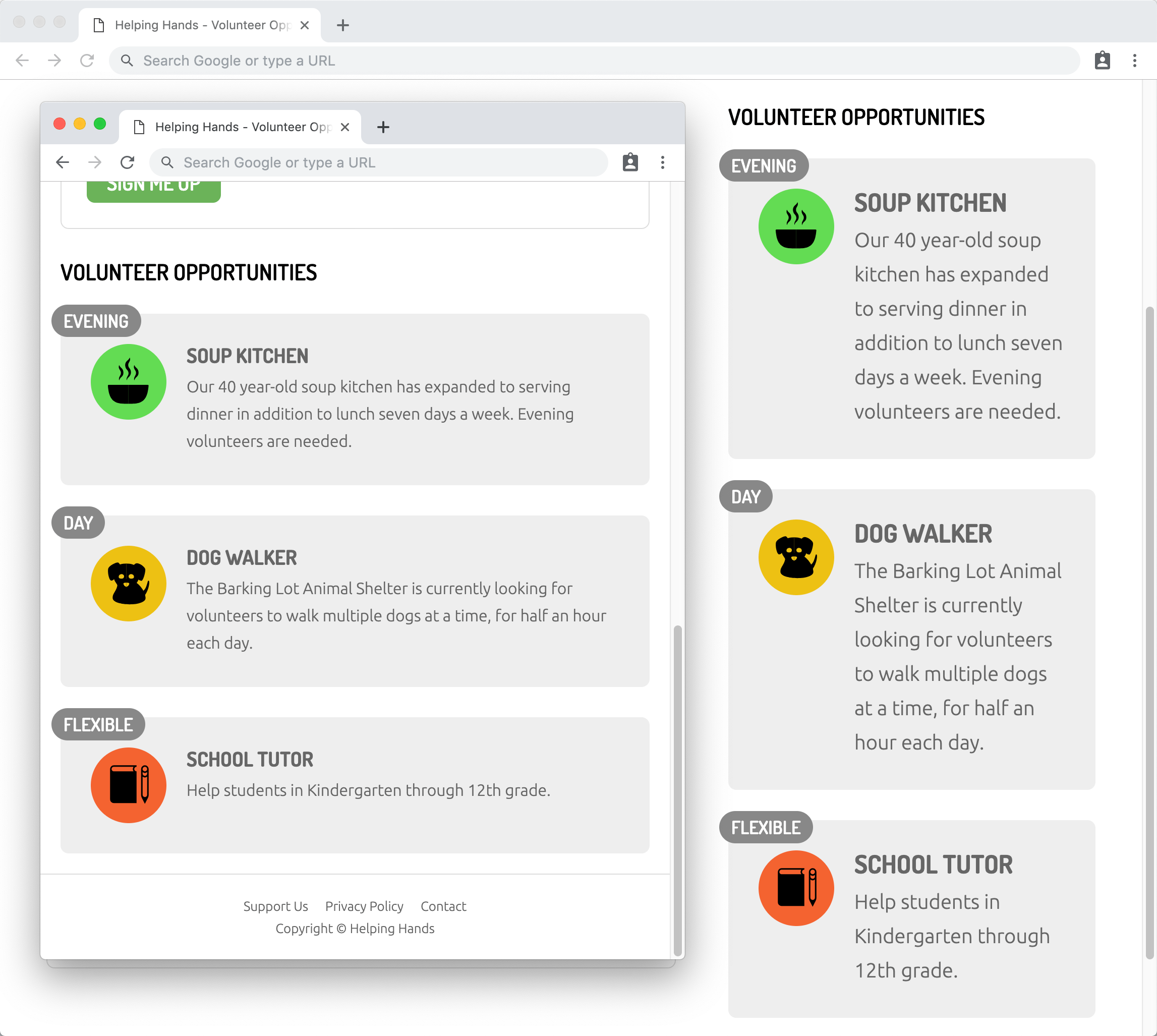

7. Resize the browser window between mobile and desktop widths to observe how the heading and paragraph text in the aside sections scales automatically. The rem-based typography now responds to both screen size and user preferences, creating a more sophisticated and accessible design system.
