CSS Position Property

Topics Covered in This HTML & CSS Tutorial:

The Static Value & the Normal Document Flow, the Relative Value, the Absolute Value, the Dynamic Duo: Relative Parent, Absolute Child, the Fixed Value

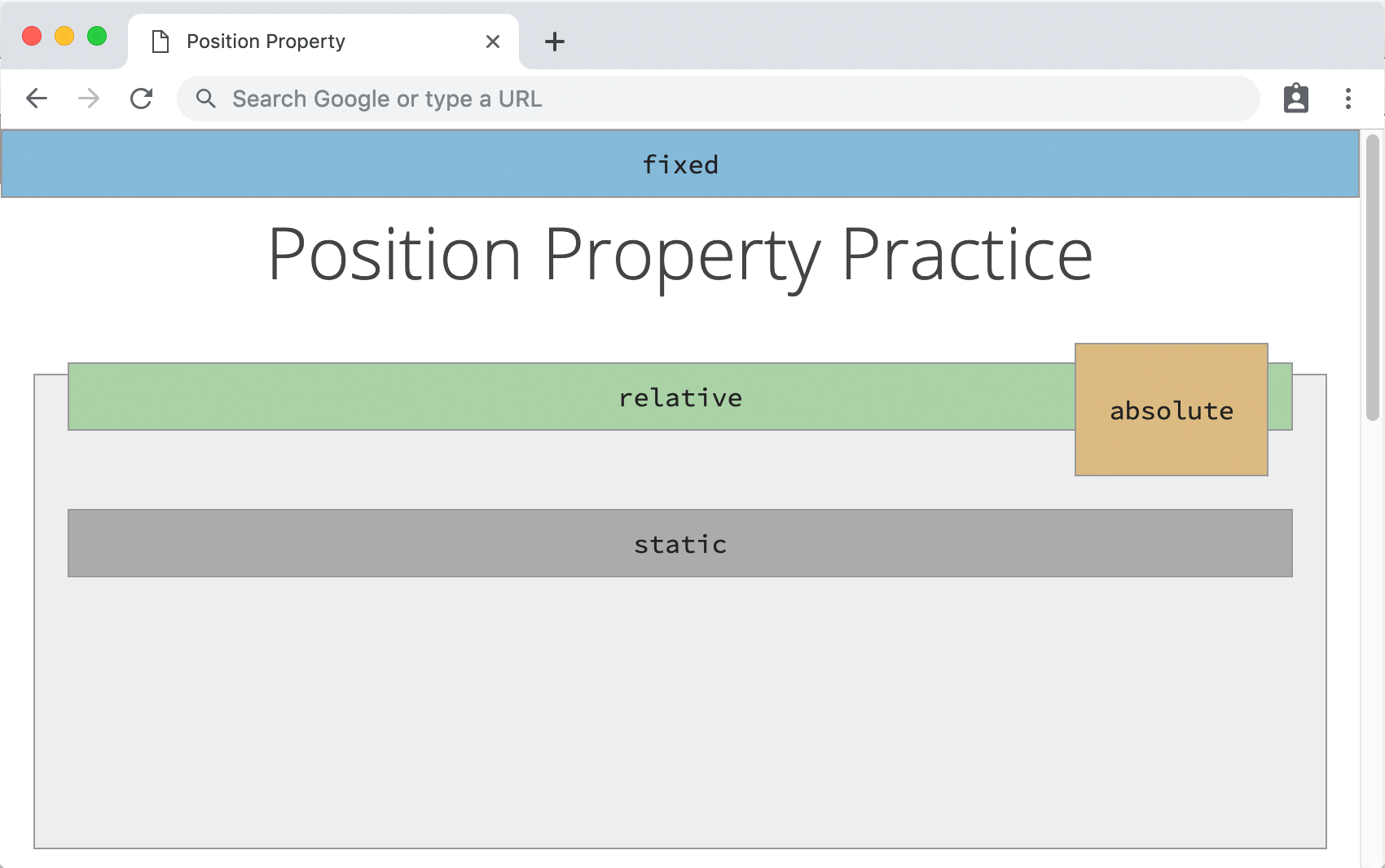

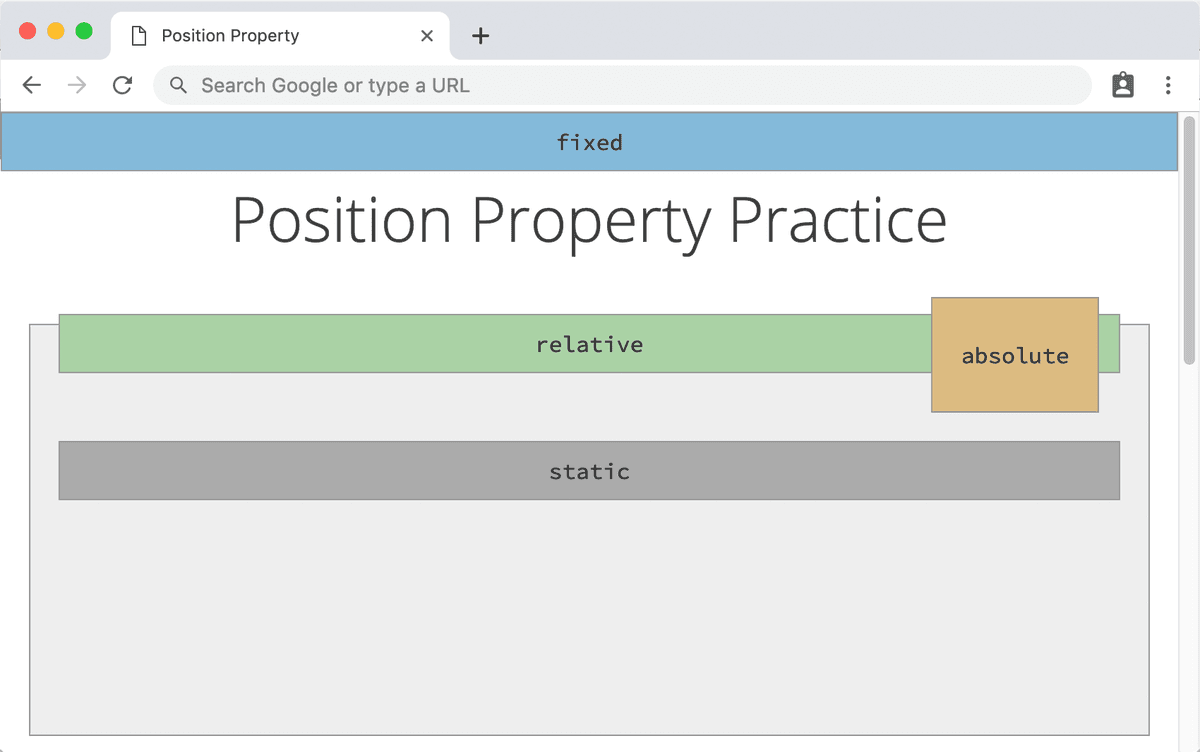

Exercise Preview

Exercise Overview

By default, browsers render page content sequentially, following the exact order specified in your HTML markup. This fundamental behavior—where elements flow naturally from top to bottom—is called the normal document flow. Understanding this concept is crucial for any developer looking to create sophisticated layouts.

While the CSS float property was historically used to break elements out of this normal flow, the position property offers far more precise control and flexibility. Mastering positioning unlocks advanced layout techniques that are essential for modern web development, from sticky navigation headers to overlay modals and complex component arrangements. This exercise will give you hands-on experience with each positioning value and demonstrate real-world applications you'll encounter in professional development.

The Static Value & the Normal Document Flow

1. In your code editor, close any files you may have open to start with a clean workspace.
2. For this exercise we'll be working with the Position Property folder located in Desktop > Class Files > Advanced HTML CSS Class. Open that folder in your code editor if it allows you to (like Visual Studio Code does). This approach keeps all related files organized and easily accessible.
3. Open position.html from the Position Property folder.

4. Preview the page in Chrome (we'll be using its DevTools for live testing and debugging).

   This page serves as an interactive playground designed to help you understand how each position value affects element behavior. You'll see immediate visual feedback as we modify positioning properties, making the learning process more intuitive.

5. Scroll down the page and examine the layout structure:

   • There are 3 parent divs, each styled with a light gray background and border to clearly define their boundaries.
   • Inside each parent div, you'll find 2 child divs: one with a distinctive color and another darker gray div labeled static. Currently, our CSS only specifies background colors for these child elements—no positioning has been applied yet.

   The darker gray child divs labeled static serve as our control elements, demonstrating the position property's default behavior. The static value is rarely declared explicitly since it's the default, but understanding it is crucial. Static elements follow the normal document flow based on markup order, creating predictable, reliable layouts. These elements will remain unchanged throughout our experiments, providing a consistent reference point as we manipulate their colorful siblings.

6. Now we'll explore how relative positioning differs from static. Keep the page open in Chrome—we'll be switching back and forth to see our changes in real-time.

Position: Relative

Relative positioning is often misunderstood by developers, but it's actually one of the most versatile positioning values. Let's explore how it works and why it's so useful in modern layouts.

1. Switch to your code editor.
2. Open main.css from the css folder (in the Position Property folder).

3. In the .relative-div rule that starts around line 26, declare a relative position:

   .relative-div {
      background: #aad2a6;
      position: relative;
   }

4. Save main.css.

5. Switch back to Chrome and reload position.html. Notice that nothing appears to have changed visually.

   This is the beauty of relative positioning—it's non-destructive by default. Simply declaring position: relative doesn't alter your layout, making it safe to apply without breaking existing designs. However, this declaration unlocks the ability to use offset properties (top, right, bottom, and left) that would otherwise have no effect on static elements. The term relative refers to how these coordinates are calculated—they're measured relative to where the element would naturally appear in the normal document flow.

6. To see relative positioning in action, let's apply a top offset. Switch back to main.css in your code editor.

7. Let's move the div down by 75 pixels by adding the following code to the .relative-div:

   .relative-div {
      background: #aad2a6;
      position: relative;
      top: 75px;
   }

8. Save main.css and reload position.html in Chrome. The relative div has shifted downward by 75 pixels and now overlaps the static div below it.

   Here's the key insight about relative positioning: elements move visually but maintain their original space in the document flow. Think of it as the element having a "phantom" presence at its original location while its visual representation appears elsewhere. Other elements continue to respect the original space, which is why the static div hasn't moved up to fill the gap. This behavior makes relative positioning ideal for subtle adjustments and animations where you don't want to disrupt the overall layout structure.

9. Let's examine this behavior more closely using Chrome's Developer Tools. CTRL–click (Mac) or Right–click (Windows) on the green relative bar and choose Inspect to open the DevTools.
10. In the Styles tab on the right, locate the .relative-div rule.

11. Try unchecking and rechecking the position: relative; declaration to observe how the element snaps back to its original position when static, then moves again when relative positioning is reapplied.

    Ensure the property is checked (enabled) before proceeding to the next step.

12. Click on the top property's value (75px) to select it.

13. Use the Up Arrow key to increase the value by 1 pixel increments, or hold Shift while pressing the Up Arrow to increase by 10-pixel increments. The Down Arrow key works similarly for decreasing values.

    Watch how the browser updates the element's position in real-time as you modify the value. This live editing capability in DevTools is invaluable for fine-tuning positioning. Try pushing the element far beyond its container boundaries—you'll see that relatively positioned elements can move anywhere on the page while still maintaining their document flow position.

14. Now let's experiment with horizontal positioning. In the Styles tab of the DevTools, click in the empty space below the top property declaration to create a new line for additional CSS.
15. Type left and press Tab, then type 100px.

16. Use the Up and Down Arrow keys to modify the left position and observe how the element moves horizontally.

Position: Absolute

While relative positioning is excellent for minor adjustments, absolute positioning is your tool of choice when you need complete freedom to place elements anywhere on the page. However, this power comes with important considerations about document flow and positioning context.

1. In Chrome, scroll down to the next section showing the absolute label.
2. Switch back to main.css in your code editor.

3. In the .absolute-div rule that starts around line 34, add the following code:

   .absolute-div {
      background: #dcbb81;
      position: absolute;
   }

4. Save main.css.

5. Switch back to Chrome and reload position.html.

   Notice two significant changes: the static div has moved up to occupy the space where the absolute div was positioned, and the absolute div has collapsed to fit only its content. This behavior occurs because absolutely positioned elements are completely removed from the normal document flow. Unlike relatively positioned elements that maintain their space, absolute elements leave no trace in the layout—other elements behave as if the absolute element doesn't exist. This removal from the flow also causes block-level elements to collapse to their content size, similar to floated elements.

6. Let's improve the visual appearance of our collapsed element. Switch back to main.css.

7. Even though absolutely positioned elements collapse, they retain their block-level properties, meaning you can still apply width, margin, padding, and other box model properties. Let's add some padding to make the element more readable:

   .absolute-div {
      background: #dcbb81;
      position: absolute;
      padding: 20px;
   }

8. Save main.css and reload position.html in Chrome. The element now has breathing room and appears more polished, though it hasn't moved from its current position yet.
9. Let's apply some positioning to move the element. Switch back to main.css in your code editor.

10. Add a top offset to move the element down:

    .absolute-div {
       background: #dcbb81;
       position: absolute;
       padding: 20px;
       top: 40px;
    }

11. Save main.css and reload position.html in Chrome. The absolute div seems to have disappeared completely.

12. Scroll to the very top of the page to find the missing div—it's now positioned 40 pixels from the top of the entire page, not from where it originally appeared in the layout.

The Dynamic Duo: Relative Parent, Absolute Child

The behavior you just observed reveals a fundamental principle of absolute positioning: these elements need a positioning context to determine where their coordinates are measured from. This concept is crucial for creating precise, maintainable layouts.

When you absolutely position an element, the browser searches up the DOM tree for the nearest ancestor element that has any position value other than static. If no such positioned ancestor exists, the browser uses the <html> element (the document root) as the positioning context. This is why our div appeared at the top of the page rather than where we expected it.

1. Return to your code editor to establish a proper positioning context.

2. The solution is to give a parent element a position value, creating a positioning context for our absolute element. Switch to position.html to identify the appropriate parent element.

3. Around lines 22–29, locate the markup structure for our current experiment:

   <div class="parent">
      <div class="absolute-div">
         absolute
      </div>
      <div class="static-div">
         static
      </div>
   </div>

   The .parent div is the perfect candidate to establish our positioning context. By making it the positioned ancestor, we can control exactly where our absolute element's coordinates are measured from.

4. Switch to main.css.

5. In the .parent rule that starts around line 19, add a position declaration:

   .parent {
      background: #eee;
      border: 1px solid #999;
      height: 250px;
      margin-top: 40px;
      padding: 20px;
      position: relative;
   }

   We're using position: relative here because it's the most practical choice for positioning contexts. Relative positioning creates the positioning context we need without affecting the parent's layout behavior—it stays exactly where it would naturally appear in the document flow. This "relative parent, absolute child" pattern is one of the most common and useful techniques in CSS layout.

6. Save main.css and reload position.html in Chrome. Perfect! The absolute div now appears 40 pixels from the top of its parent container, exactly as intended.
7. Let's experiment with different positioning values. Switch back to main.css in your code editor.

8. Modify the .absolute-div's top coordinate:

   .absolute-div {
      background: #dcbb81;
      position: absolute;
      padding: 20px;
      top: 0;
   }

9. Save main.css and reload position.html in Chrome. Now the absolute div's top edge aligns perfectly with its parent's top edge, demonstrating precise positioning control.

10. Use Chrome's DevTools to experiment further with the .absolute-div's positioning properties. Try adding a left property, or experiment with right and bottom coordinates to see how they affect positioning relative to the parent container.

Position: Fixed

Fixed positioning represents the most specialized positioning type, designed specifically for elements that should remain visible regardless of page scrolling. This technique has become increasingly important in modern web design, particularly for navigation headers, floating action buttons, and persistent UI elements.

Unlike other positioning values that can be influenced by parent elements, fixed positioning always references the viewport (the browser window itself). This makes fixed elements completely independent of page content and scrolling behavior—they're essentially "glued" to the browser window.

1. In Chrome, scroll down to the final section of the page labeled fixed.
2. Switch back to main.css in your code editor.

3. Locate the .fixed-div rule around line 41 and add the positioning declaration:

   .fixed-div {
      background: #84bada;
      position: fixed;
   }

4. Save main.css and reload position.html in Chrome. Like with absolute positioning, the static div moves up to fill the space, and the fixed div seems to vanish.

5. The fixed element hasn't disappeared—it's been removed from the document flow and positioned relative to the viewport, but without coordinates, it may not be visible in the current view.

   Fixed elements require explicit positioning to be useful. Since they're positioned relative to the viewport, you need to specify where exactly they should appear within the browser window.

6. Switch back to main.css in your code editor.

7. Position the .fixed-div at the very top of the browser window:

   .fixed-div {
      background: #84bada;
      position: fixed;
      top: 0;
   }

8. Save main.css and reload position.html in Chrome. The element now appears at the top of the browser window.

9. Scroll through the page to observe the fixed element's behavior—it remains perfectly stationary while all other content moves beneath it.

   This scroll-independent behavior is what makes fixed positioning invaluable for persistent UI elements. However, like absolutely positioned elements, fixed elements collapse to their minimum required size. Let's transform this into a proper fixed header that spans the full browser width—a common pattern in modern web design.

10. Back in main.css, extend the element to fill the browser width:

    .fixed-div {
       background: #84bada;
       position: fixed;
       top: 0;
       left: 0;
       right: 0;
    }

    By setting both left: 0 and right: 0, we're telling the element to stretch from the left edge of the viewport to the right edge, effectively creating a full-width header.

11. Save main.css and reload position.html in Chrome. You now have a professional-looking fixed header that stays visible during scrolling—a technique used by countless modern websites for navigation bars, notification banners, and other persistent interface elements.
