The Line Command in AutoCAD

Master AutoCAD's fundamental drawing tool for precision drafting

What You'll Master

Line Command Fundamentals

Learn to create precise straight lines using AutoCAD's primary drawing tool. Master both mouse and keyboard input methods for professional drafting.

Command Line Navigation

Understand how AutoCAD's command interface works. Discover how to read prompts and options for efficient workflow management.

Coordinate System Basics

Practice entering precise coordinates and measurements. Build foundation skills for complex technical drawings and blueprints.

Topics Covered in This AutoCAD Tutorial:

Master the fundamentals of the Line Command — the cornerstone of precise technical drawing

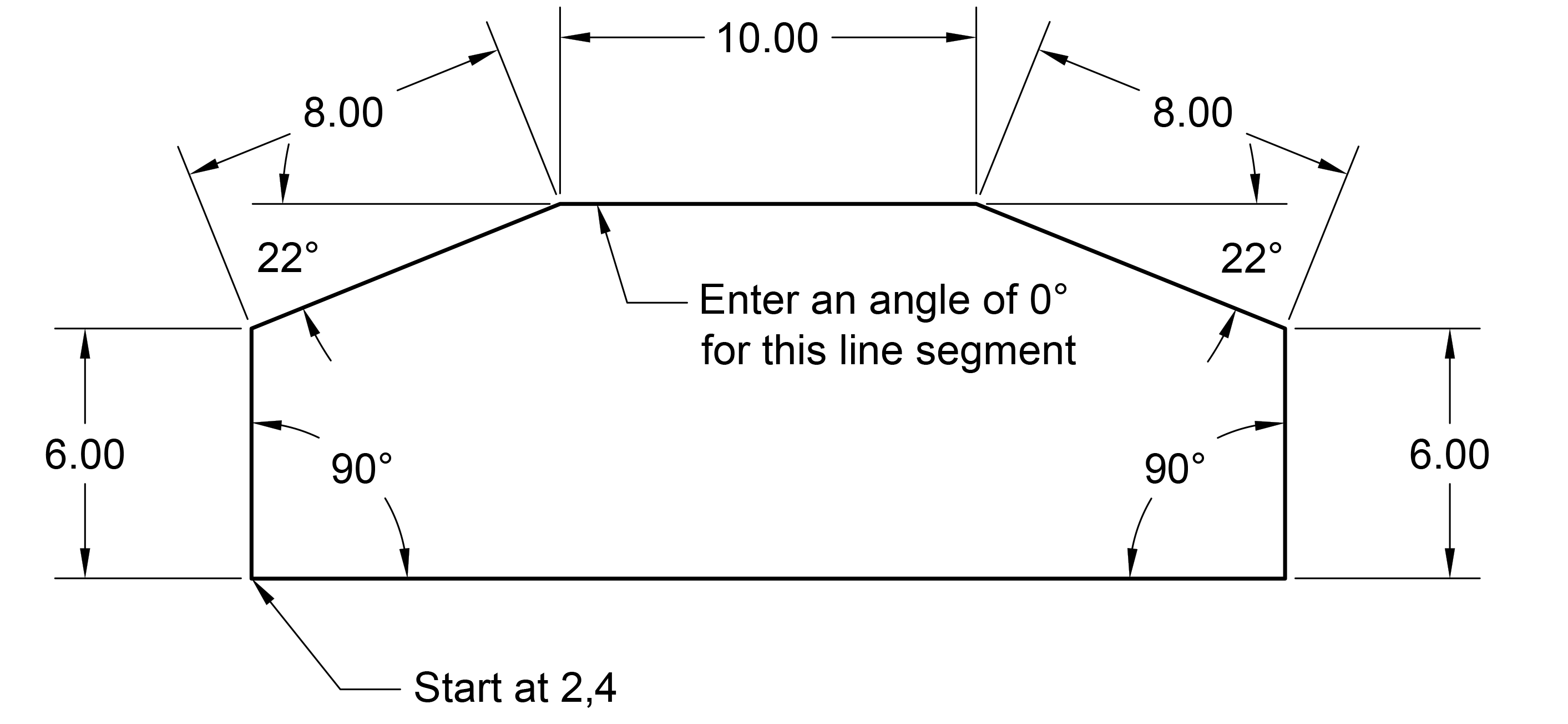

Exercise Preview

ex preview line command

Exercise Goal

You'll create a complete geometric shape using precise measurements and angles, demonstrating real-world drafting techniques used by professionals.

Exercise Overview

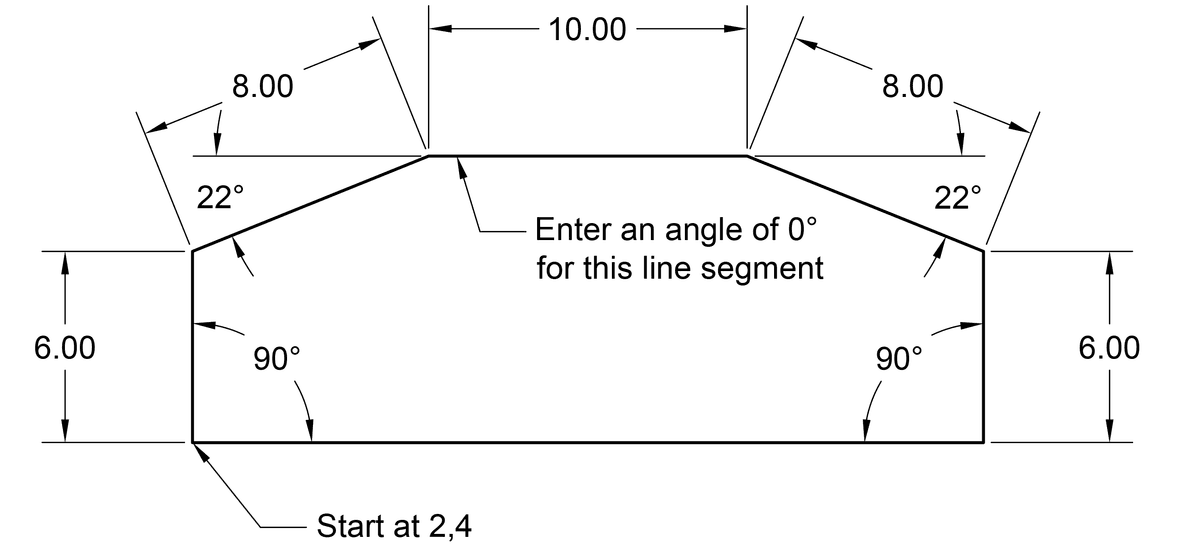

The Line Command forms the foundation of virtually every technical drawing you'll create in AutoCAD. In this comprehensive exercise, you'll master the precise art of drawing straight lines using coordinate input, distance specifications, and angular control. More importantly, you'll develop fluency with AutoCAD's Command Line interface — a skill that separates efficient professionals from casual users. By the end of this tutorial, you'll understand how professional drafters achieve pixel-perfect accuracy in their technical drawings, creating the geometric shape shown above with mathematical precision.

Getting Started

Let's establish your workspace and prepare AutoCAD for precision drawing. These initial steps ensure you're working with optimal settings from the start.

  1. If AutoCAD isn't already open, launch it now.
  2. You should see the Start tab with its familiar interface.

  3. Click on the large Start Drawing button to create a new document.

    A fresh Drawing1 tab will open, ready for your work. AutoCAD drawing files use the industry-standard .dwg file format and are built upon Drawing Template files (.dwt). While we'll use the default template for this exercise, understanding template customization becomes crucial as you advance in your AutoCAD proficiency — we'll explore this powerful feature in upcoming lessons.

Initial Setup Process

1

Launch AutoCAD

Open the application and navigate to the Start tab interface

2

Create New Drawing

Click the Start Drawing button to open a new Drawing1 tab with default template

3

Configure Status Bar

Disable Polar Tracking and ORTHOMODE by ensuring they're not highlighted in blue

Using the Line Command

Now we'll dive into the practical application of AutoCAD's most fundamental drawing tool. Pay careful attention to the Command Line feedback — this real-time communication with AutoCAD is essential for professional-level precision.

  1. Direct your attention to the Status Bar in the lower right corner of your screen.

    This control panel houses toggle buttons for AutoCAD's most frequently used drafting aids. When active, these buttons display a distinctive blue highlight. Understanding these tools transforms your drawing efficiency, but for now we need a clean slate to learn fundamental line creation.

  2. Ensure both Polar Tracking polar tracking button and ORTHOMODE ortho tracking button are disabled (not highlighted in blue). If either shows blue highlighting, click to deactivate it. These powerful drafting aids will be covered thoroughly in our next exercise, where you'll discover how they accelerate professional workflow.
  3. Initiate your first line by clicking the Line tool line tool button in the Ribbon panel at the top of your screen.

  4. Notice how selecting the tool immediately activates the Command Line panel at the bottom of your screen.

    Status Bar Configuration

    Always check the Status Bar settings before starting. Disabled Polar Tracking and ORTHOMODE give you full control over line direction and angles.

    Key Interface Elements

    Ribbon Panel

    Located at the top of the screen, contains the Line tool as the first option. This is your primary tool palette for drawing commands.

    Status Bar

    Found in the lower right corner with blue highlighting for active features. Controls drawing aids and precision tools.

The Command Line

The Command Line serves as AutoCAD's primary communication hub — think of it as an ongoing conversation between you and the software. Every mouse click, keyboard input, and tool selection appears here, along with current command status and available options. Professional AutoCAD users develop the habit of constantly monitoring this feedback. This awareness dramatically improves accuracy, reduces errors, and reveals advanced options that casual users often miss. Master the Command Line, and you'll work with the confidence of a seasoned professional.

  • AutoCAD drawing commands typically begin by requesting a starting point. While clicking with your mouse provides approximate coordinates, professional work demands precision through direct coordinate entry:

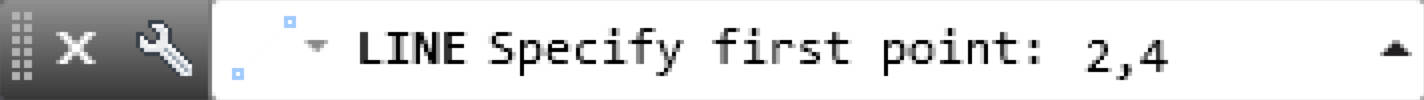

    Establish the foundation point for our geometric shape by typing the precise coordinates. Press 2, then comma (, ), then 4 to input 2,4 in the command line:

    line starting point

  • Press Enter to confirm and apply these starting coordinates.

  • Move your mouse cursor upward to establish the directional intent for your next line segment.

    IMPORTANT: AutoCAD requires directional input before accepting distance and angle values. This mouse movement doesn't determine the final line direction — it simply tells AutoCAD which quadrant you're working toward. Think of it as pointing AutoCAD in the right neighborhood before providing exact specifications.

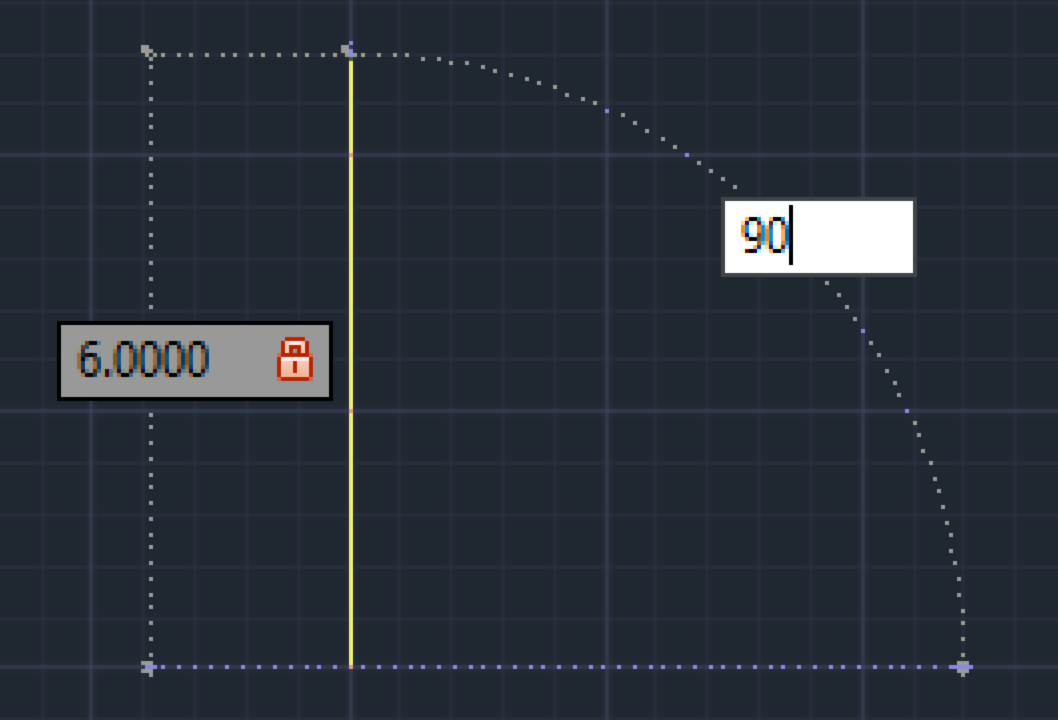

  • Specify the exact line length by typing 6, then press Tab to advance to the angle input field.

    first line segment

  • For a perfectly vertical line, enter 90 degrees and press Enter. Congratulations — you've just created your first precisely controlled line segment using professional coordinate input methods!

  • Continue building the geometric shape with the angled top-left corner segment:

    • Point your cursor toward the right to indicate general direction.
    • Type 8 units for the distance measurement.
    • Press Tab to move to the angle field.
    • Enter 22 degrees for the precise angle.
    • Press Enter to complete this line segment.

  • Create the horizontal top edge of your shape:

    • Move your cursor toward the right.
    • Input 10 units for distance.
    • Press Tab to access the angle field.
    • Enter 0 degrees for a perfectly horizontal line.
    • Press Enter to finish this segment.

  • Add the angled top-right corner with these specifications:

    • Point your cursor toward the right.
    • Type 8 units for distance.
    • Press Tab to advance to angle input.
    • Enter 22 degrees.
    • Press Enter to complete the segment.

  • Form the vertical right edge of your geometric shape:

    • Direct your cursor downward.
    • Input 6 units for distance.
    • Press Tab for angle specification.
    • Enter 90 degrees for perfect vertical alignment.
    • Press Enter to finish this segment.
  • Complete your shape efficiently using AutoCAD's Close function. In the Command Line, click Close to automatically draw the final horizontal segment and simultaneously end the Line Command.
  • Excellent work! You've successfully created a precise geometric shape using professional coordinate input methods. Preserve your work by navigating to File > Save As.
  • Browse to your Class Files > AutoCAD Class directory.

  • Save the file as my first line drawing.dwg and click Save.

    • Command Line Mastery

    The Command Line shows your current command, its stage, and available options. Paying attention to this panel is essential for AutoCAD proficiency.

    Drawing the Complete Shape

    1

    Set Starting Point

    Type coordinate 2,4 and press Enter to establish the precise starting location

    2

    First Vertical Line

    Move cursor upward, enter distance 6, press Tab, enter angle 90 degrees, press Enter

    3

    Angled Corner

    Move cursor right, enter distance 8, press Tab, enter angle 22 degrees, press Enter

    4

    Horizontal Top

    Move cursor right, enter distance 10, press Tab, enter angle 0 degrees, press Enter

    5

    Complete and Close

    Continue with remaining segments, then use Close option to finish the shape automatically

    Coordinate Input Methods

    Pros
    Typing coordinates provides exact precision for technical drawings
    Distance and angle inputs ensure consistent measurements
    Tab key efficiently switches between distance and angle fields
    Close command automatically completes shapes and ends the command
    Cons
    Mouse clicking alone lacks precision for professional work
    Requires cursor direction indication before entering values
    Must remember to press Enter after each segment completion

    Essential Workflow Steps

    0/4

    Key Takeaways

    1The Line Command is AutoCAD's fundamental drawing tool, accessed through the Ribbon panel and controlled via the Command Line interface
    2Precise coordinate entry using format like 2,4 provides exact starting points for professional technical drawings
    3Distance and angle inputs require cursor direction indication first, followed by numerical values separated by Tab key
    4The Command Line displays current command status, available options, and guides users through each step of the drawing process
    5Status Bar settings like Polar Tracking and ORTHOMODE should be configured appropriately before beginning drawing tasks
    6The Close option automatically completes shapes and ends the Line Command, ensuring proper geometry closure
    7Professional AutoCAD workflow combines precise numerical input with visual cursor direction for optimal control
    8Proper file management includes using descriptive names and saving to organized folder structures like Class Files
