The AutoCAD Interface for Mac-Quick Reference Guide

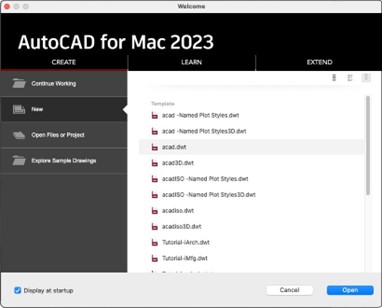

Welcome Screen

When you launch AutoCAD on macOS, you're greeted with a welcome screen that serves as your gateway to new projects. The interface prompts you to select a template file as the foundation for your new drawing—a mandatory step that ensures proper setup from the start. AutoCAD will automatically highlight your most recently used template, streamlining your workflow for consistent projects. The default acad.dwt template provides a clean slate with decimal Imperial units, the standard layer (0), and no pre-formatted layouts—giving you complete control to establish your own standards. For those who prefer to dive straight into work, unchecking "Display at Startup" will launch AutoCAD directly with a new drawing based on the acad.dwt template, eliminating the selection step entirely.

AutoCAD welcome screen" class="bordered" style="width: 500px">

Keyboard and Mouse

Transitioning from PC to Mac requires understanding the fundamental input differences, though AutoCAD maintains remarkable consistency across platforms. The key mappings follow standard macOS conventions that experienced users will recognize immediately.

The Enter key on PC becomes Return on Mac—a straightforward swap for command execution and dialog confirmation.

Ctrl functions are handled by the Cmd key on Mac, maintaining the familiar modifier key workflows you rely on.

Alt operations translate to the Option key, preserving essential shortcuts for advanced commands.

However, there's one crucial exception: the Properties Palette shortcut remains Control+1 on both systems, not Cmd+1. This Windows-centric behavior reflects AutoCAD's cross-platform heritage and is worth memorizing to avoid frustration.

---

For mouse configuration, single-button setups can substitute Control+Click for right-click functionality, but this approach hampers productivity. Professional CAD work demands configuring your mouse for proper two-button operation within macOS system preferences. The mouse wheel functionality is integral to AutoCAD's navigation system, including the often-overlooked middle-click capability that activates pan mode instantly.

While trackpad gestures can technically operate AutoCAD, they're inadequate for professional work. Invest in a quality mouse with a physical scroll wheel rather than touch-sensitive alternatives—the tactile feedback and precise control are essential for complex drafting tasks, especially during extended design sessions.

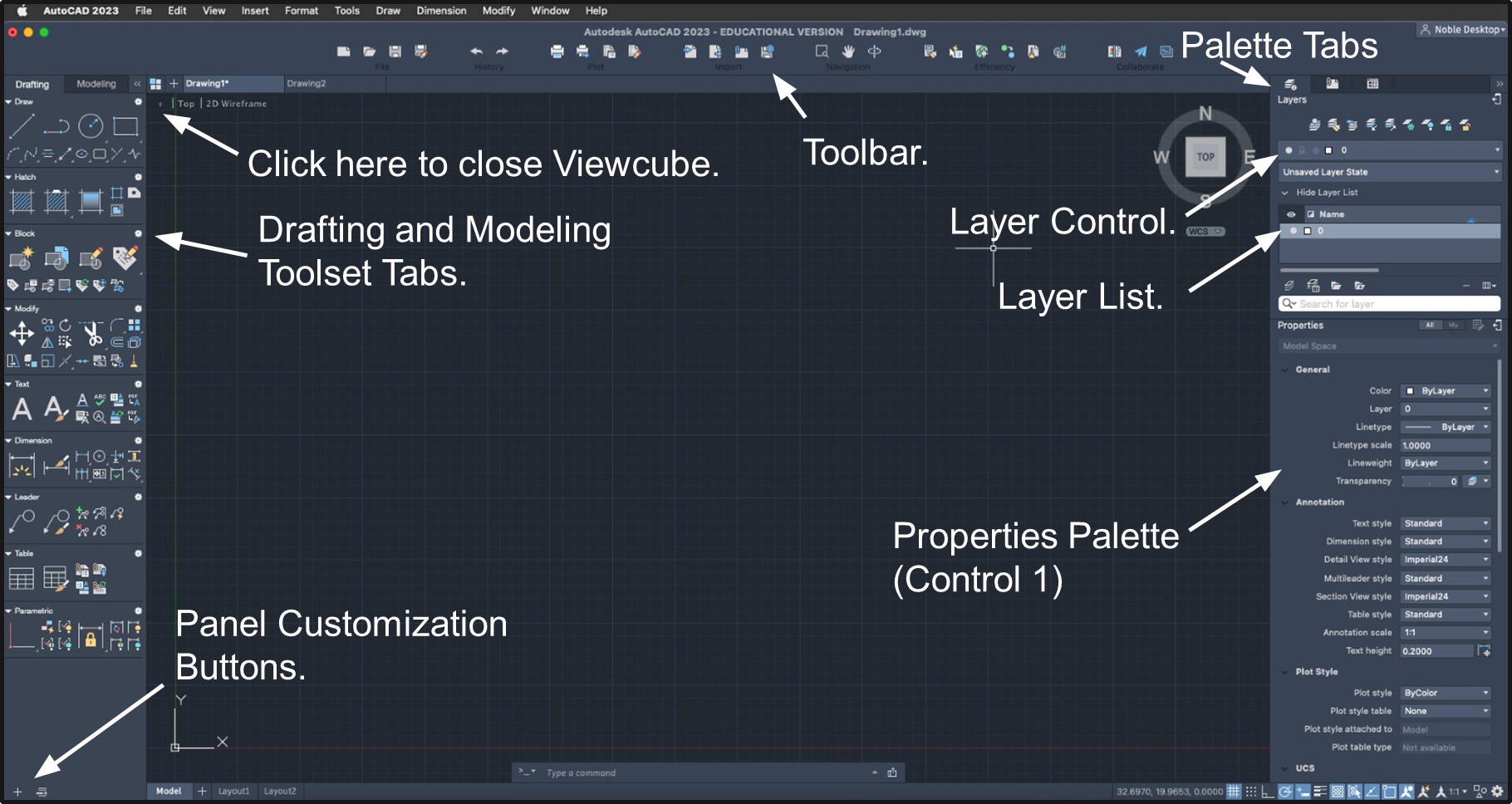

Toolbar, Toolset Tabs, Palette Tabs, and Screen Layout

AutoCAD for Mac reimagines the traditional ribbon interface through a streamlined approach that maximizes screen real estate while maintaining tool accessibility. Understanding this layout is crucial for efficient workflow management.

• The Toolbar spans horizontally across the top, housing frequently accessed commands and tools. This persistent interface element ensures your most critical functions remain visible regardless of active tabs or panels, reducing the clicks needed for common operations.
• The Toolset Tabs occupy the left panel and serve as Mac's equivalent to PC ribbon tabs. While the panels mirror their Windows counterparts in functionality, they're consolidated for efficiency. Some tools have migrated between panels—for instance, the Centerline Tool appears in the Draw Panel rather than having its own dedicated Centerlines Panel. The Drafting Tab handles 2D operations, while the Modeling Tab manages 3D workflows, though most architectural and engineering work focuses primarily on the drafting environment.
• The Palette Tabs anchor the right side of your workspace, emphasizing settings and properties management over tool access. The Layers and Properties tab centralizes object control, while the Reference Manager handles external references (XREF)—though many firms now favor direct collaboration methods. The Blocks palette streamlines symbol management. Within the Layer Palette, two distinct dropdown menus serve different purposes: the Layer Control menu handles current layer settings and object layer assignments, while the Layer List functions as your comprehensive Layer Properties Manager for creating, naming, and configuring layer properties.

Familiar elements like the Menu Bar, File Tabs, Layout Tabs, Command Line, and Status Bar maintain their core functionality with subtle macOS styling refinements. The key difference lies in accessing advanced options: Status Bar buttons require right-clicking to reveal configuration menus for Object Snaps, Polar Tracking angles, and other settings that PC users access through dropdown arrows. This approach keeps the interface clean while preserving full functionality.

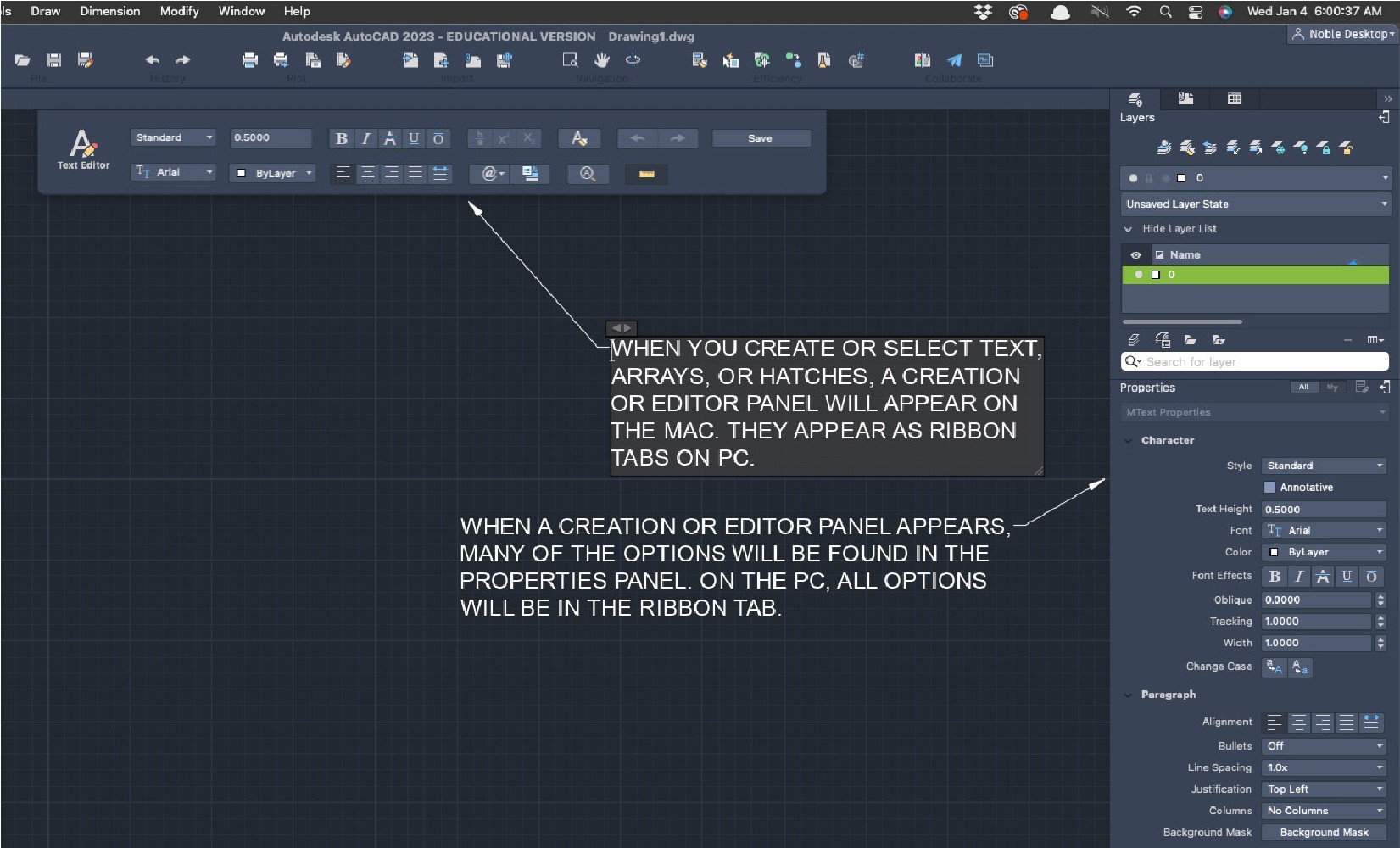

Creation/Editor Panels

---

AutoCAD for Mac employs dynamic contextual panels that appear automatically when creating or selecting specific object types. This intelligent interface adaptation presents relevant tools and settings precisely when needed, reducing interface clutter during routine operations. However, the Mac version distributes object properties between these contextual panels and the Properties Palette, requiring users to check both locations for complete control—unlike the PC version where all options consolidate within the panels. This split approach, while initially confusing, becomes second nature with practice and actually provides better organization for complex objects with extensive property sets.

Features Not Available on Mac

(Relevant to Professional Practice - Not a Complete List)

While AutoCAD for Mac delivers robust functionality, certain features remain Windows-exclusive, impacting specific workflows and requiring alternative approaches for Mac-based practices.

• Tool Palettes — The comprehensive system for inserting and customizing blocks, hatches, lights, and materials. Mac users must rely on the Design Center equivalent or develop custom block libraries through other methods.
• Design Center — The centralized content browser for accessing drawing elements across projects. This limitation particularly affects firms with extensive standard detail libraries.
• Data Extraction — Automated tools for generating schedules and reports from drawing data. Mac workflows require manual compilation or third-party solutions for complex data analysis.
• Workspaces — Customizable interface configurations for different disciplines or project types. Mac users cannot save and switch between tailored tool arrangements, impacting workflow optimization.
• Set to ByLayer (setbylayer) — The automated command for resetting object properties to layer defaults, requiring manual property adjustment on Mac.
• Freeze in All Viewports Except Current (layvpi) — Advanced layer management for complex layouts with multiple viewports, limiting Mac users' control over sophisticated presentation drawings.

Common Issues in AutoCAD for Mac

Despite ongoing development, AutoCAD for Mac exhibits specific behavioral quirks that can disrupt productivity if not anticipated and managed properly.

The Match Layer (laymch) command demonstrates inconsistent behavior when working with blocks, often matching to internal block reference layers rather than the target layer where the block resides. This technical limitation can scatter blocks across unintended layers, requiring careful verification after layer matching operations. The Select Similar command provides an effective workaround for identifying and correcting misplaced blocks, though it adds steps to what should be a straightforward process.

The Array tool struggles with architectural unit recognition, specifically failing to interpret foot marks (') in Imperial architectural drawings. When specifying row and column spacing, you must convert measurements to inches—entering 360 instead of 30', or 240 instead of 20'. This limitation affects architectural workflows significantly and requires mental conversion during array operations, though many users develop templates with pre-calculated inch values to streamline the process.

---
